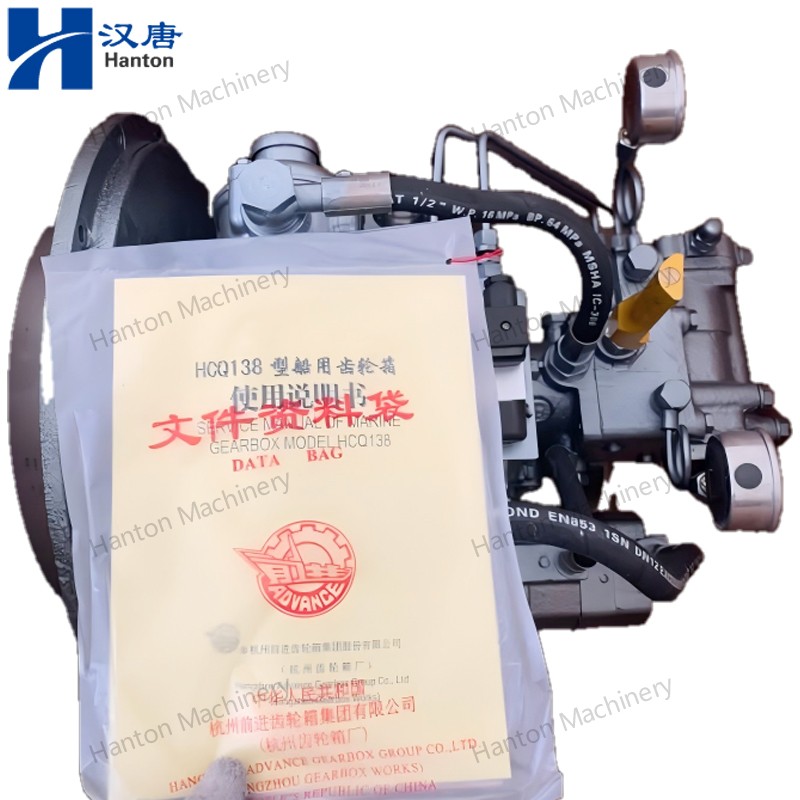

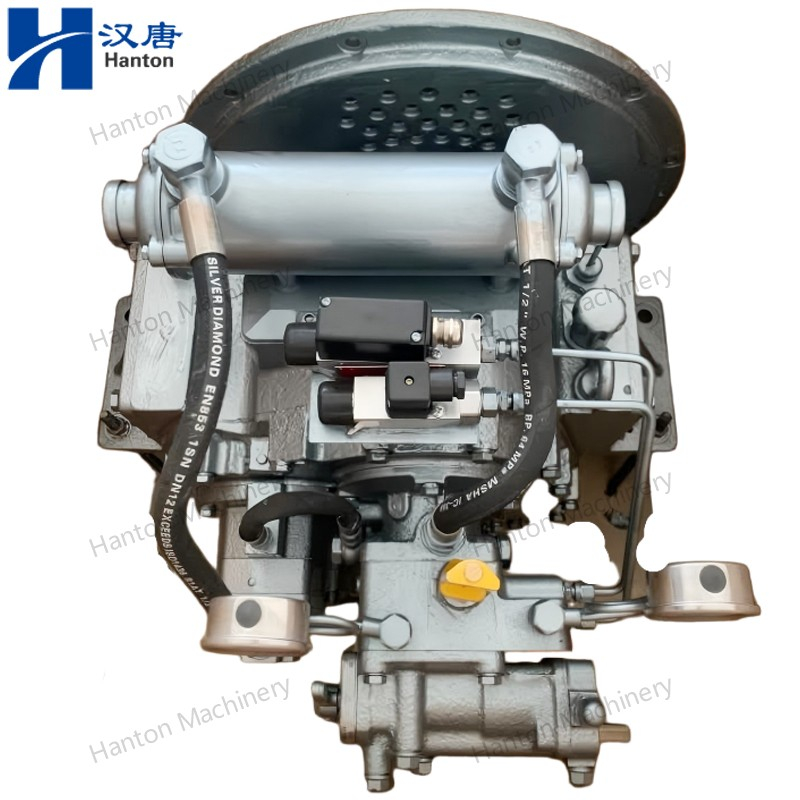

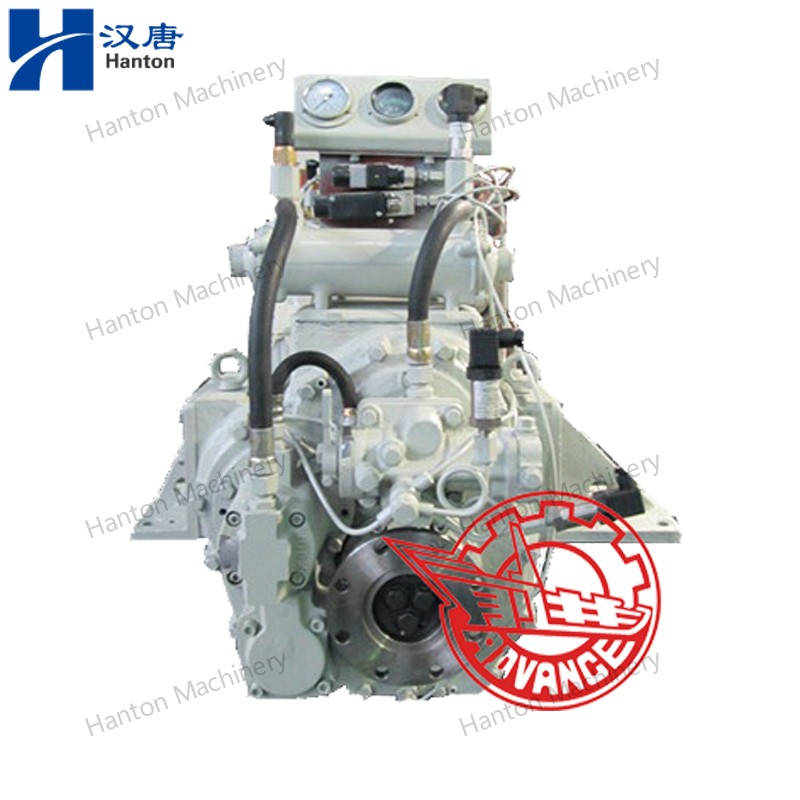

Advance HCq138 Reduction Gearbox Series for Boat And Ship Main Propulsion

RPM input

1000rpm - 2600rpm

Center distance

165mm

Rated propulsion

25KN

Reduction ratio

1.03

1.25

1.50

2.03

2.48

2.95

Transmitting capacity (kw/rpm)

0.11

0.098

Overall dimensions

504mm * 619mm * 616mm

Net dry weight

240kg

Flywheel (flange)

SAE 14inch, 11.5 inch

Flywheel (bell) housing

SAE 1#, 2#, 3#

Options/comments

Mechanical or electrical remote control device

Application

Yacht, traffic boat, passenger ship, fast ferry

Maximum Power Input

286kw 389hp 2600rpm
