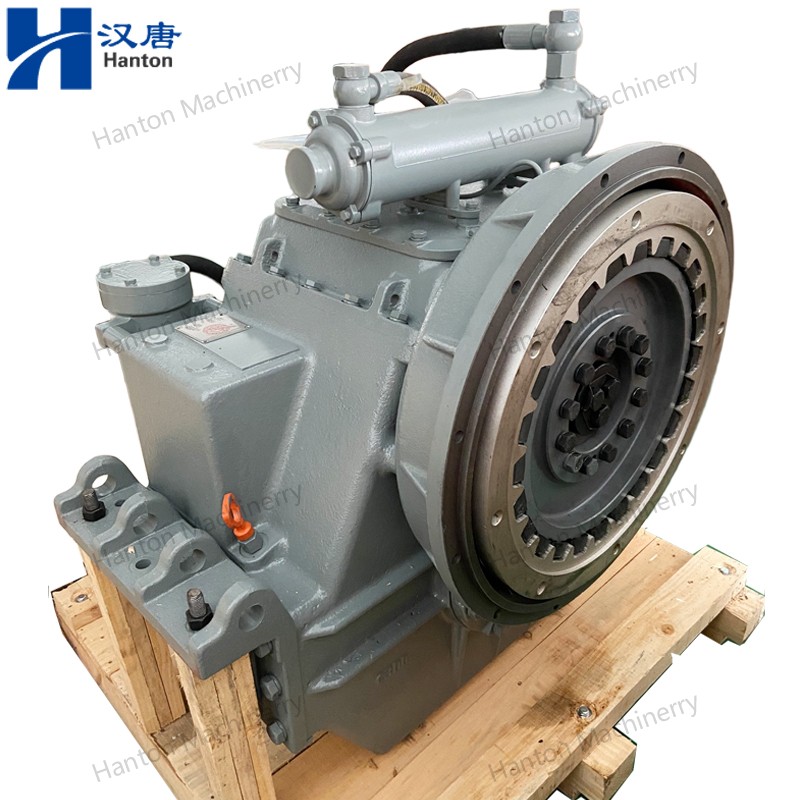

Advance HC300 Marine Reduction Gearbox Seris for Boat And Ship Main Propulsion

Application

Marine

RPM input

700-2500rpm

Center distance

264mm

Rated propulsion

50KN

Reduction ratio [ X:1]

1.5

1.87

2.04

2.23

2.54

3

3.53

4.1

4.47

4.61

4.94

5.44

Transmitting capacity (kw/rpm)

0.257

0.2

0.184

0.147

0.13

Overall dimensions

680 * 930 * 880mm

Net dry weight

680kg

Flywheel (flange)

SAE 18inch, 16inch, 14inch, 12V135, 12V150

Flywheel (bell) housing

SAE 0#, 1#, 12V135, 12V150

Operation Control

Manual push and pull flexible shaft, electrical, pneumatic

Max Engine Power

642kw 873hp 2500rpm
