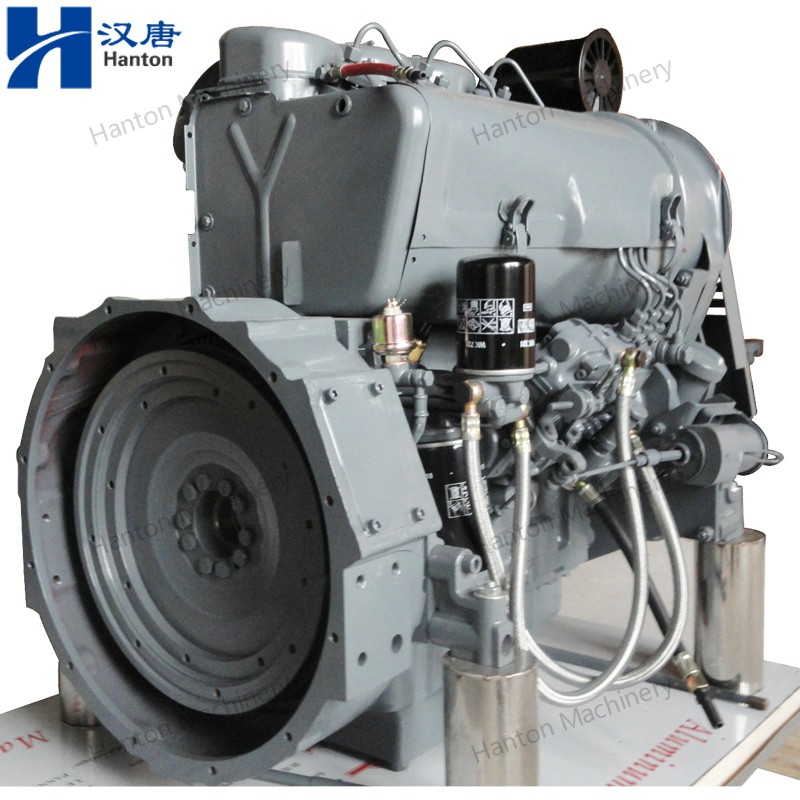

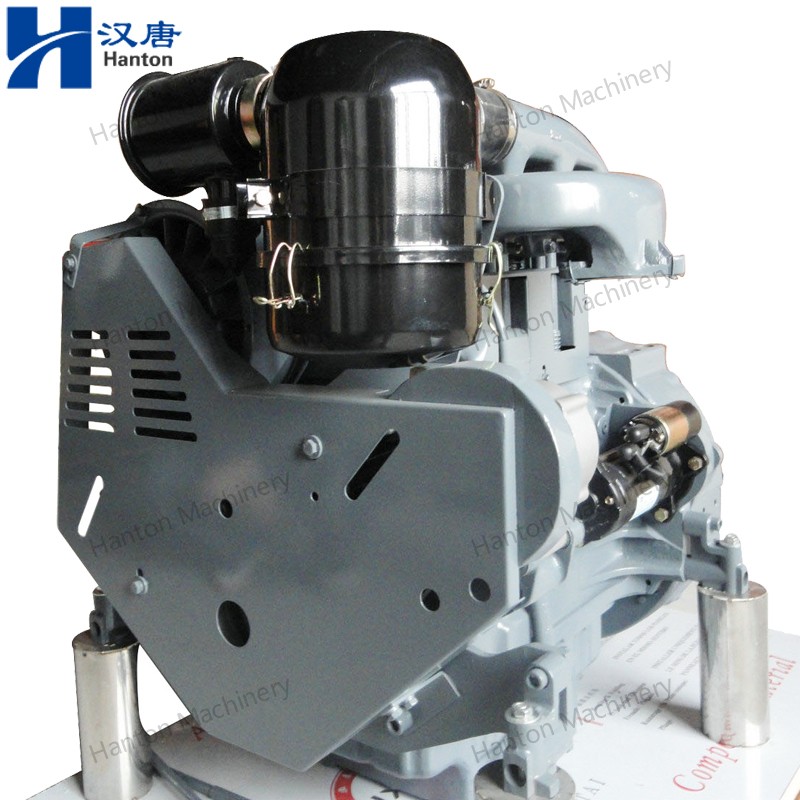

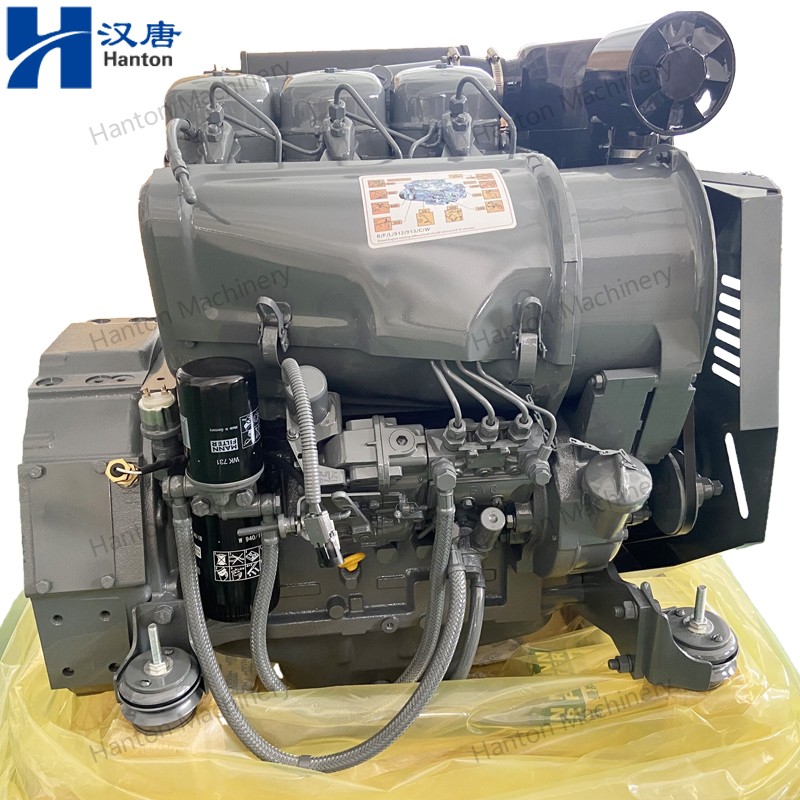

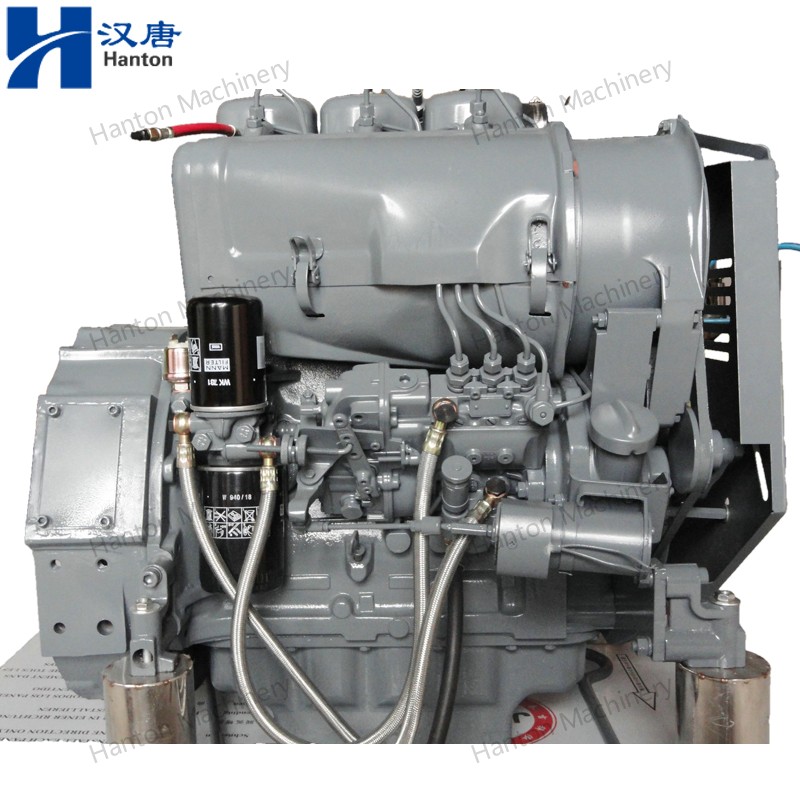

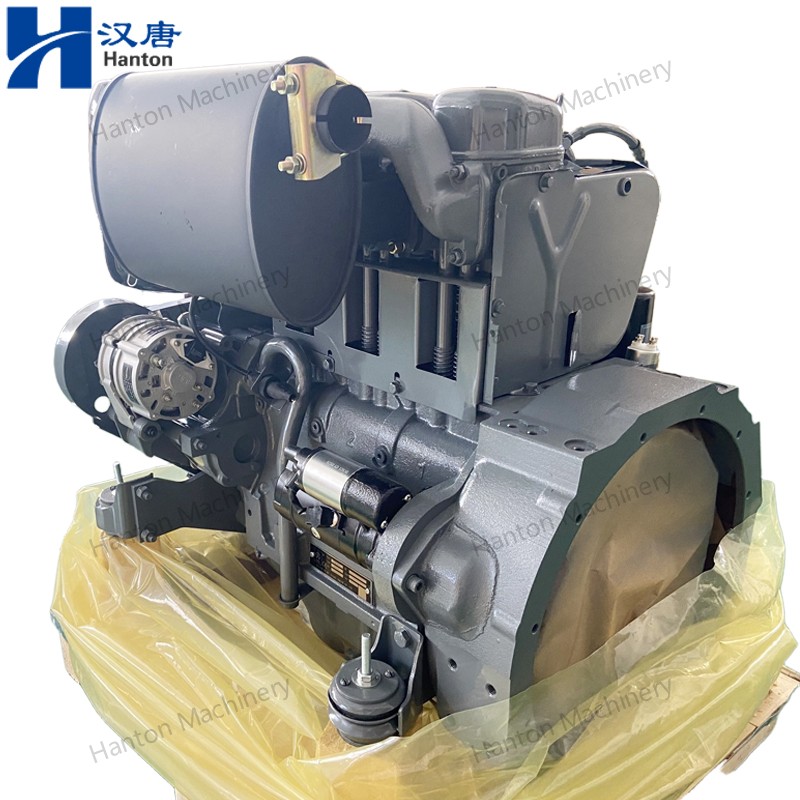

Beinei Deutz F3L912 Series Air Cooling Engine for Generator Set And Industrial Equipments

Beinei Deutz F3L912 Series Air Cooling Engine for Generator Set And Industrial Equipments, power from 24kw 1500rpm to 38kw 2500rpm, net 275kg, packing 730*673*815mm, 100*120mm, 2.828L, 3 cylinders inline.

Model:
F3L912
Brand:
Beinei
Code:
HMF3L912

Availability:

Quantity:



Inquire Add to Basket

Product Description

Beinei Deutz F3L912 Series Air Cooling Engine for Generator Set And Industrial Equipments, with detailed specifications, in below:

Model	F3L912
Descriptions	Air-cooling, 3 cylinders in line, 4 stroke, natural aspiration
Ignition Order	1-2-3
Bore * Stroke	100mm * 120mm
Displacement	2.828 L (173 in³)
Rated Speed	1500rpm	1800rpm	2300rpm	2500rpm
Rated Power	24kw (33hp)	29kw (40hp)	36kw (49hp)	38kw (52hp)
Peak Torque	193 N.m (142 lb.ft) 1600rpm
Net Dry Weight	275kg
Overall Dimension	730mm * 673mm * 815mm

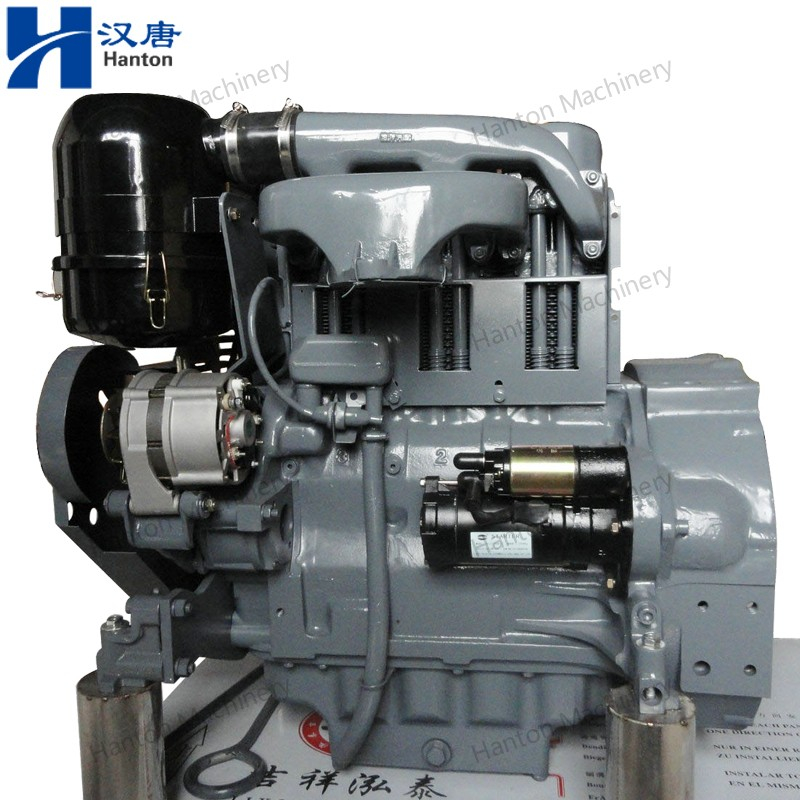

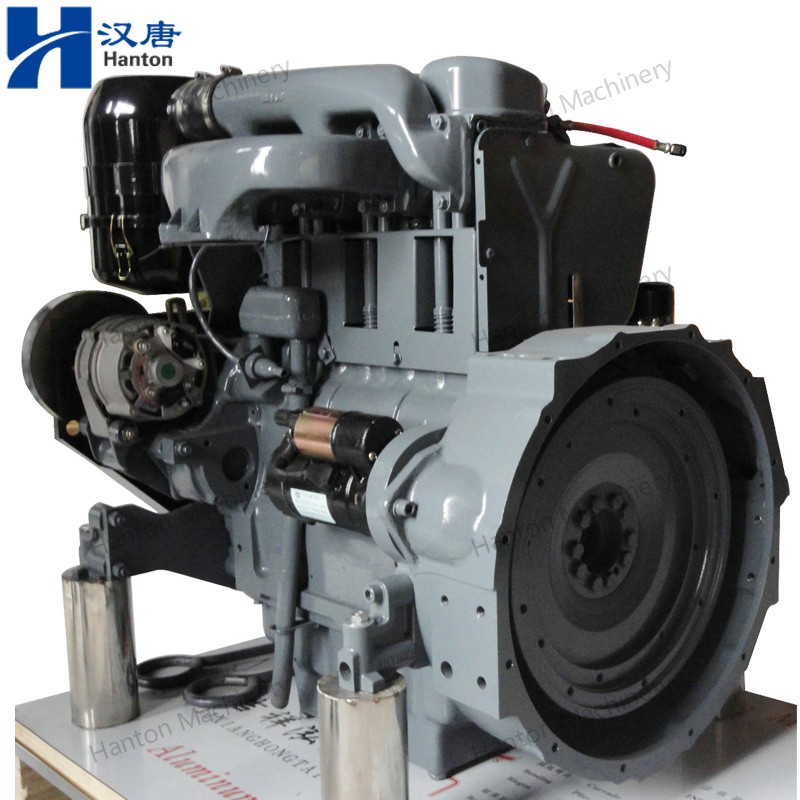

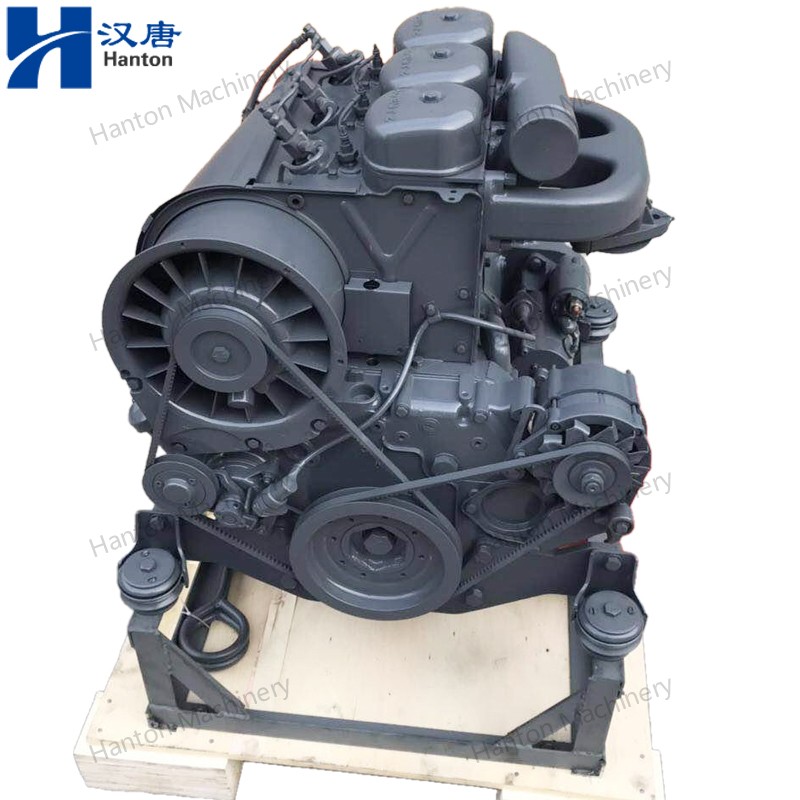

F3L912 800X800 watermark -001 F3L912 800X800 watermark -002 F3L912 800X800 watermark -003 F3L912 800X800 watermark -004 F3L912 800X800 watermark -005 F3L912 800X800 watermark -006

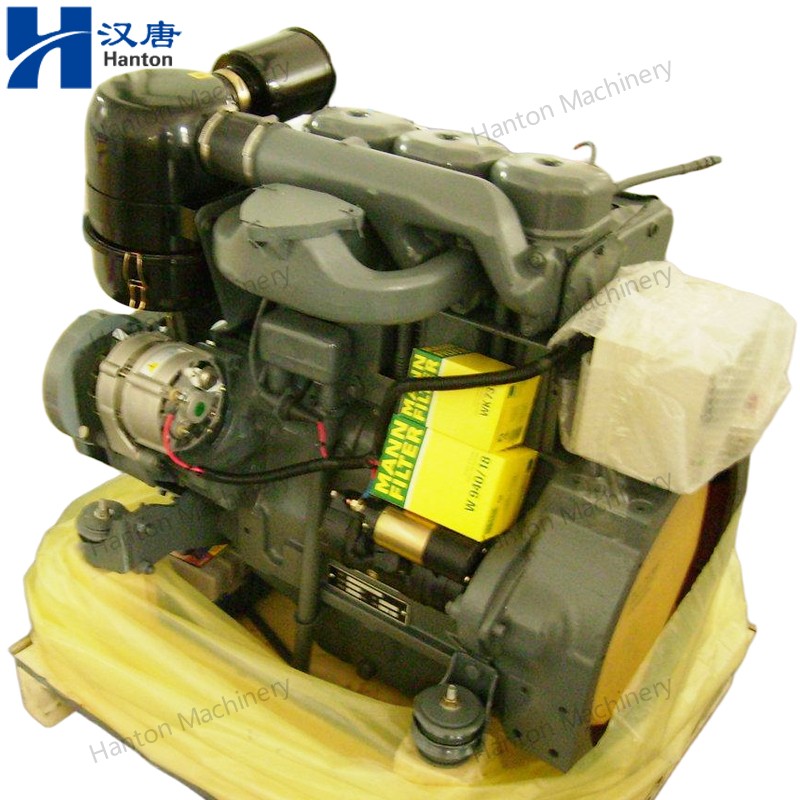

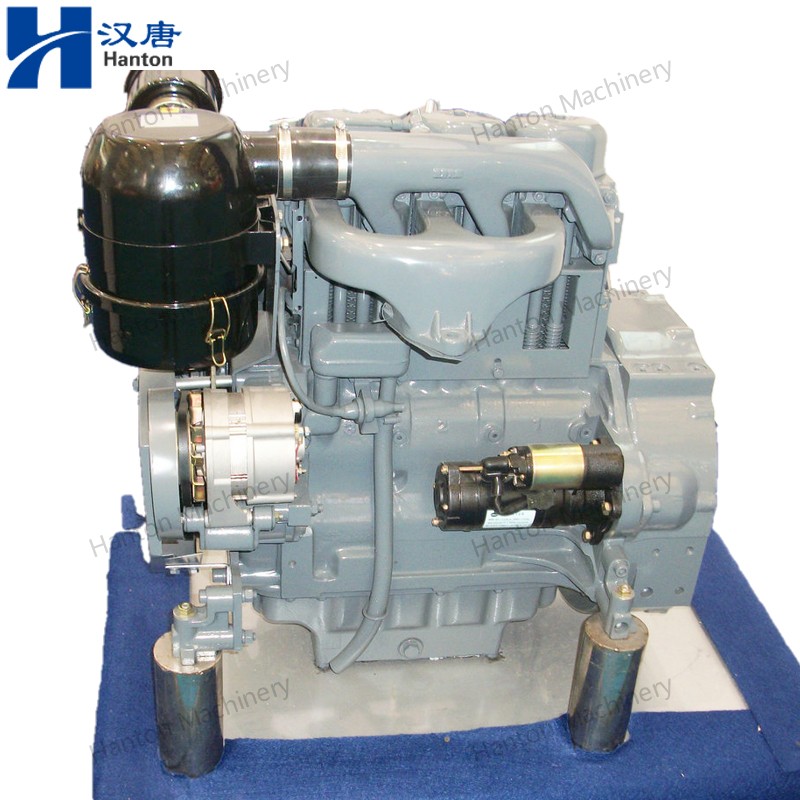

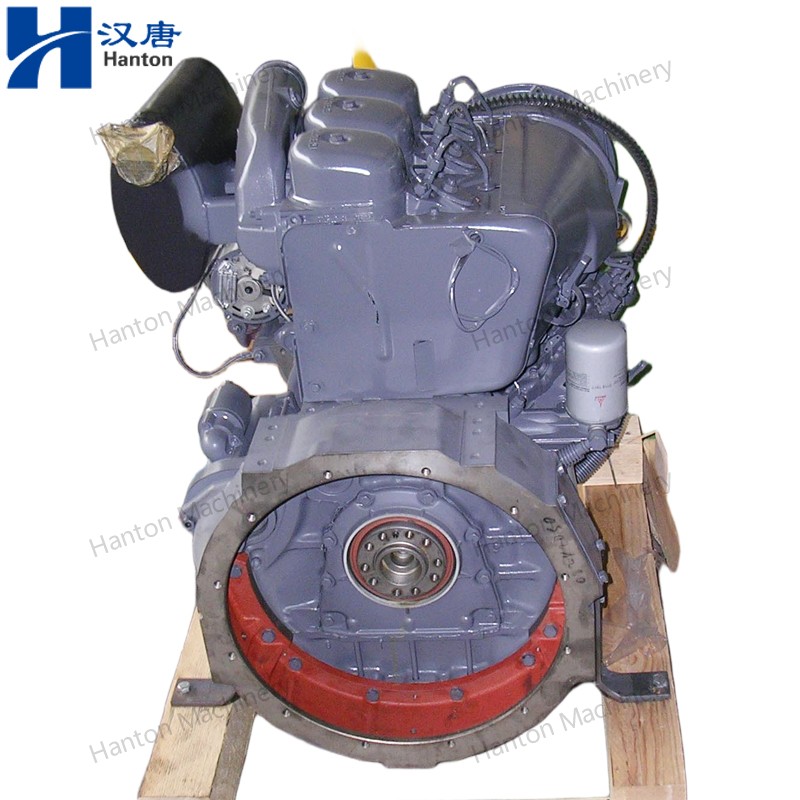

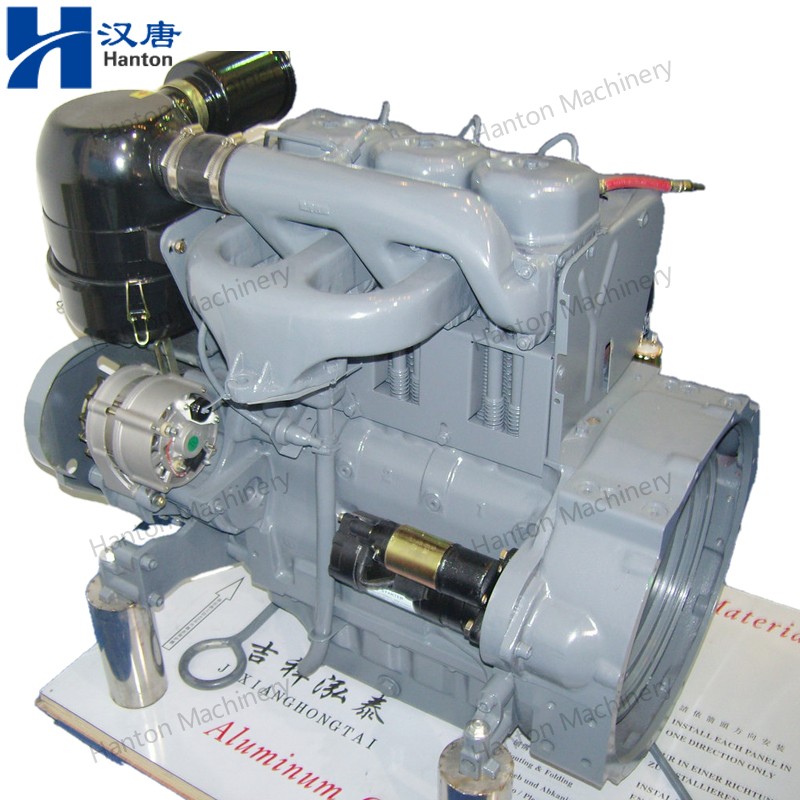

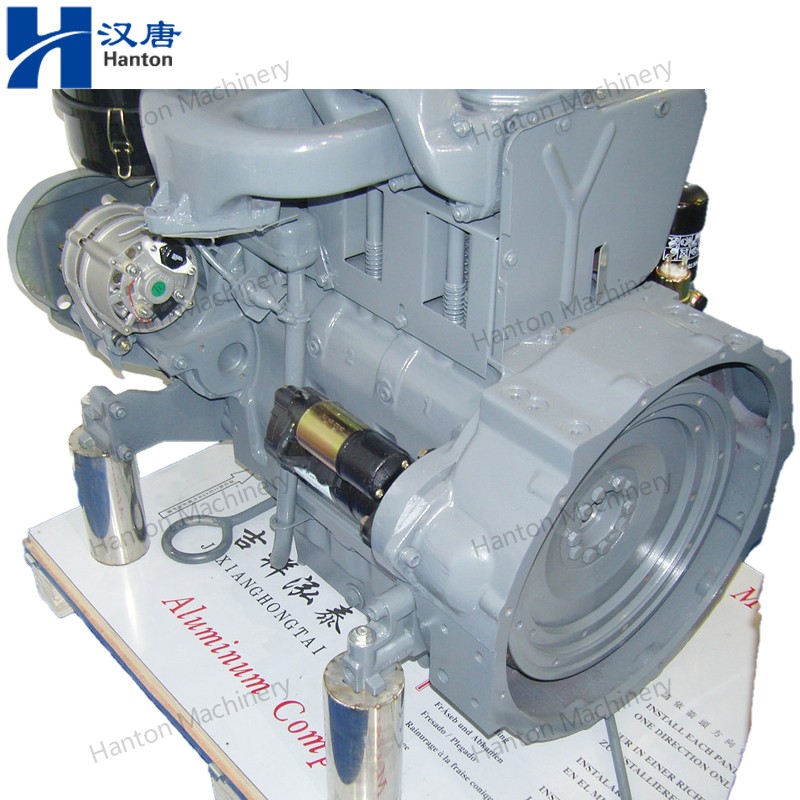

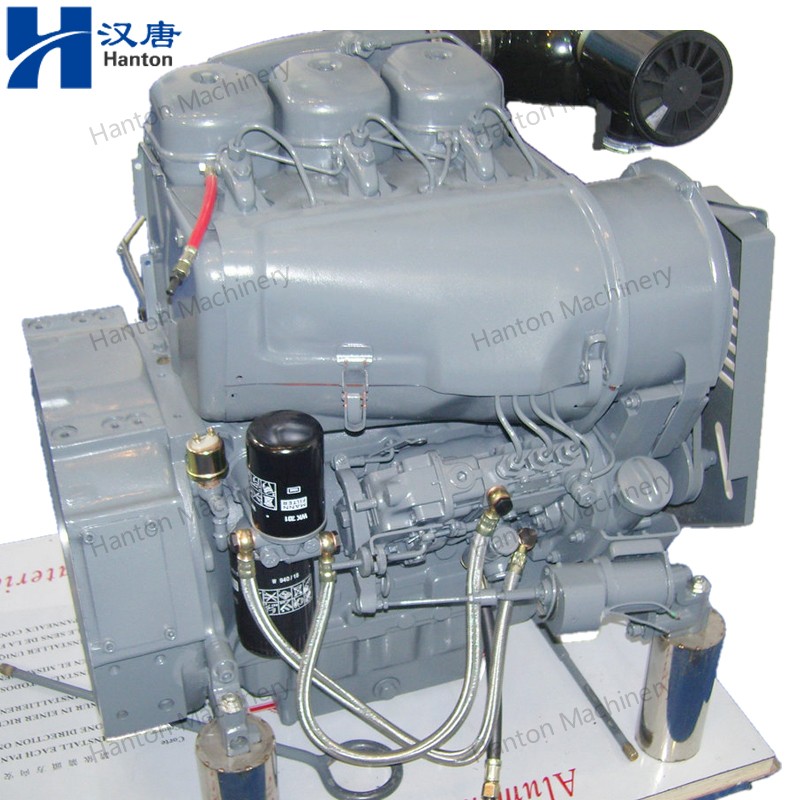

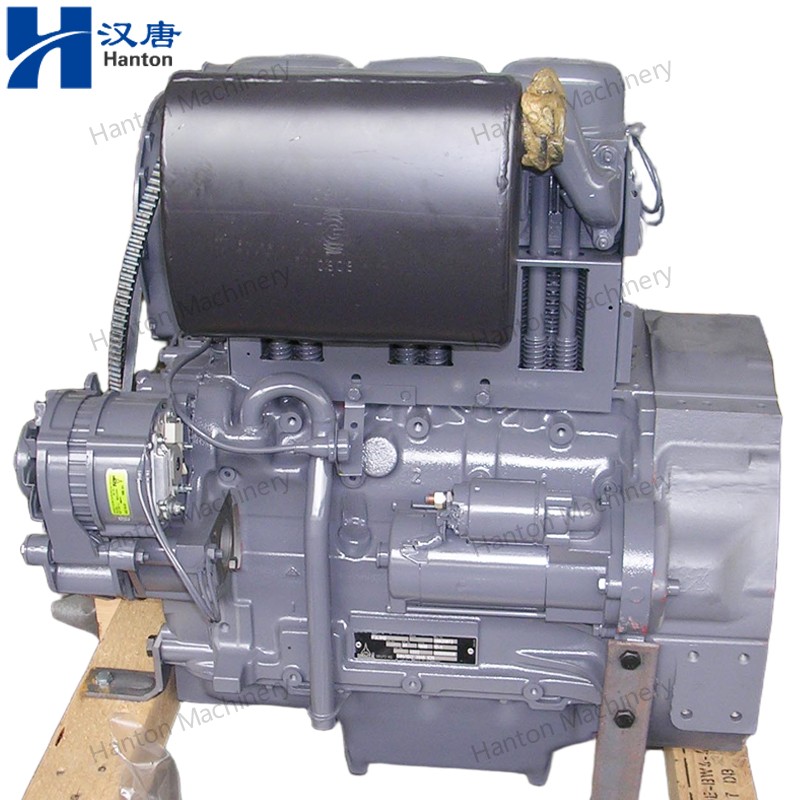

F3L912 800X800 watermark -007 F3L912 800X800 watermark -008 F3L912 800X800 watermark -009 F3L912 800X800 watermark -010 F3L912 800X800 watermark -011 F3L912 800X800 watermark -012 F3L912 800X800 watermark -013
