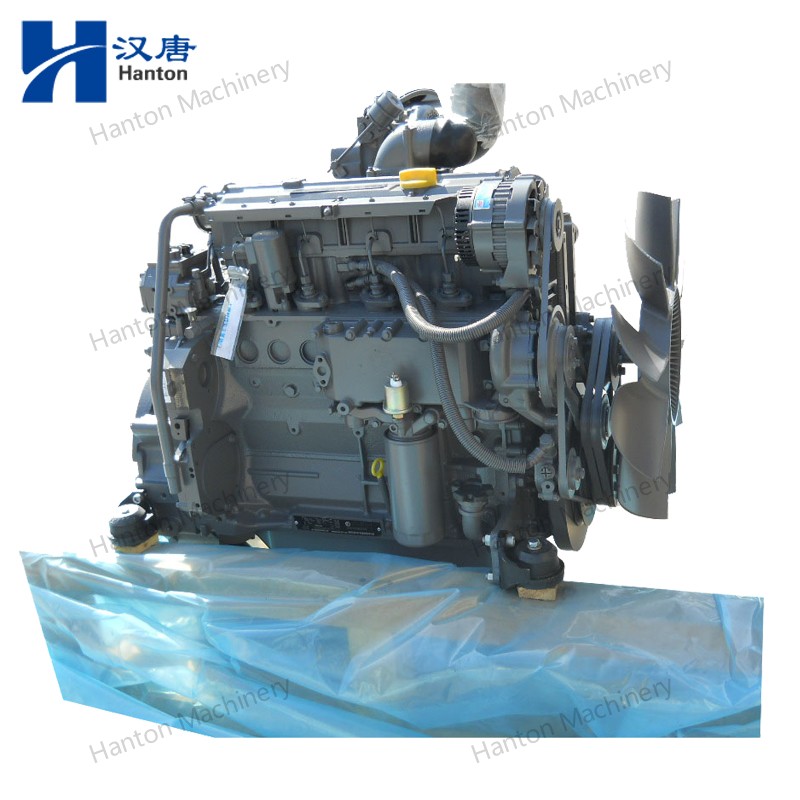

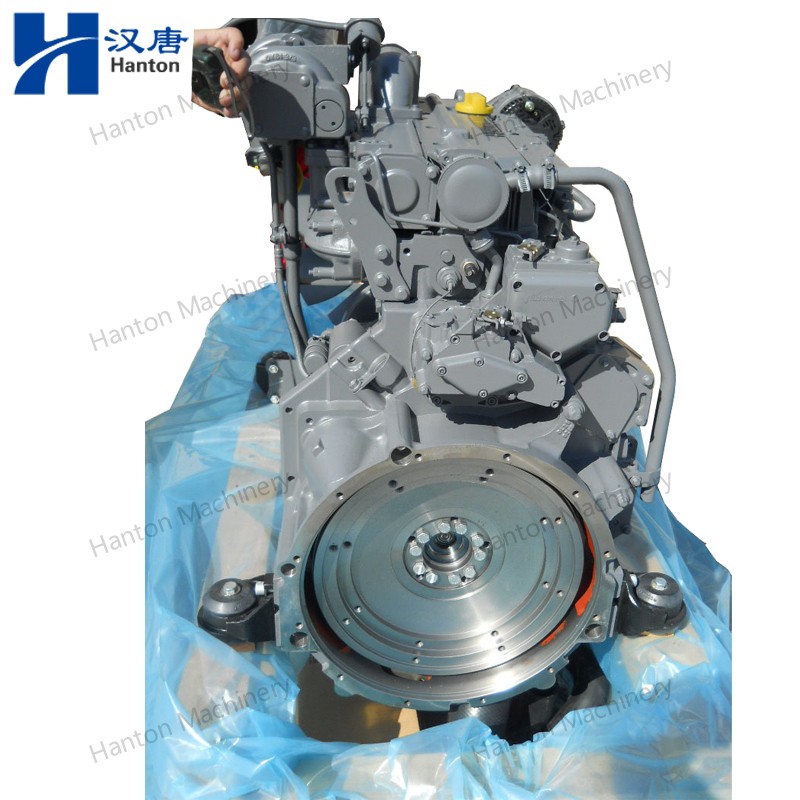

Deutz Diesel Engine BF4M1013 Series for Truck And Industrial Equipment

Descriptions

4 stroke, water-cooling, 4 cylinders in line, turbocharged, air-air aftercooled

Bore * Stroke

108mm * 130mm

Displacement

4.764 L ( 290.7 in³ )

Rated Speed (KW/HP/RPM)

117/159/2300

125/170/2300

132/180/2300

140/190/2300

Peak Torque

580N.m 1400rpm

620N.m 1400rpm

650N.m 1400rpm

700N.m 1400rpm

Fuel Consumption

193 g/kw.h

Net Dry Weight

520 kg

Overall Dimension

913mm * 600mm * 950mm

Speed control

mechanical / unit fuel pump

Emission

Euro II, Euro III

Suitable bus length

7 - 11 m

Suitable construction use

6 - 20 ton
