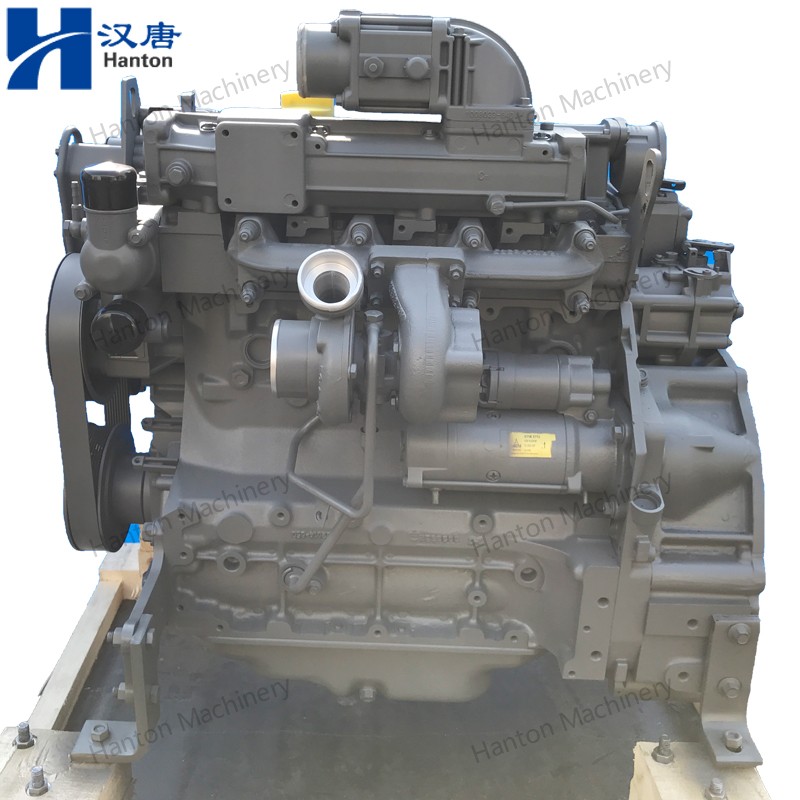

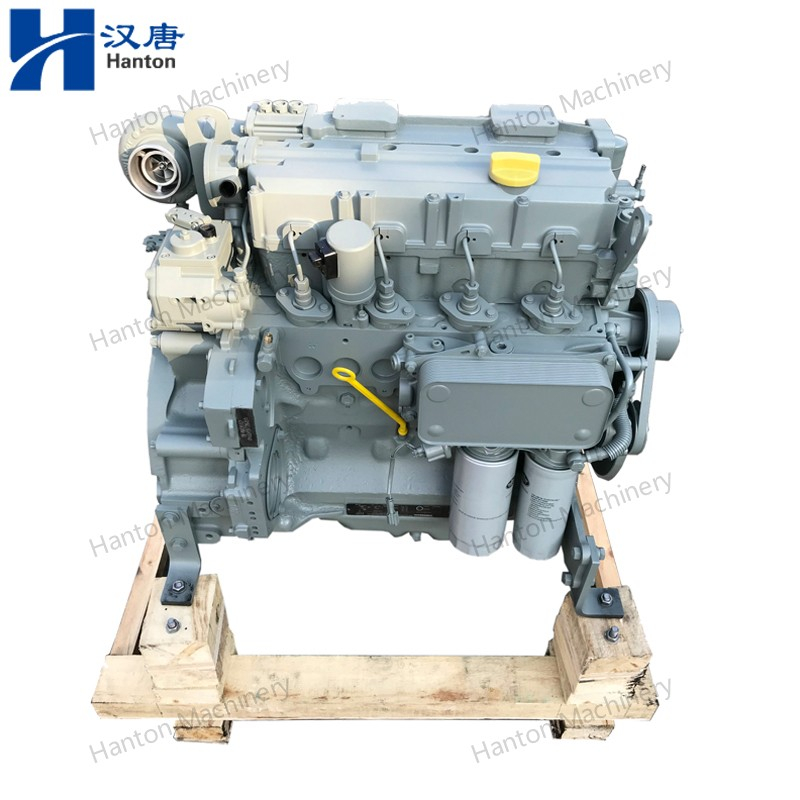

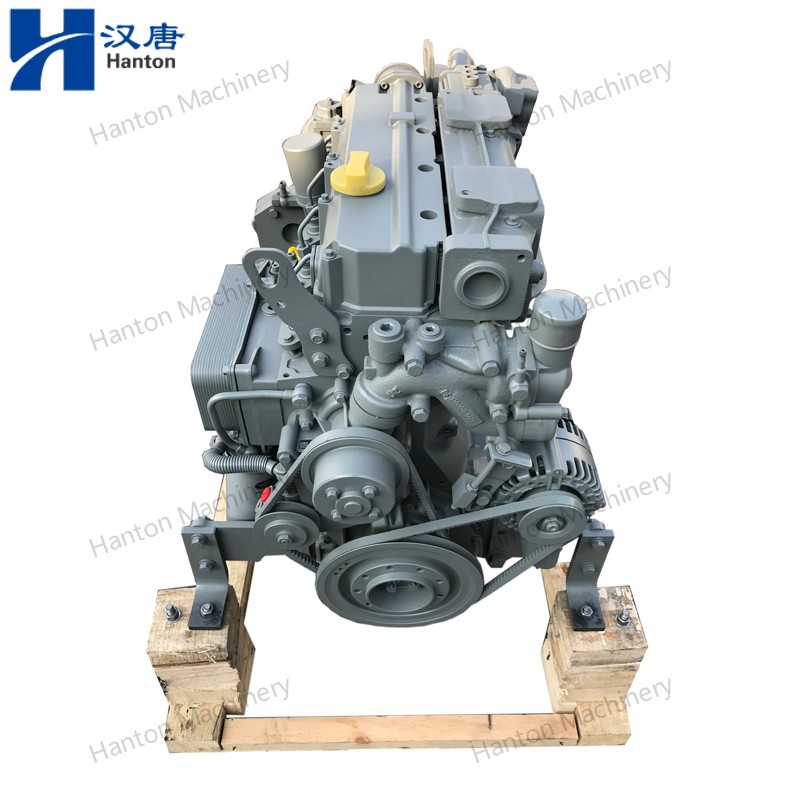

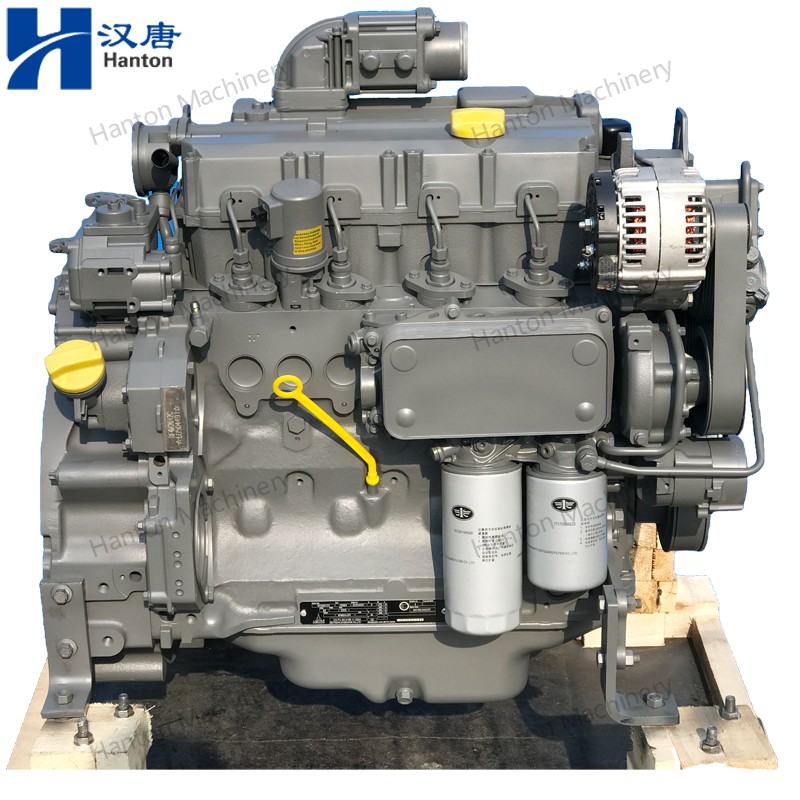

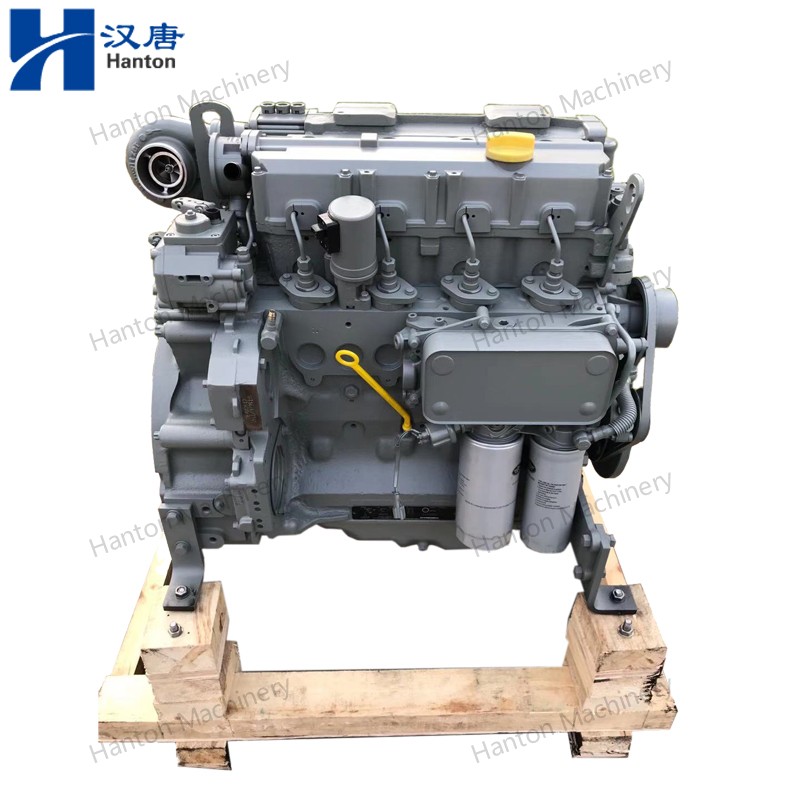

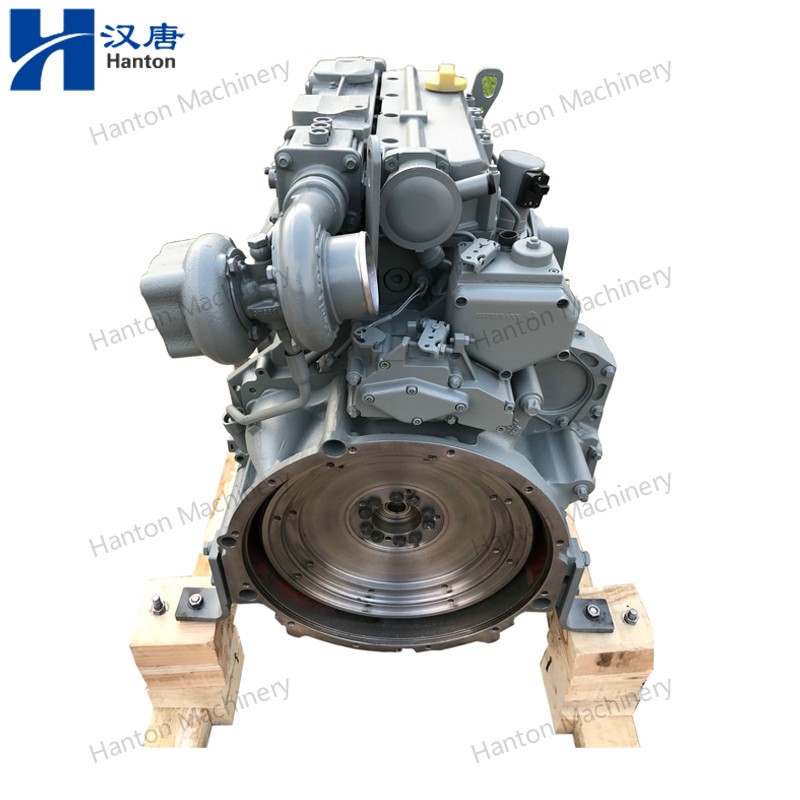

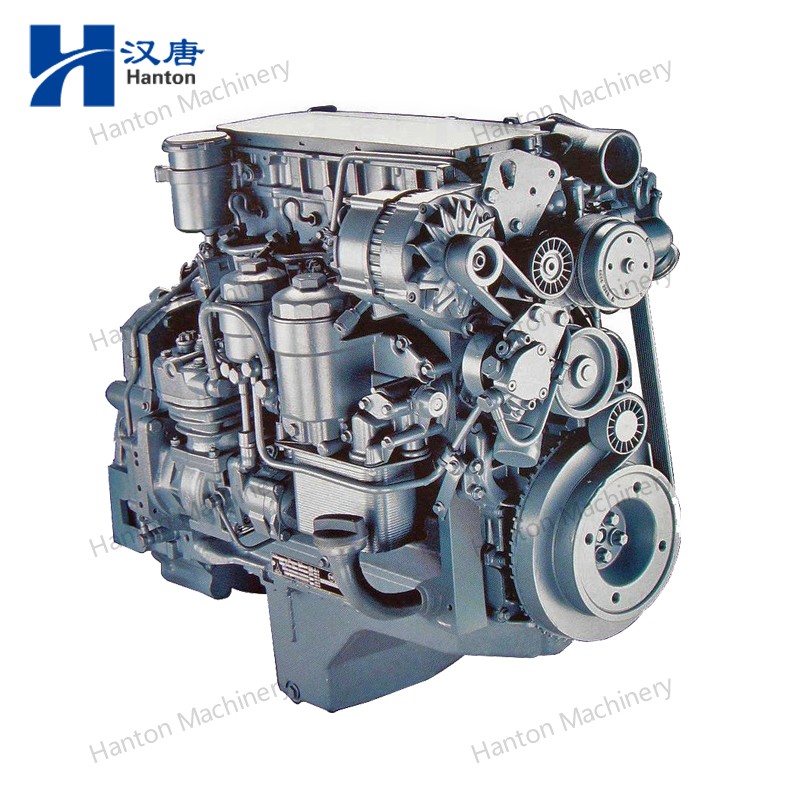

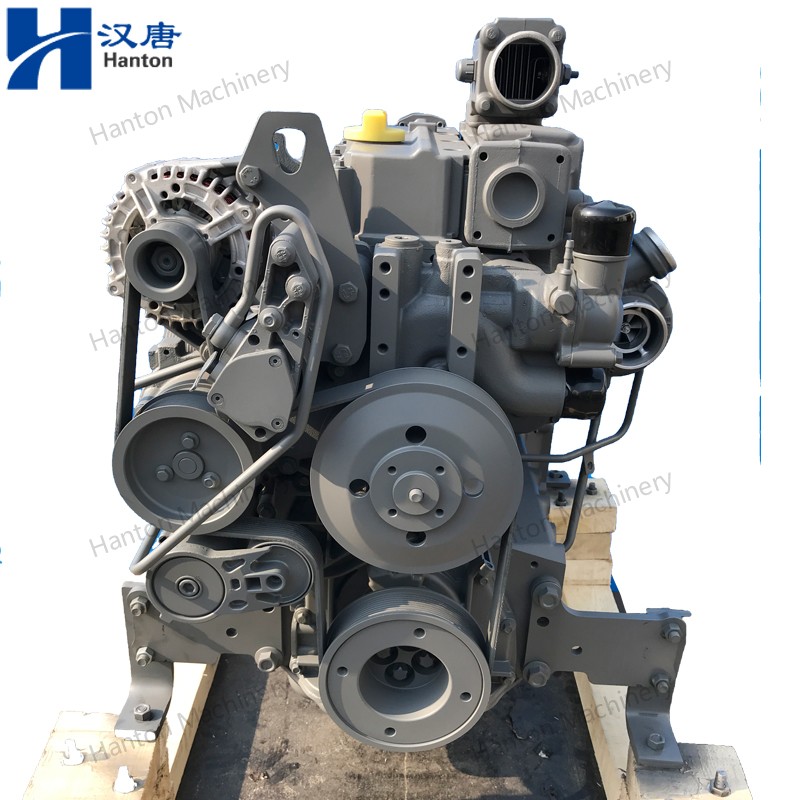

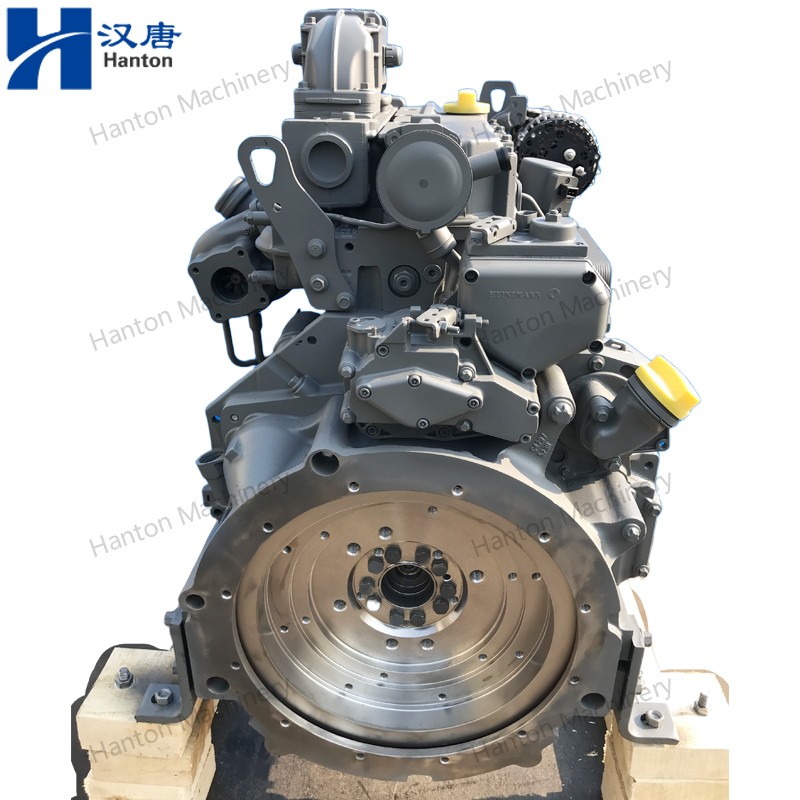

Deutz BF4M2012 Series Diesel Engine for Auto And Industrial Equipments

Descriptions

4 stroke, water-cooling, 4 cylinders in line, vertical

Aspiration

turbocharged, air-air aftercooled

Bore * Stroke

101mm * 126mm

Displacement

4.04 L ( 246.5 in³ )

Rated Power

90kw (122hp)

96kw (131hp)

103kw (140hp)

118kw (160hp)

Rated Speed

2500rpm

Peak Torque (1500rpm)

410 N.m (302 lb.ft)

450 N.m (332 lb.ft)

530 N.m (391 lb.ft)

590 N.m (435 lb.ft)

Application

truck, bus, industrial, automobile

Fuel Consumption

192 g/kw.h

Net Dry Weight

391 kg

Overall Dimension

799mm * 601mm * 832mm

Emission

Euro II

Euro III

Fuel system

mechanical

electronic unit pump

Maximum noise

94 dB(A)
