WP4.1CD
Weichai
HMWP4.1CD
| Quantity: | |
|---|---|

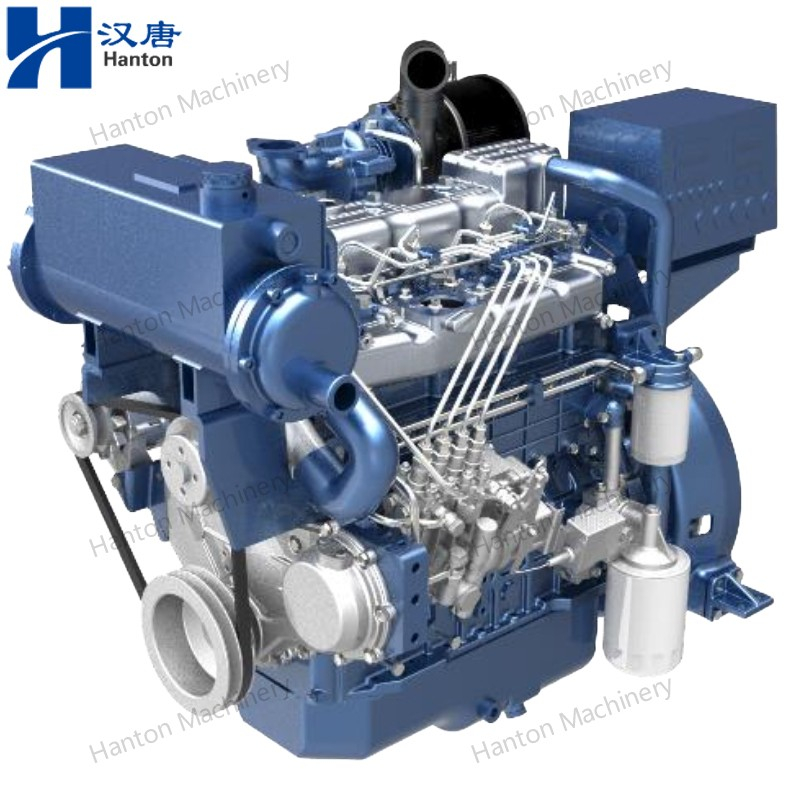

Weichai WP4.1CD Marine Auxiliary Engine for Ship Generator Set, with main specifications and main list of marine engines, in below:
Model | WP4.1CD | ||||
Cylinders | 4 cylinders in line | ||||
Aspiration | turbocharged | ||||
Bore * stroke [mm] | 105 * 118 | ||||
Displacement [L] | 4.09 | ||||
Compression Ratio | 17:1 | ||||
Rated Speed [RPM] | 1500 | 1800 | |||
Prime Power [KW] | 60 | 75 | 85 | 60 | 75 |
Standby Power [KW] | 66 | 83 | 93.5 | 66 | 83 |
Idle Speed [RPM] | 730 | ||||
Net Dry Weight [kg] | 400 | ||||
Wet Weight [kg] | 427 | ||||
Overall Dimension [mm] | 1062*625*918 | ||||
Emission | IMO Tier II | ||||
Model | Liter | KW/HP/RPM | KW/HP/RPM | KW/HP/RPM | KW/HP/RPM | KW/HP/RPM |
WP2.1 | 2.1 | 17.5/24/1500 | ||||
WP2.5 | 2.5 | 22/30/1500 | ||||
WP3.9 | 3.9 | 33.3/45/1500 | ||||
WP4.3 | 4.3 | 38/52/1500 | ||||
D226B-3 | 3.1 | 30/41/1500 | 40/54/1500 | 36/49/1800 | 50/68/1800 | |
WP4.1CD | 4.09 | 60/82/1500 | 75/102/1500 | 85/116/1500 | 60/82/1800 | 75/102/1800 |
WP4CD | 4.5 | 60/82/1500 | 90/122/1500 | 60/82/1800 | 90/122/1800 | 108/147/1800 |
WP6 | 6.75 | 120/163/1500 | 138/188/1500 | 120/163/1800 | 144/196/1800 | |
WP10 | 9.7 | 182/248/1500 | 216/294/1500 | 240/326/1500 | 182/248/1800 | 216/294/1800 |
WP10 | 9.7 | 240/326/1800 | ||||
WP12 | 11.6 | 288/392/1500 | 288/392/1800 | |||
WP13 | 12.54 | 350/476/1500 | 350/476/1800 | 402/547/1800 |
