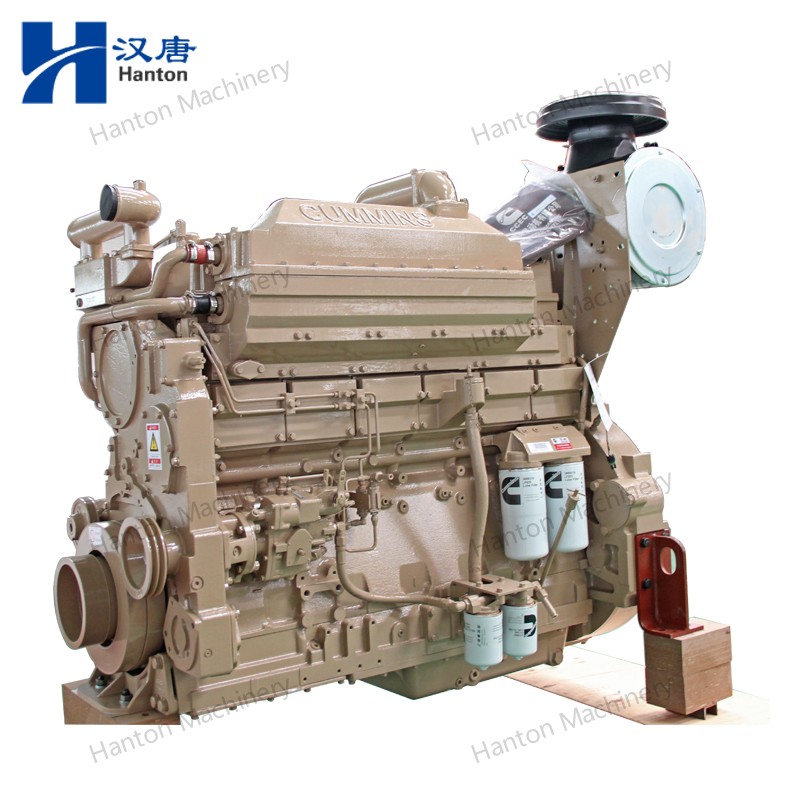

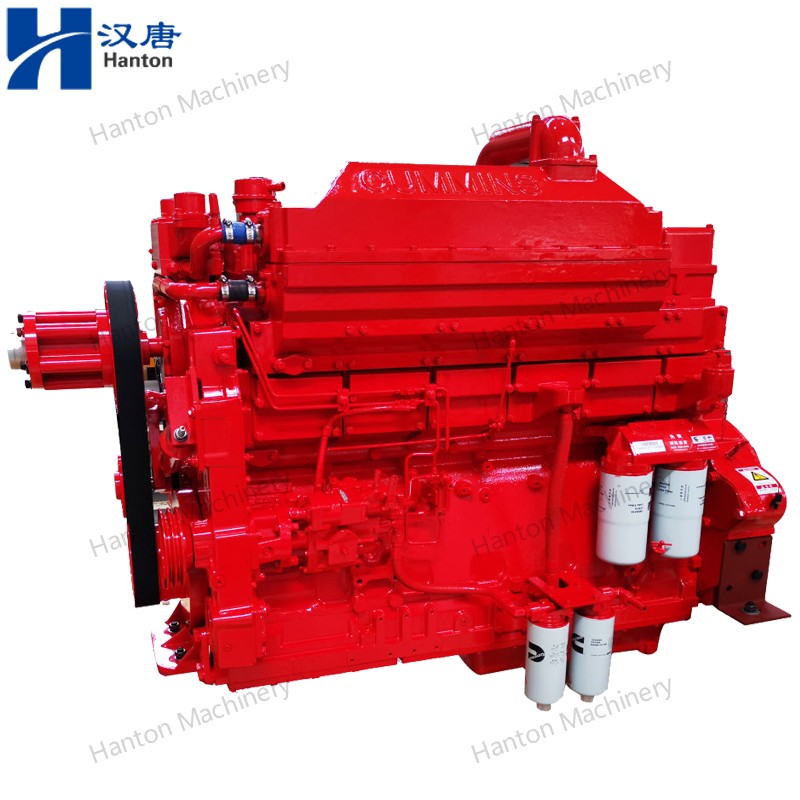

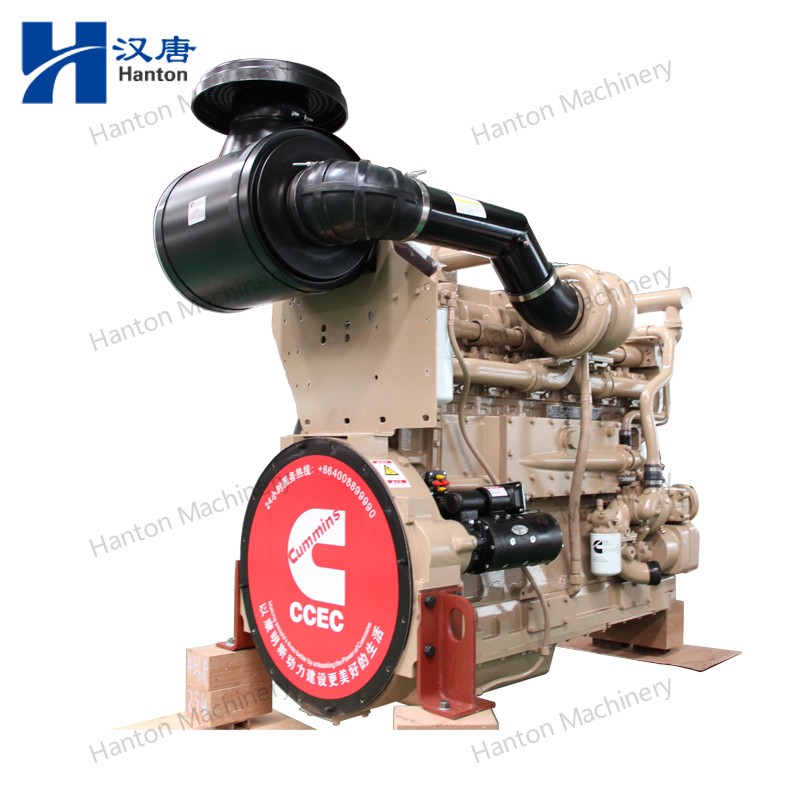

Cummins KTA19-P Series Diesel Engine for Water And Fire Pump Set

Cummins KTA19-P Series Diesel Engine for Water And Fire Pump Set, 6 cylinders in line, bore 159mm, stroke 159mm, displacement 19L, 1633kg, dimension 1962x965x1390mm, power 373kw 1500rpm to 664kw 1800rpm;

Model:
KTA19-P
Brand:
Cummins
Code:
HMKTA19P

Availability:

Quantity:



Inquire Add to Basket

Product Description

Cummins KTA19-P Series Diesel Engine for Water And Fire Pump Set, with main specifications and main list of Cummins engines for water and fire pump set, as below:

Model	KTA19-P
Cylinders	6 cylinders in line
Aspiration	turbocharged
Aftercooling	water-air
Bore * stroke [mm]	159 * 159
Fuel System	Cummins PT STC
Displacement	19
Rated Power [KW]	373	373	392	447	447	507	522	559	488	531	610	664
Rated Power [HP]	500	500	525	600	600	680	700	750	654	712	818	890
Rated Speed [RPM]	1500	1800	1800	1500	1800	1500	1800	1800	1500	1800	1500	1800
Peak Torque [N.m]	2587		2182	2587	2587	3237	2769	2967
Net weight [kg]	1633
Dimension [mm]	1962 * 965 * 1390

Model	Liter	KW/HP/RPM	KW/HP/RPM	KW/HP/RPM	KW/HP/RPM
4BTA3.9-F	3.9	66/90/2900	77/105/2800
4BT3.9-P	3.9	36/50/1500	40/55/1800
4BTA3.9-P	3.9	58/80/1500	67/91/1800	70/95/1500	80/109/1800
6BT5.9-P	5.9	96/130/1500	115/160/1800
6BTAA5.9-P	5.9	120/163/1500	132/180/1800
6CTA8.3-P	8.3	163/220/1500	170/230/1800
6CTAA8.3-P	8.3	183/250/1500	190/260/1800
6LTAA8.9-P	8.9	220/300/1500	235/320/1800	230/310/1500	255/340/1800
6LTAA9.5-P	8.9	250/335/1500	265/355/1800	280/375/1800	290/390/1500
6ZTAA13-P	13	340/455/1500	340/455/1800	390/520/1500	390/520/1800
QSB3.9-P	3.9	63/80/1500	79/110/1500
QSB5.9-P	5.9	96/130/1500	120/160/1500
QSB6.7-P	6.7	151/205/1500	168/220/1500
QSL8.9-P	8.9	206/280/1500	220/300/1500	235/320/1500
QSZ13-P	13	340/462/1500	340/462/1800	410/550/1500	410/550/1800
QSZ13-P	13	372/500/1500	372/500/1800
NTA855-P	14	298/400/2100	269/350/2100	298/400/1800	351/470/1500
NTA855-P	14	336/450/1800	373/500/1800	317/450/1800	298/400/1500
NT855-P	14	201/270/1800	224/300/1500	242/360/1800	298/400/1800
KTA19-P	19	392/525/2100	373/500/1800	448/600/2100	373/500/1500
KTA19-P	19	447/600/1500	507/680/1500	448/600/1800	522/700/1800
KTA19-P	19	559/750/1800
KT38-P	38	537/720/1500	582/780/1800	619/830/1500	746/1000/1800
KTA38-P	38	731/980/1500	970/1300/1500	895/1200/1800	1045/1400/1800
QSB3.9-F	3.9	36/50/2950	60/80/2950	85/115/2950
QSB6.7-F	6.7	120/160/2950	145/200/2950	170/230/2950
