NTA855-P
Cummins
HMNTA855P
| Quantity: | |
|---|---|

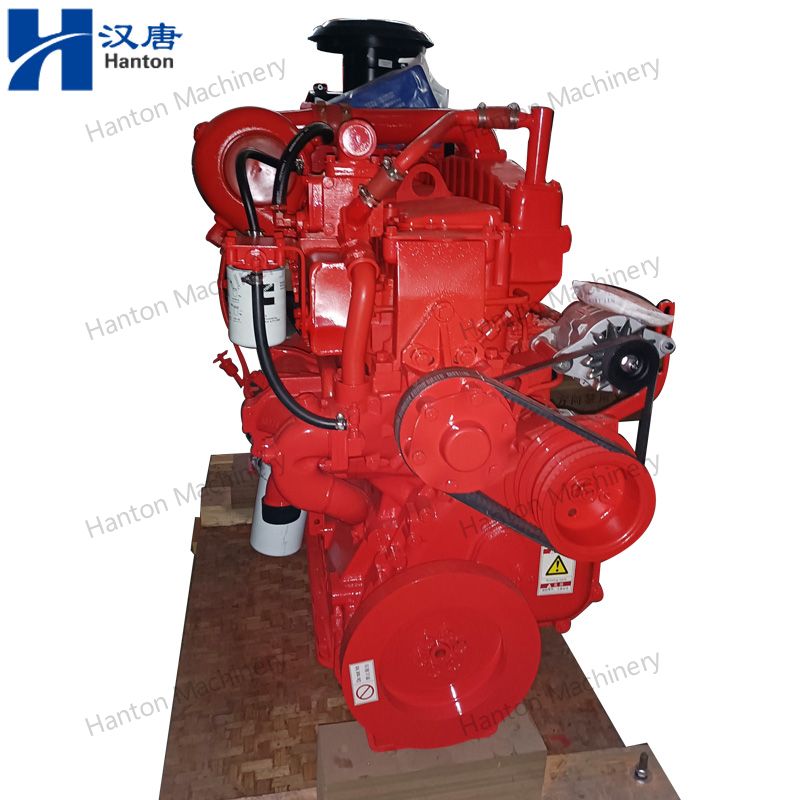

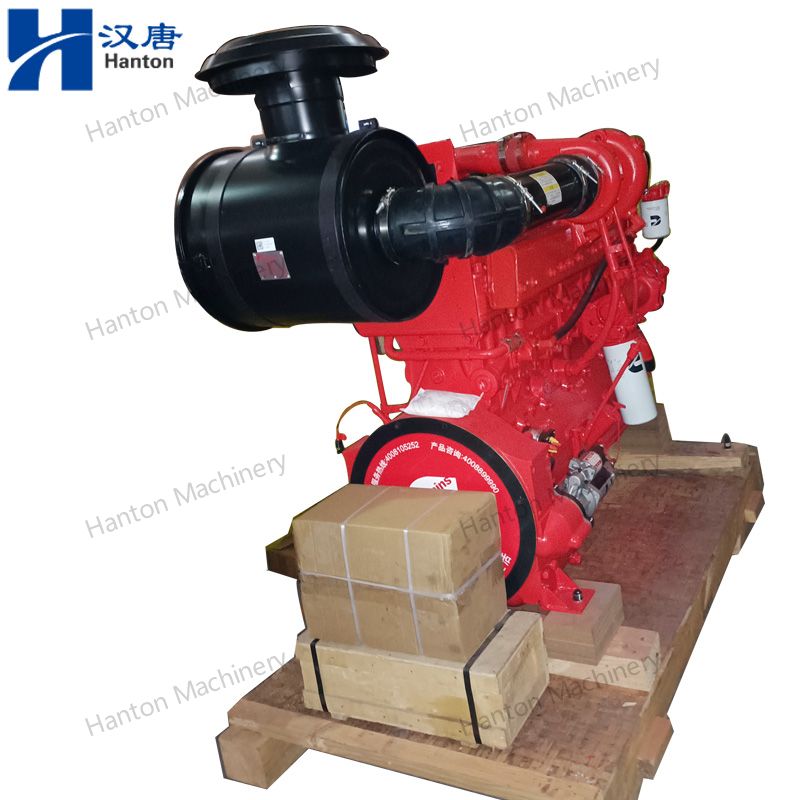

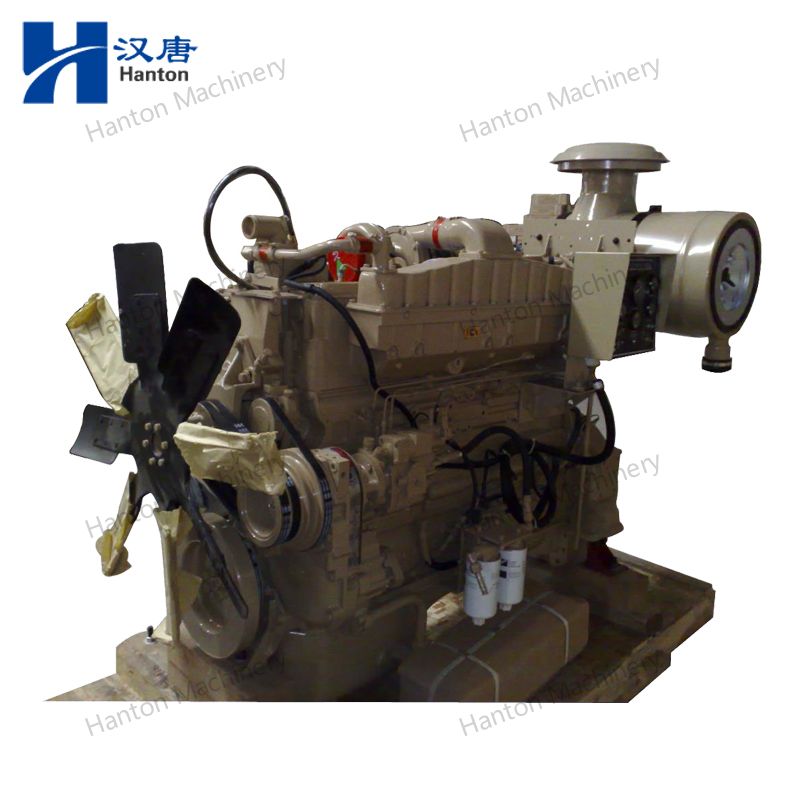

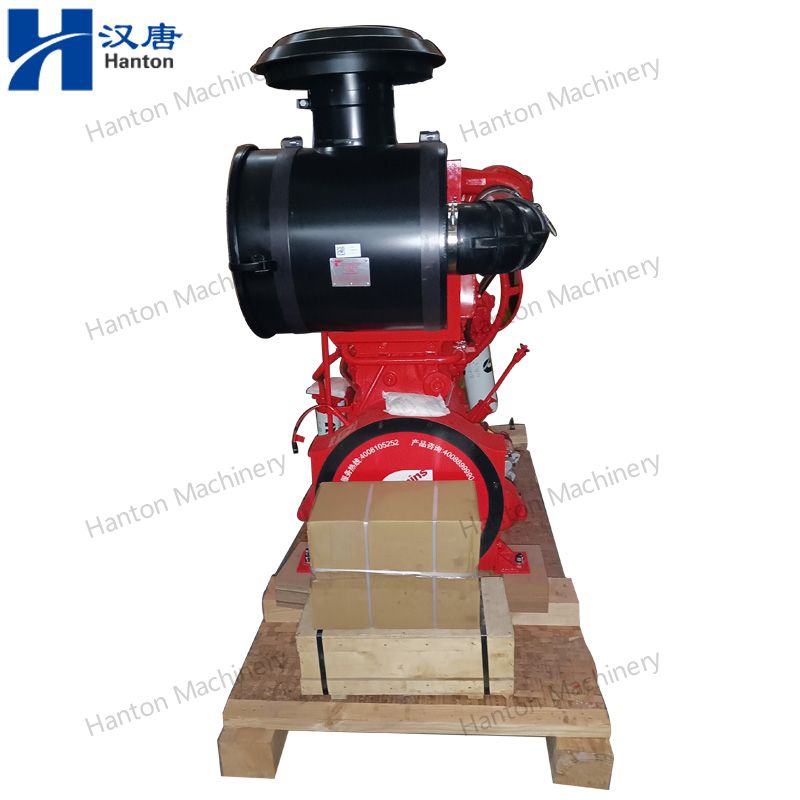

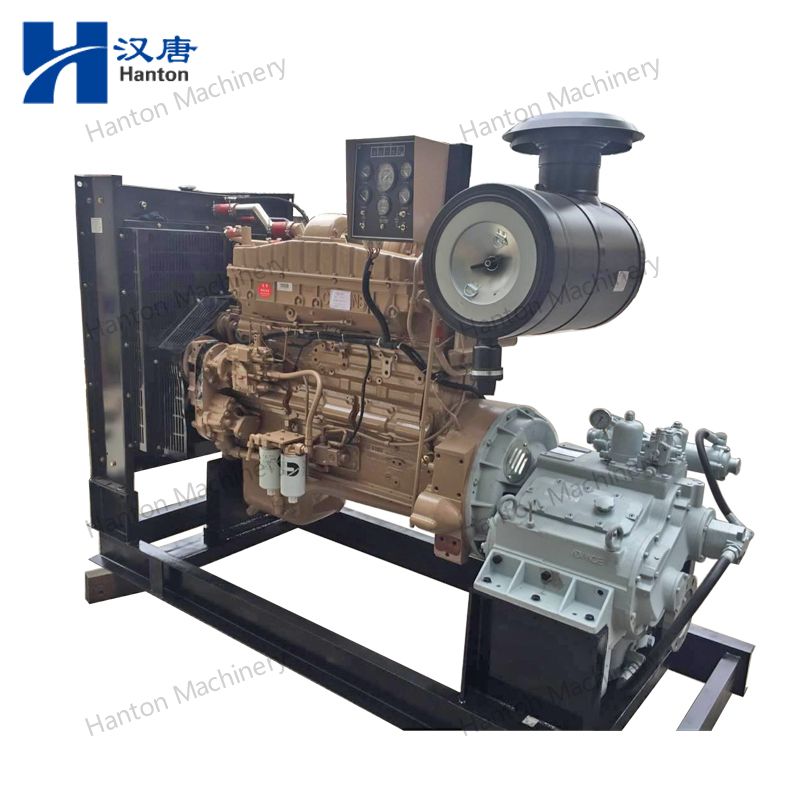

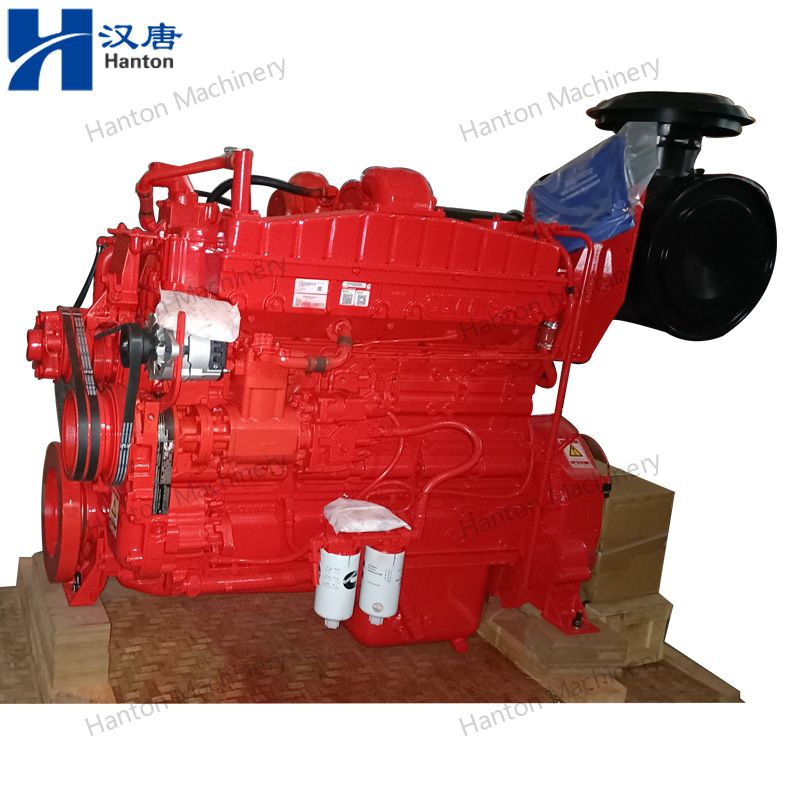

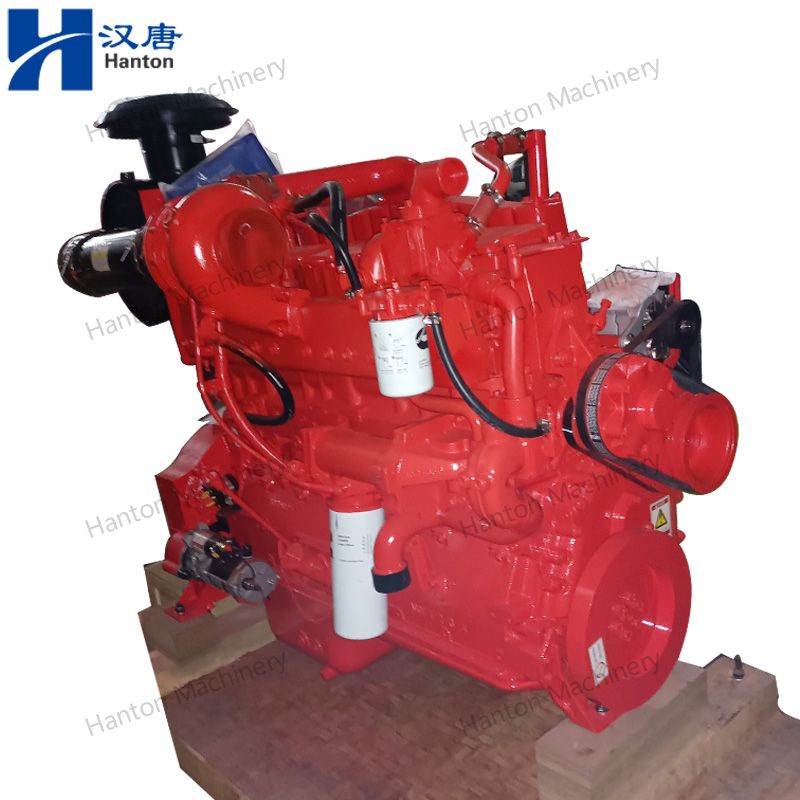

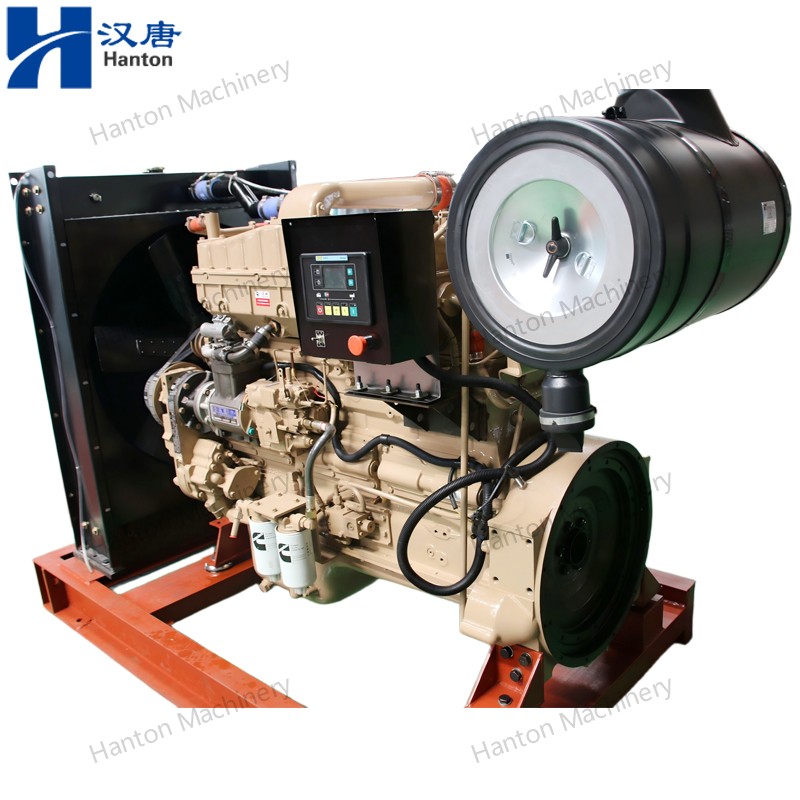

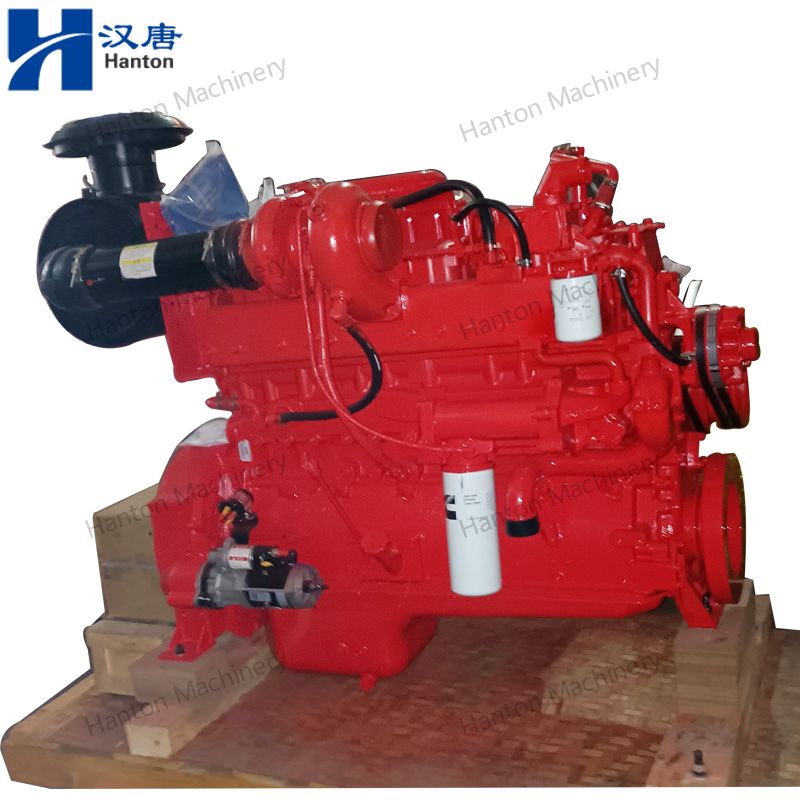

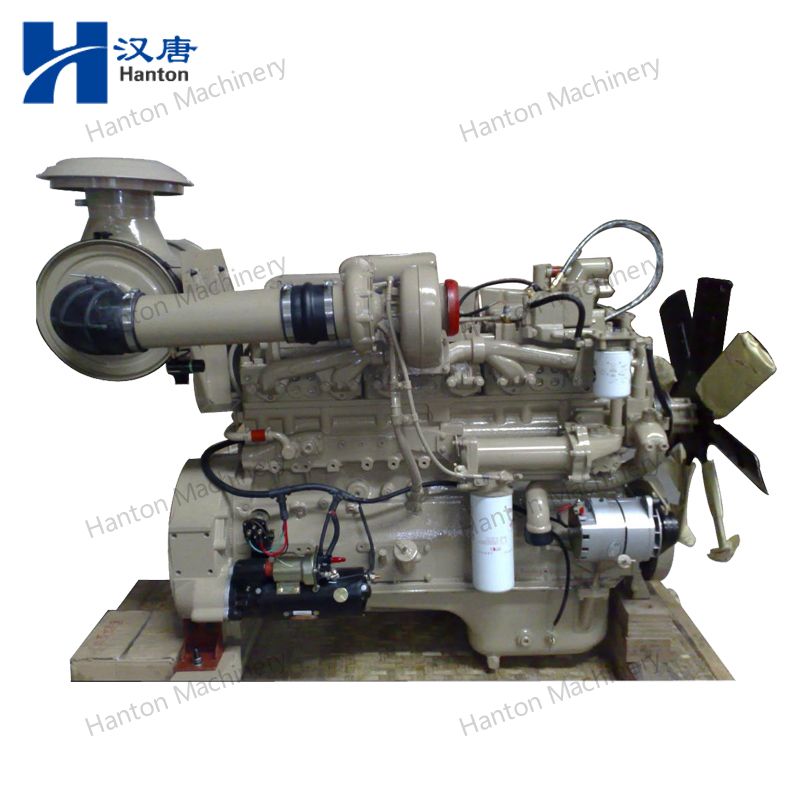

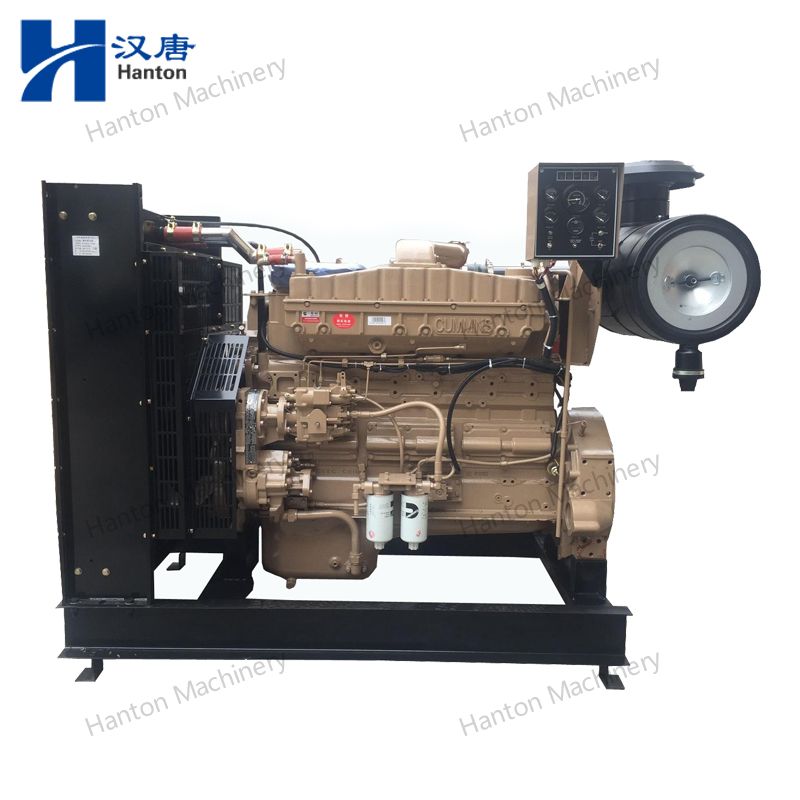

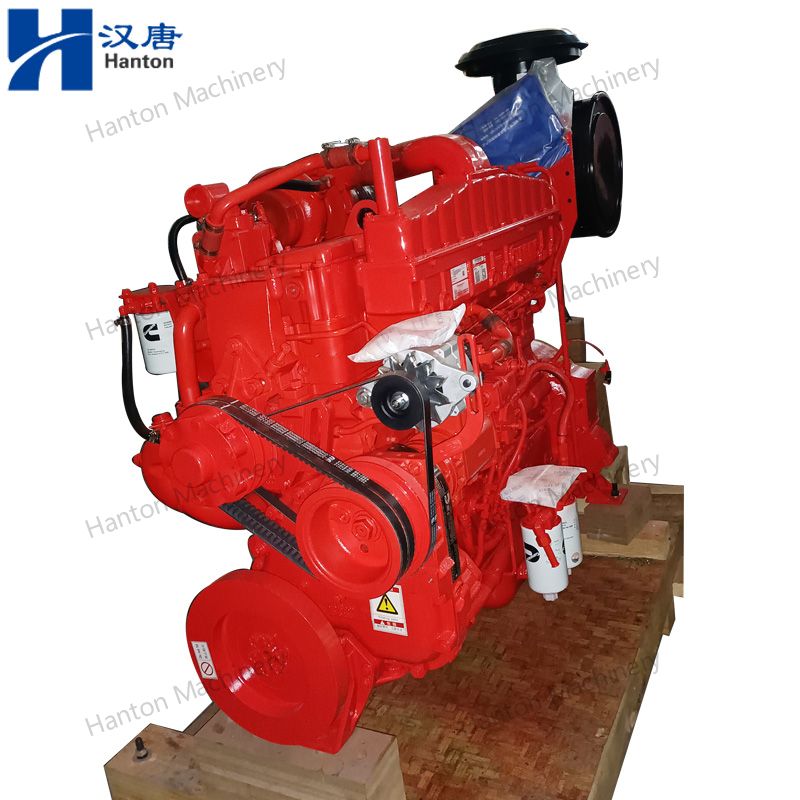

Cummins NTA855-P Series Diesel Engine for Water And Fire Pump Driving, with main specifications and main list of Cummins pump driving engines, in below:
Model | NT855-P | NTA855-P | ||||||
Cylinders | 6 cylinders in line | |||||||
Aspiration | Turbocharged | Turbocharged, aftercooled | ||||||
Bore * stroke [mm] | 140 * 152 | |||||||
Fuel System | Mechanical | |||||||
Displacement | 14 L | |||||||
Rated Speed 1 [RPM] | 1800 | 1500 | 1800 | 1800 | 1800 | 1800 | 2100 | |
Rated Power 1 [KW/HP] | 201/270 | 224/300 | 224/300 | 186/250 | 239/320 | 261/350 | 269/360 | |
Rated Speed 2 [RPM] | 1800 | 1500 | 1800 | 2100 | 1800 | 1500 | ||
Rated Power 2 [KW/HP] | 283/380 | 298/400 | 298/400 | 298/400 | 317/425 | 351/470 | ||
Net dry weight [kg] | 1230 | 1258 | ||||||
Overall dimension [mm] | 1531 * 844 * 1267 | |||||||
Model | Liter | KW/HP/RPM | KW/HP/RPM | KW/HP/RPM | KW/HP/RPM |
4BTA3.9-F | 3.9 | 66/90/2900 | 77/105/2800 | ||
4BT3.9-P | 3.9 | 36/50/1500 | 40/55/1800 | ||
4BTA3.9-P | 3.9 | 58/80/1500 | 67/91/1800 | 70/95/1500 | 80/109/1800 |
6BT5.9-P | 5.9 | 96/130/1500 | 115/160/1800 | ||
6BTAA5.9-P | 5.9 | 120/163/1500 | 132/180/1800 | ||
6CTA8.3-P | 8.3 | 163/220/1500 | 170/230/1800 | ||
6CTAA8.3-P | 8.3 | 183/250/1500 | 190/260/1800 | ||
6LTAA8.9-P | 8.9 | 220/300/1500 | 235/320/1800 | 230/310/1500 | 255/340/1800 |
6LTAA9.5-P | 8.9 | 250/335/1500 | 265/355/1800 | 280/375/1800 | 290/390/1500 |
6ZTAA13-P | 13 | 340/455/1500 | 340/455/1800 | 390/520/1500 | 390/520/1800 |
QSB3.9-P | 3.9 | 63/80/1500 | 79/110/1500 | ||
QSB5.9-P | 5.9 | 96/130/1500 | 120/160/1500 | ||
QSB6.7-P | 6.7 | 151/205/1500 | 168/220/1500 | ||
QSL8.9-P | 8.9 | 206/280/1500 | 220/300/1500 | 235/320/1500 | |

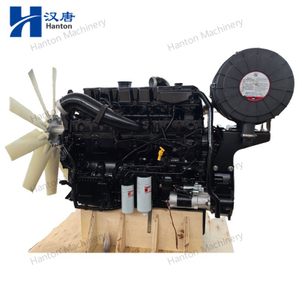

QSZ13-P | 13 | 340/462/1500 | 340/462/1800 | 410/550/1500 | 410/550/1800 |
QSZ13-P | 13 | 372/500/1500 | 372/500/1800 | ||
NTA855-P | 14 | 298/400/2100 | 269/350/2100 | 298/400/1800 | 351/470/1500 |
NTA855-P | 14 | 336/450/1800 | 373/500/1800 | 317/450/1800 | 298/400/1500 |
NT855-P | 14 | 201/270/1800 | 224/300/1500 | 242/360/1800 | 298/400/1800 |
KTA19-P | 19 | 392/525/2100 | 373/500/1800 | 448/600/2100 | 373/500/1500 |
KTA19-P | 19 | 447/600/1500 | 507/680/1500 | 448/600/1800 | 522/700/1800 |
KTA19-P | 19 | 559/750/1800 | |||
KT38-P | 38 | 537/720/1500 | 582/780/1800 | 619/830/1500 | 746/1000/1800 |
KTA38-P | 38 | 731/980/1500 | 970/1300/1500 | 895/1200/1800 | 1045/1400/1800 |
QSB3.9-F | 3.9 | 36/50/2950 | 60/80/2950 | 85/115/2950 | |
QSB6.7-F | 6.7 | 120/160/2950 | 145/200/2950 | 170/230/2950 |
