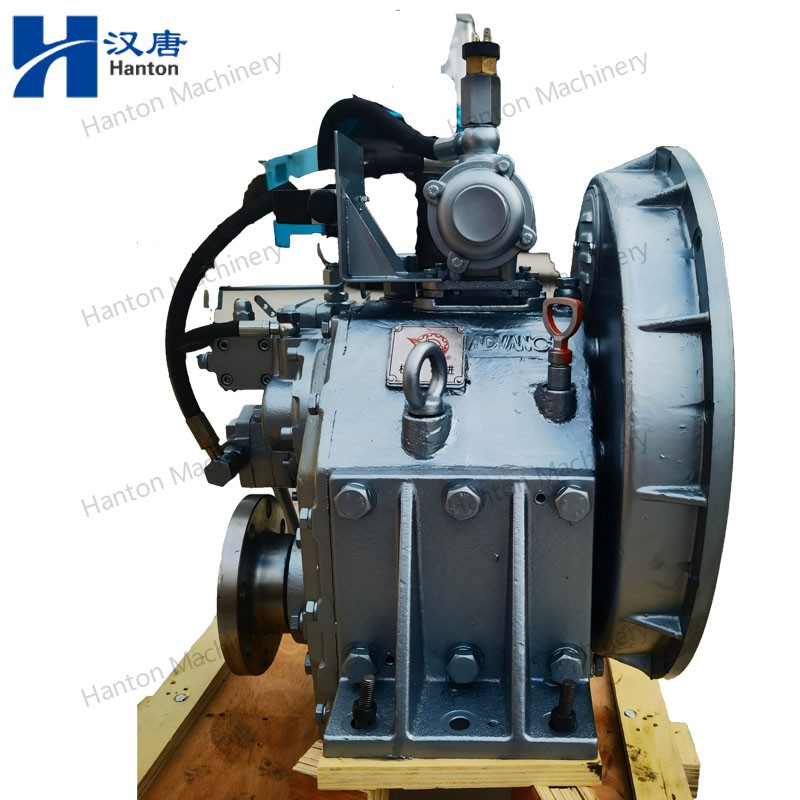

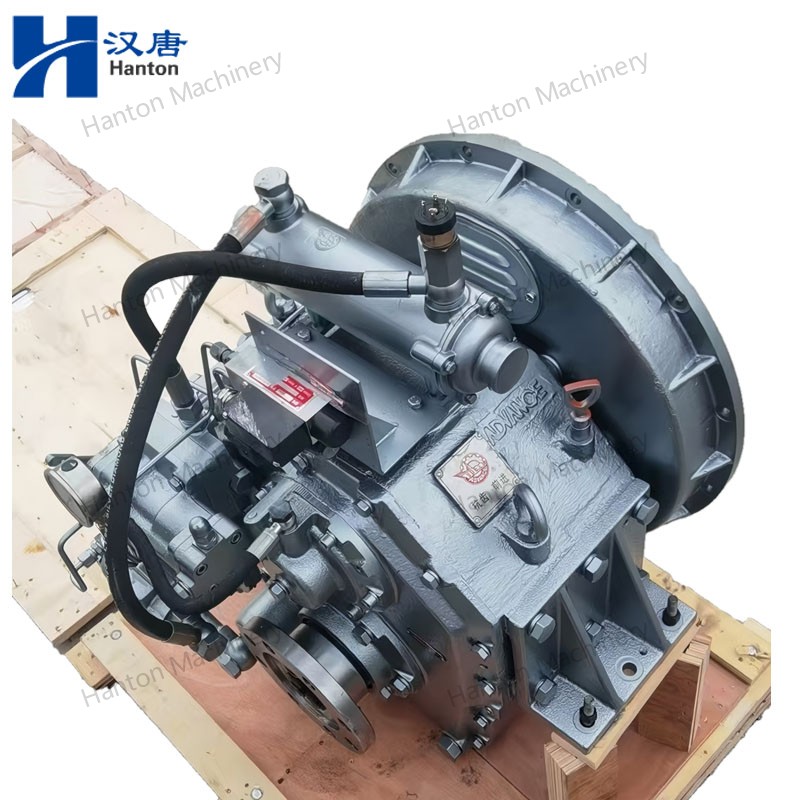

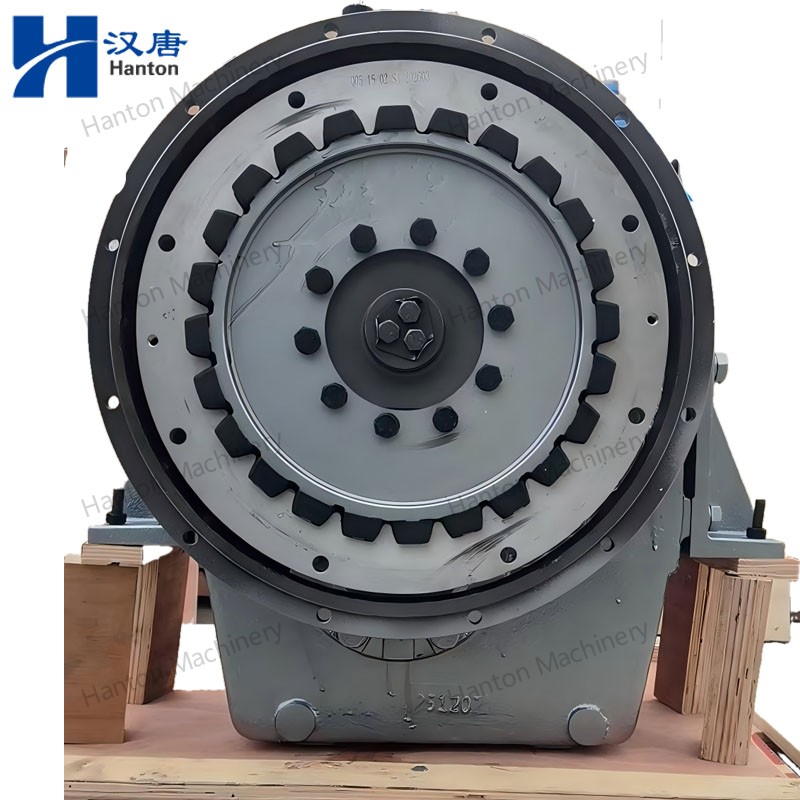

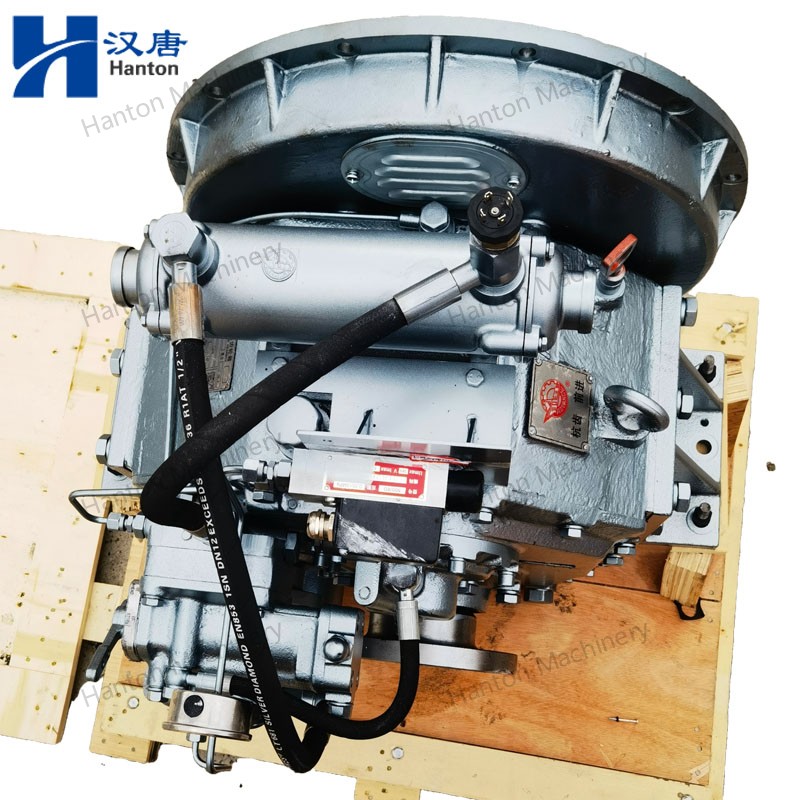

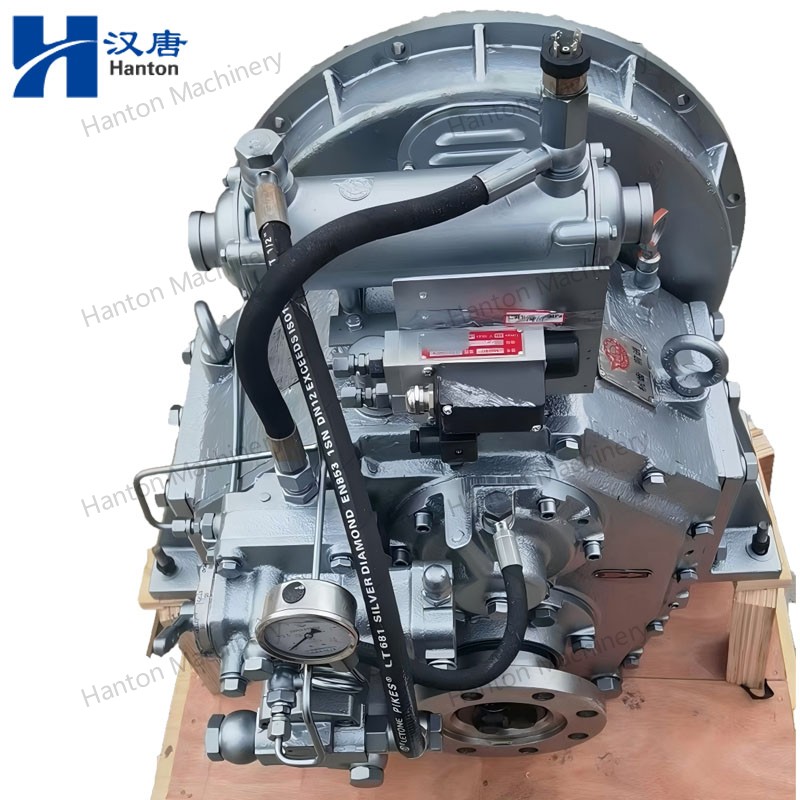

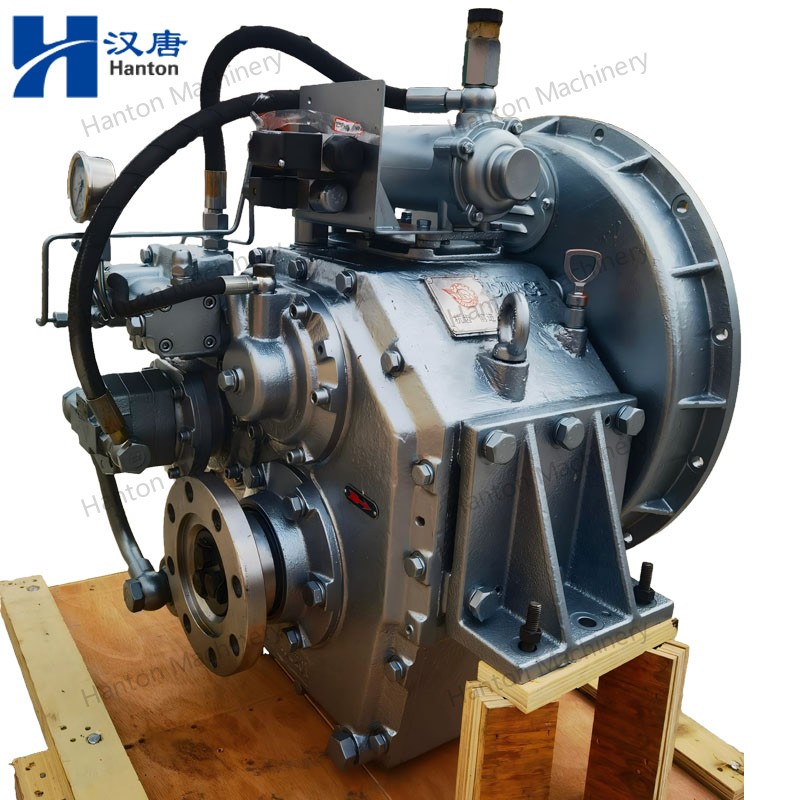

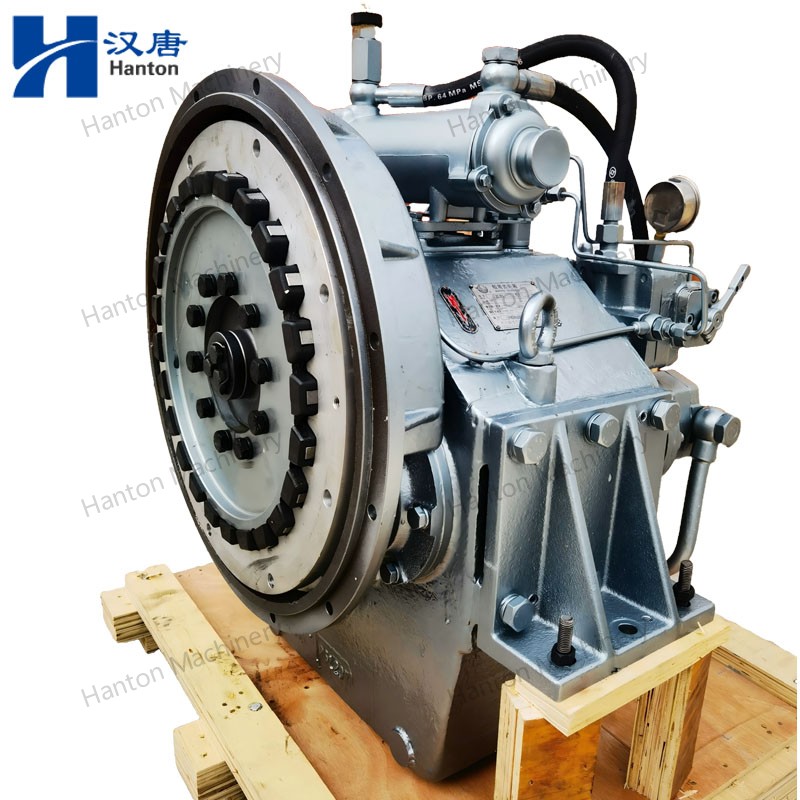

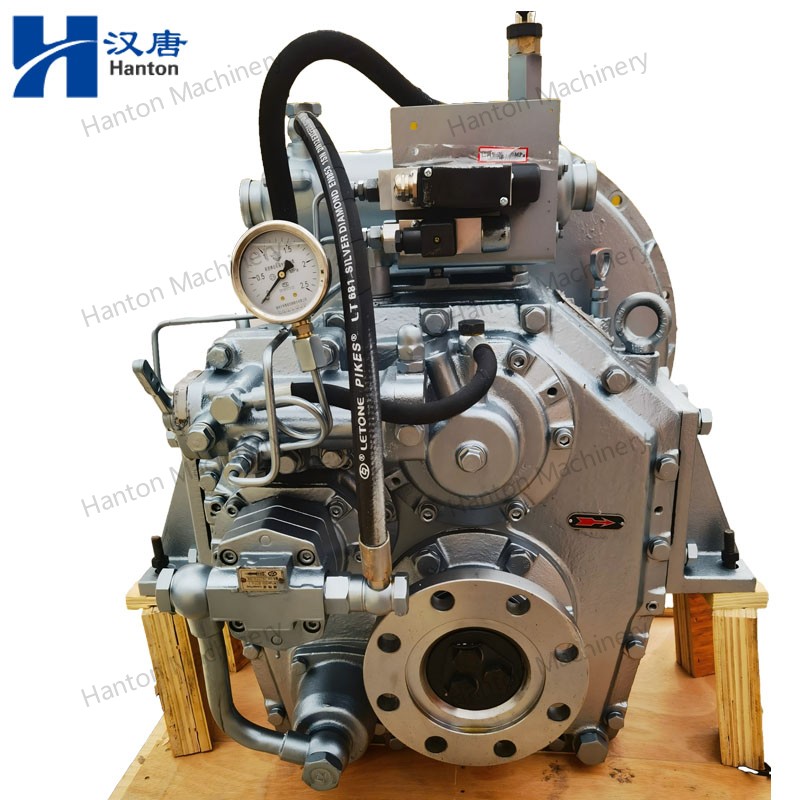

Advance HC201 Series Marine Gearbox for Boat And Ship

Advance HC201 Series Marine Gearbox for Boat And Ship, input engine speed 1000-2500rpm, center distance 205mm, rated propulsion 40KN, reduction ratio 2.48/2.96/3.53:1, transmission capacity 0.147 KW/RPM, 0.132KW/RPM, dimension 587*691*718mm, weight 350kg, max engine power 367.5kw 500bhp 2500rpm.

Model:
HC201
Brand:
Advance
Code:
HMHC201

Availability:

Quantity:



Inquire Add to Basket

Product Description

Advance HC201 Series Marine Gearbox for Boat And Ship, with detailed specifications, in below:

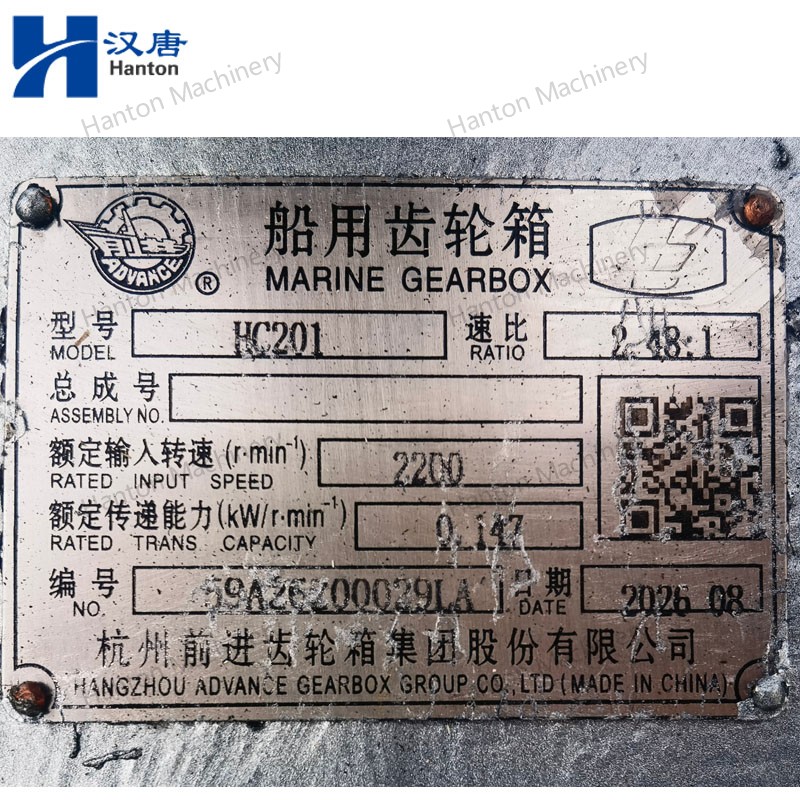

Model	HC201
Application	Marine
RPM input	1000rpm - 2500rpm
Center distance	205mm
Rated propulsion	40 KN
Reduction ratio	2.48	2.96	3.53
Transmitting capacity (kw/rpm)	0.147		0.132
Overall dimensions	587 * 691 * 718mm
Net dry weight	350kg
Flywheel (flange)	SAE 18inch, 16inch, 14inch, 11.5inch
Flywheel (bell) housing	SAE 0#, 1#, 2#
Operation Control	Manual push and pull flexible shaft, electrical
Maximum engine power	367.5kw 500hp 2500rpm

HC201 800X800 watermark -001 HC201 800X800 watermark -002 HC201 800X800 watermark -003 HC201 800X800 watermark -004 HC201 800X800 watermark -005 HC201 800X800 watermark -006

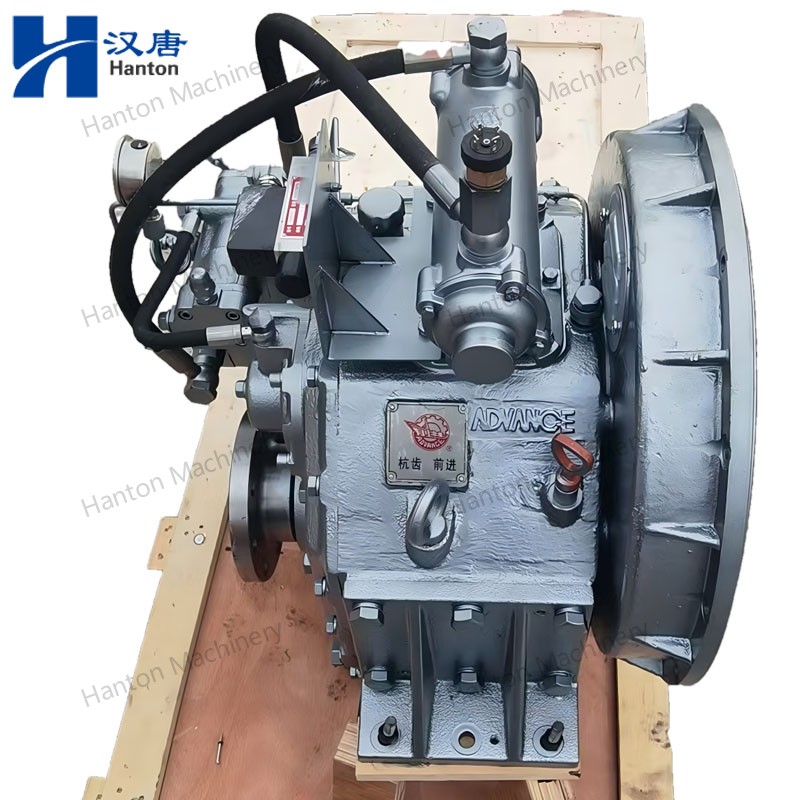

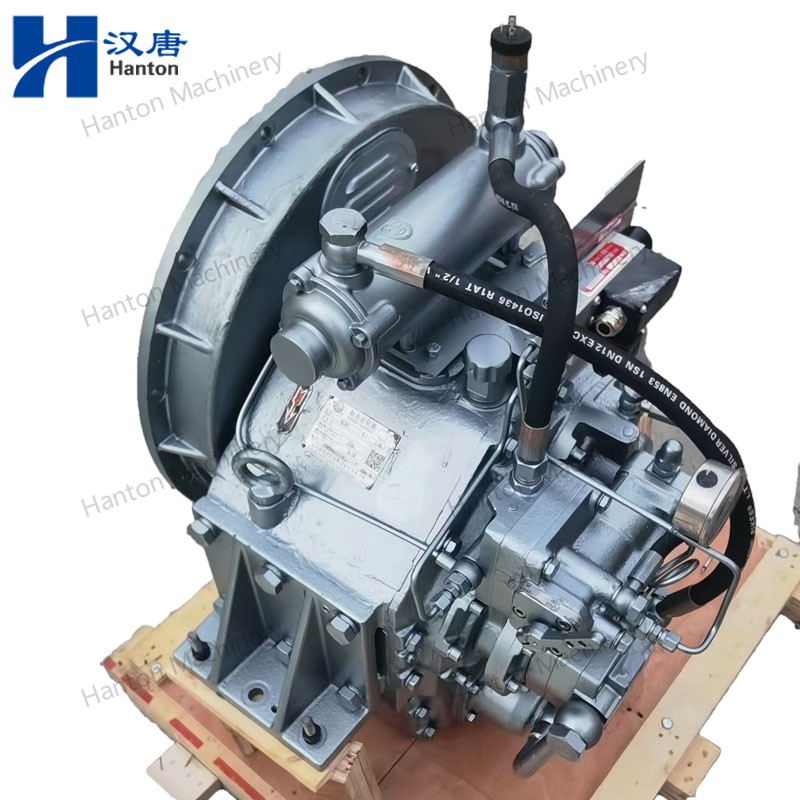

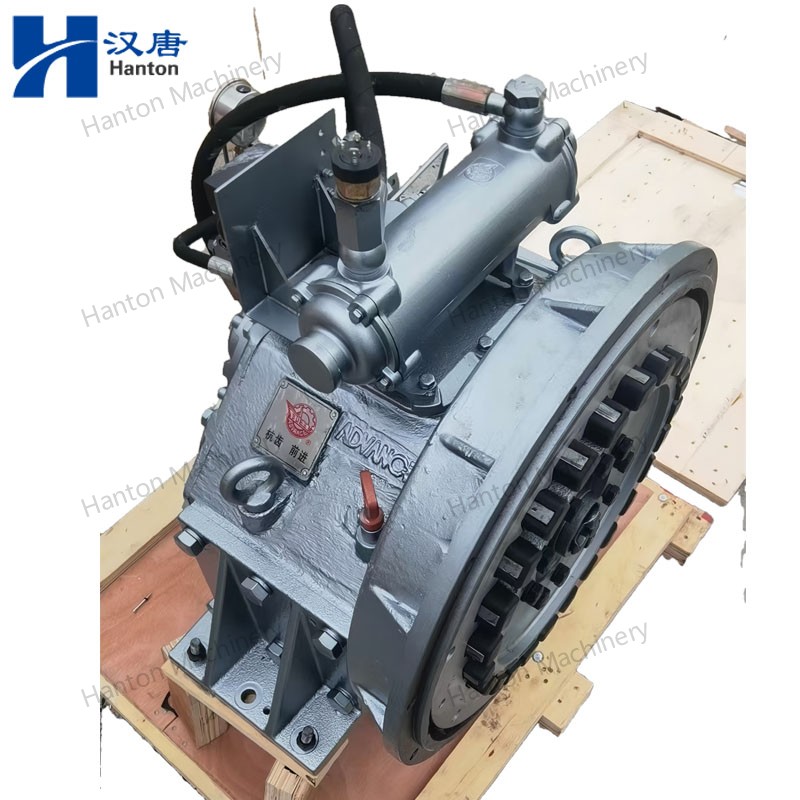

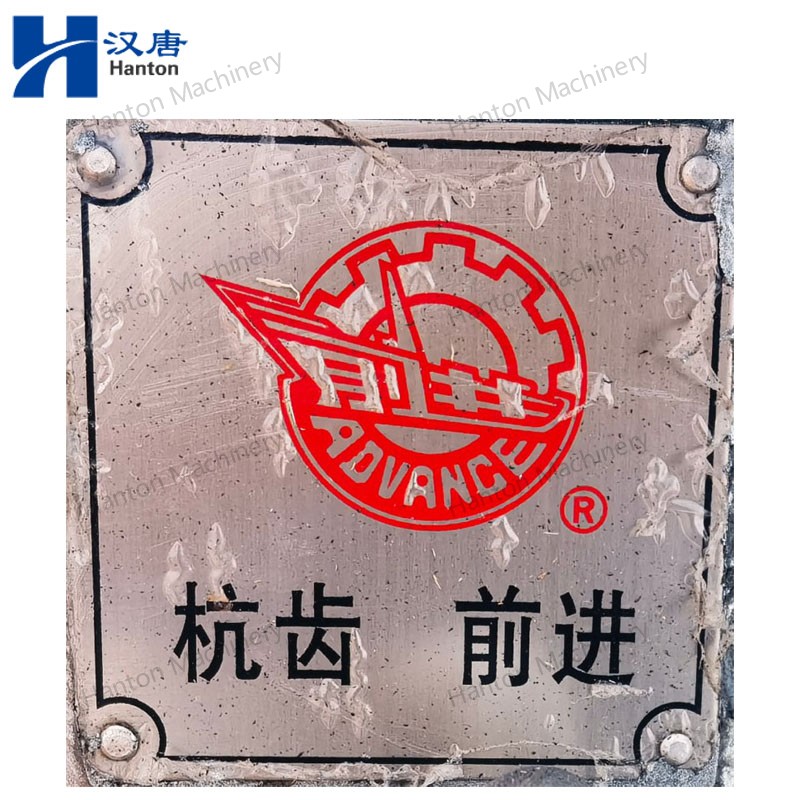

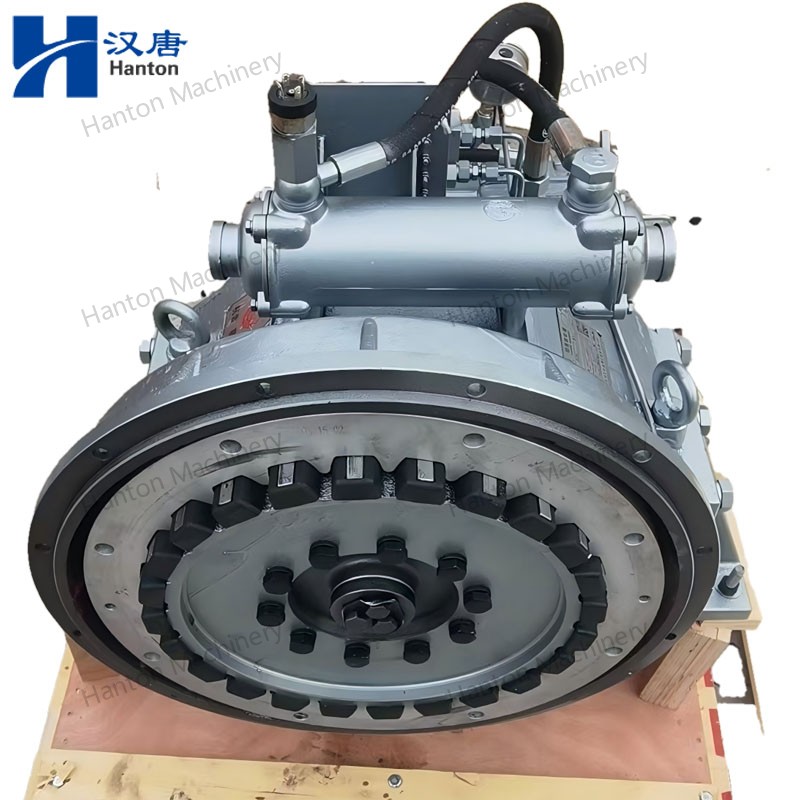

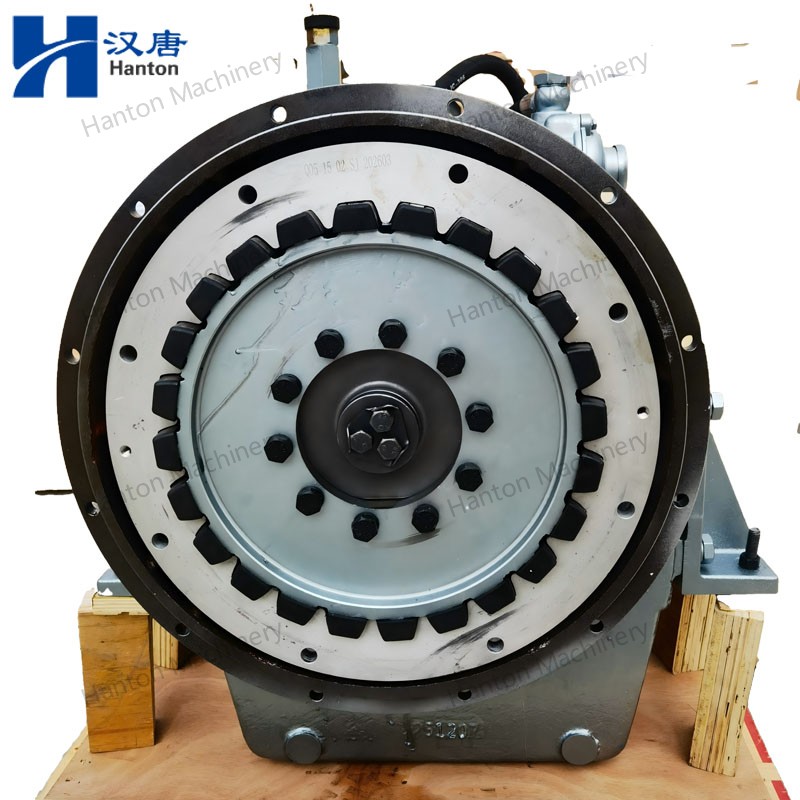

HC201 800X800 watermark -007 HC201 800X800 watermark -008 HC201 800X800 watermark -009 HC201 800X800 watermark -010 HC201 800X800 watermark -011 HC201 800X800 watermark -012 HC201 800X800 watermark -013 HC201 800X800 watermark -014

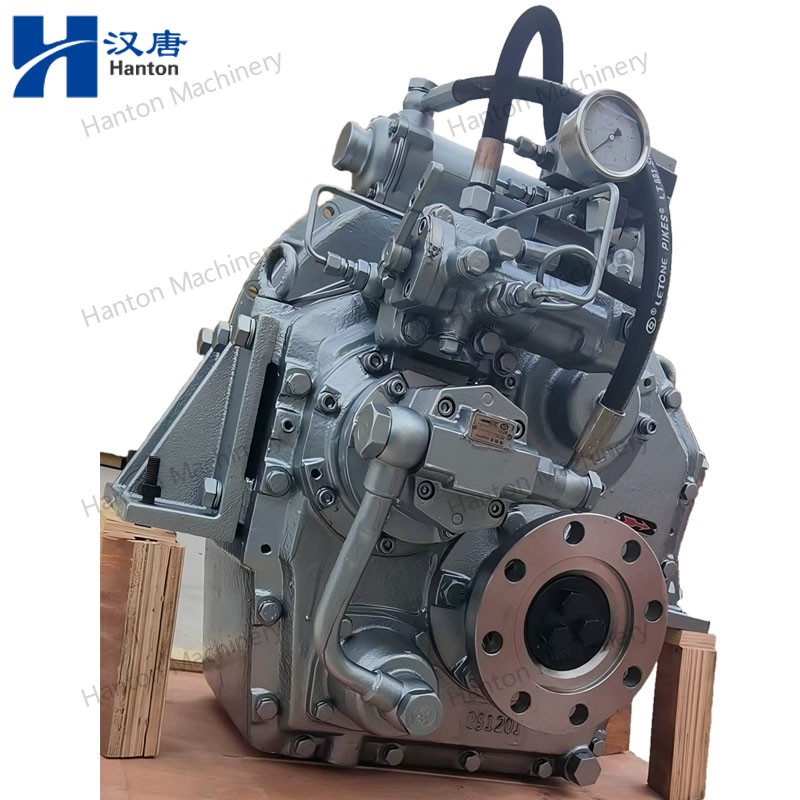

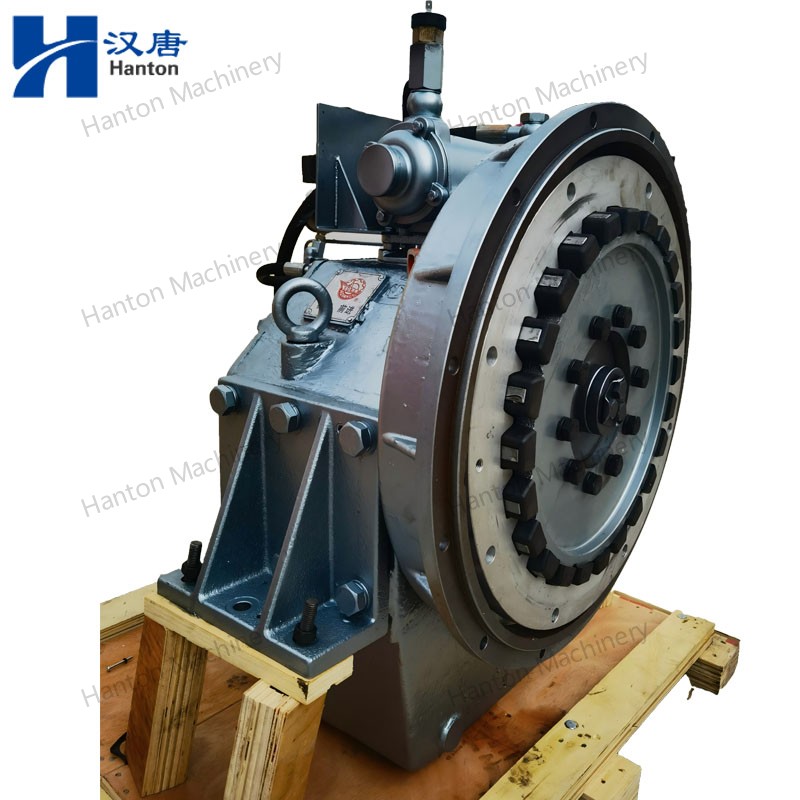

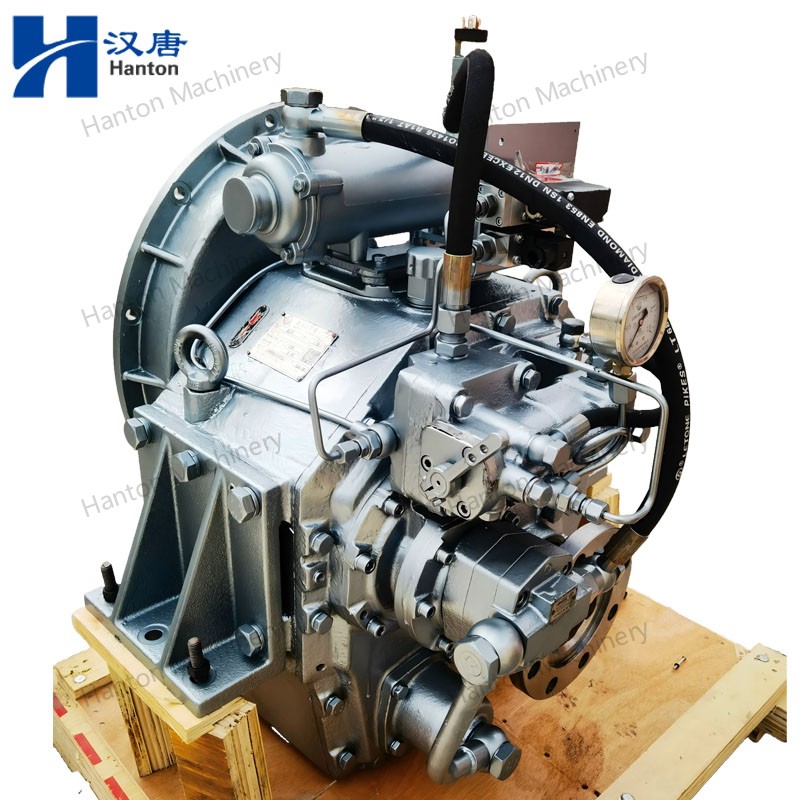

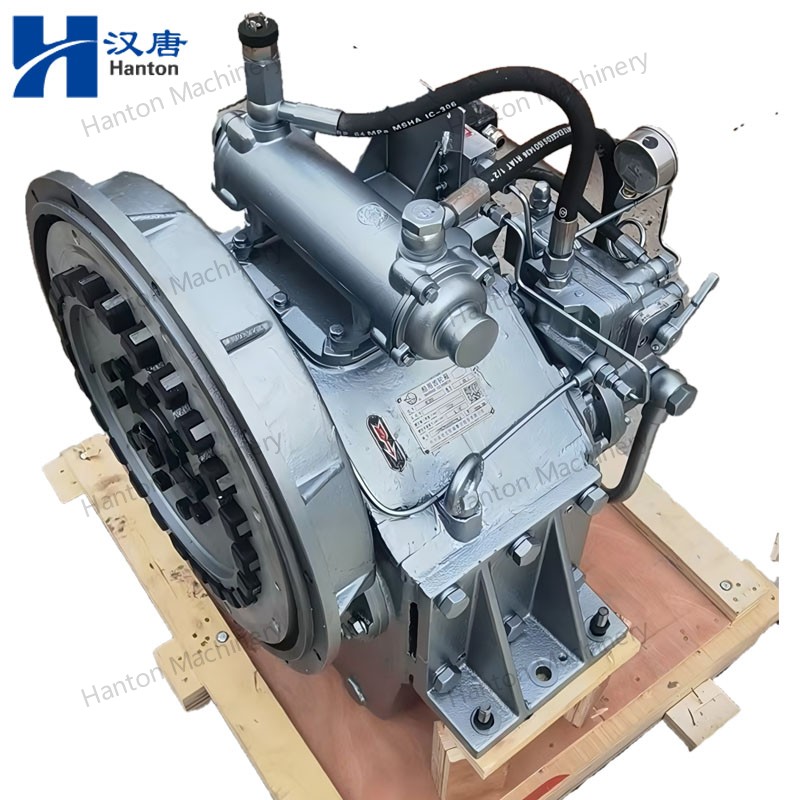

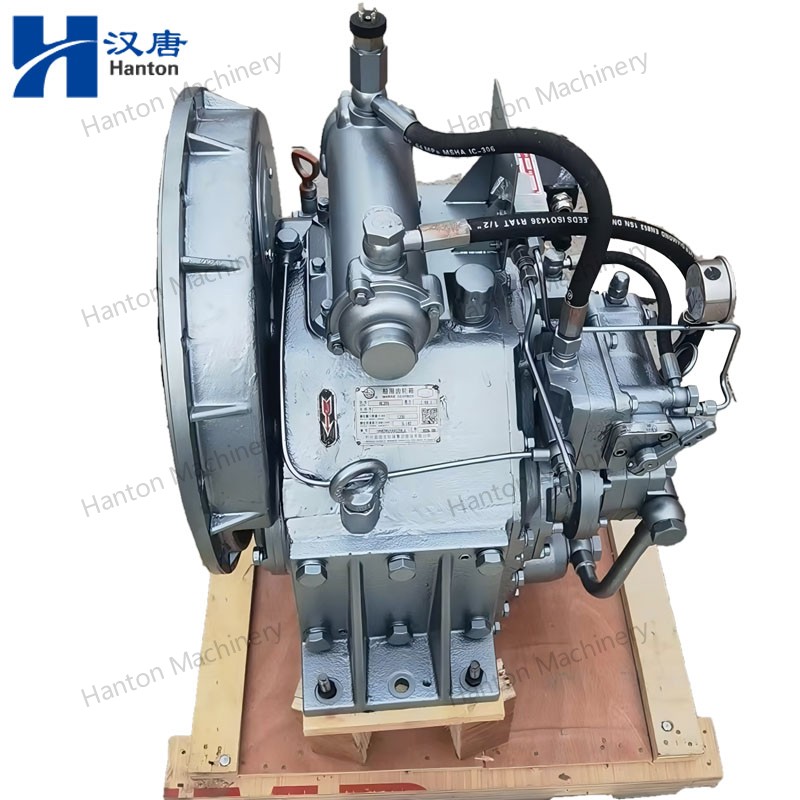

HC201 800X800 watermark -015 HC201 800X800 watermark -016 HC201 800X800 watermark -017 HC201 800X800 watermark -018 HC201 800X800 watermark -019 HC201 800X800 watermark -020 HC201 800X800 watermark -021
