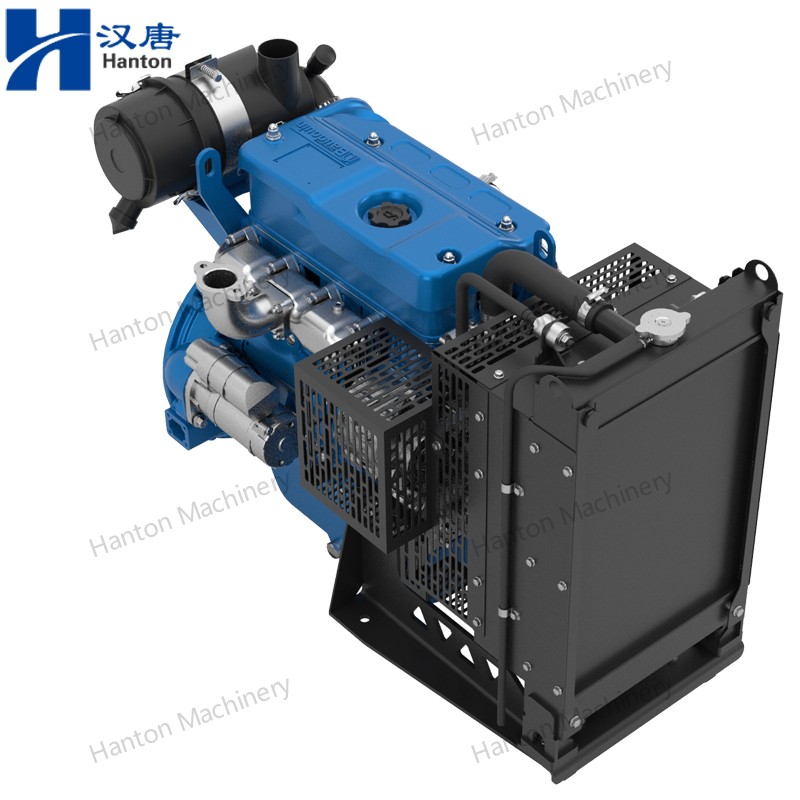

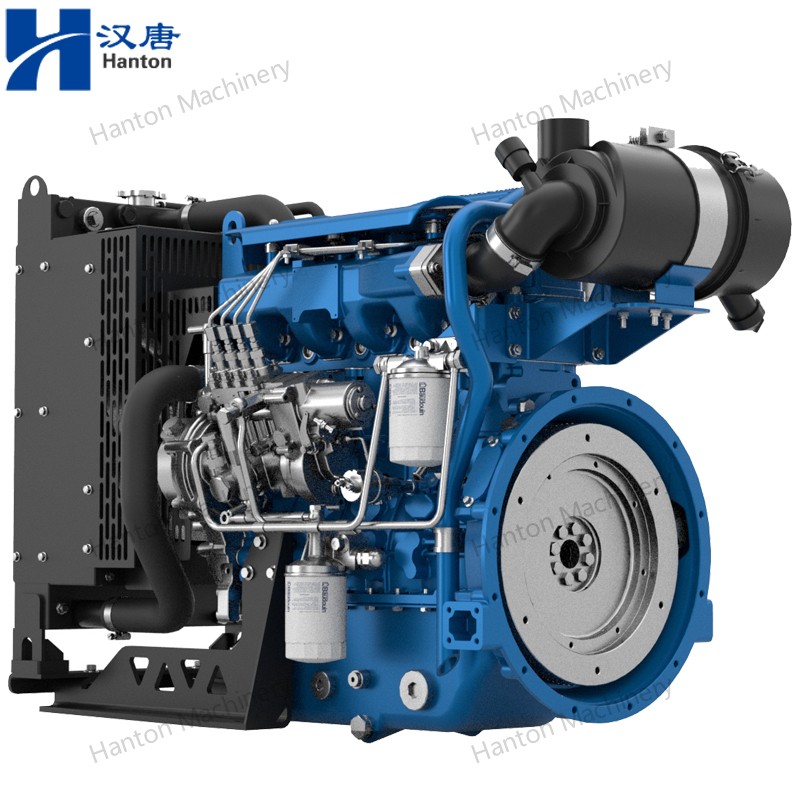

Weichai Baudouin 4M06G Series Diesel Engine for Power Generator Sets

Weichai Baudouin 4M06G Series Diesel Engine for Power Generator Sets, 4 cylinders in line, bore*stroke 89*92mm, 2.3L, net weight 277-285kg, overall dimension 1064*627*786mm, prime power from 18kw 1500rpm to 58kw 1800rpm, standby power from 20kw 1500rpm to 63kw 1800rpm;

Model:
4M06G
Brand:
Baudouin
Code:
HM4M06G

Availability:

Quantity:



Inquire Add to Basket

Product Description

Weichai Baudouin 4M06G Series Diesel Engine for Power Generator Sets, with main specifications, in below:

Model	4M06G
Descriptions	water cooling, 4 cylinders inline
Ignition Order	1-3-4-2
Bore * Stroke	89 * 92mm
Displacement	2.3 L
Rated Speed	1500rpm							1800rpm
Prime Power [kw]	18	23	30	37	44	48	23		27	37	43	53	58
Prime Power [hp]	24	31	41	50	60	65	31		37	50	58	72	79
Standby Power [kw]	20	25	33	41	48	53	25		30	41	47	58	63
Standby Power [hp]	27	34	45	56	65	72	34		41	56	64	79	86
Dry Weight [kg]	277 - 285
Dimension [mm]	1064 * 627 * 786
Fuel System	Mechanical or common rail

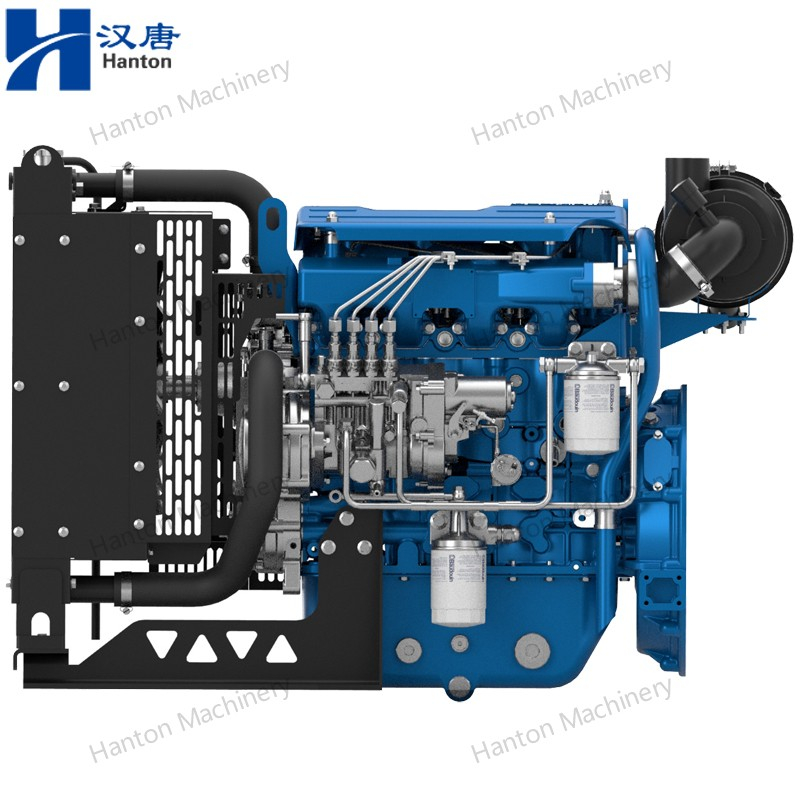

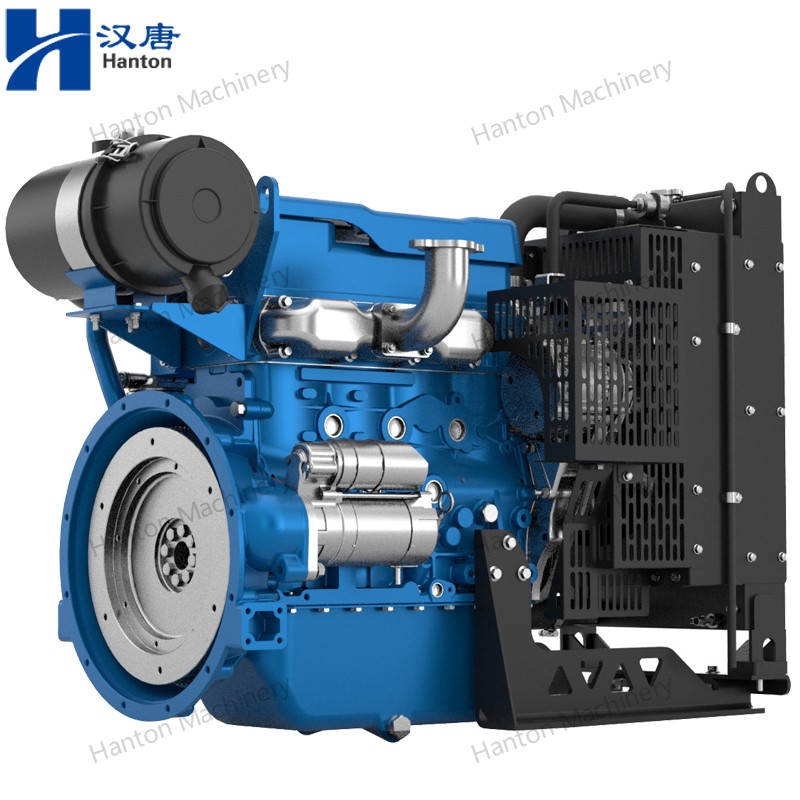

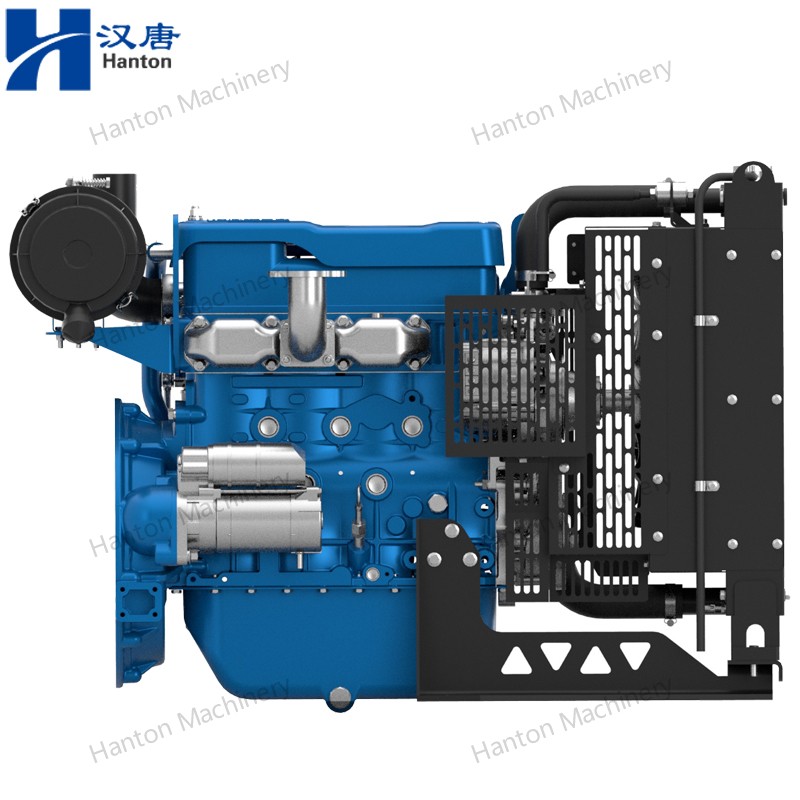

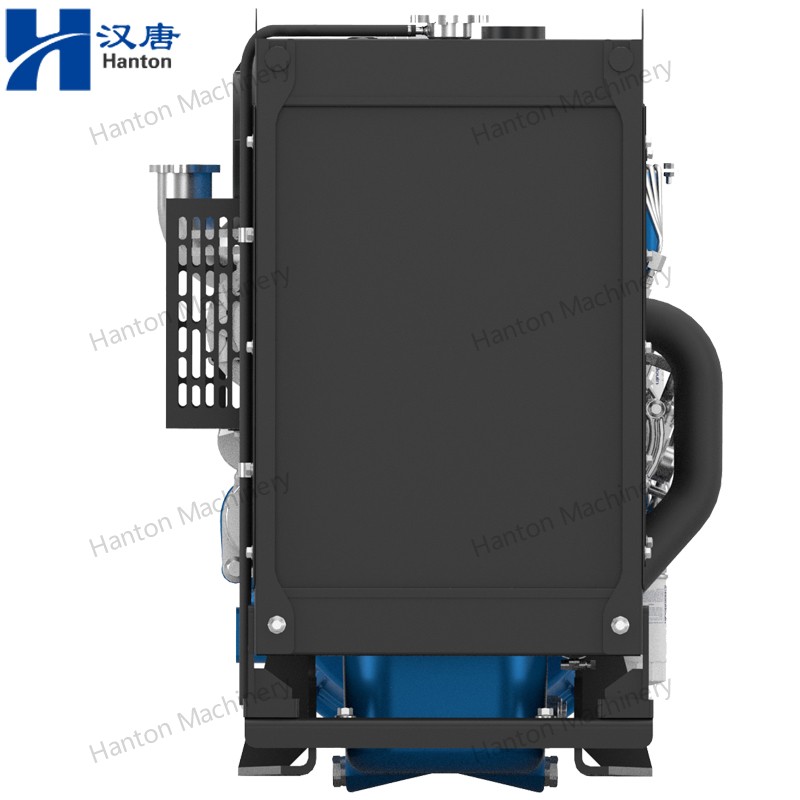

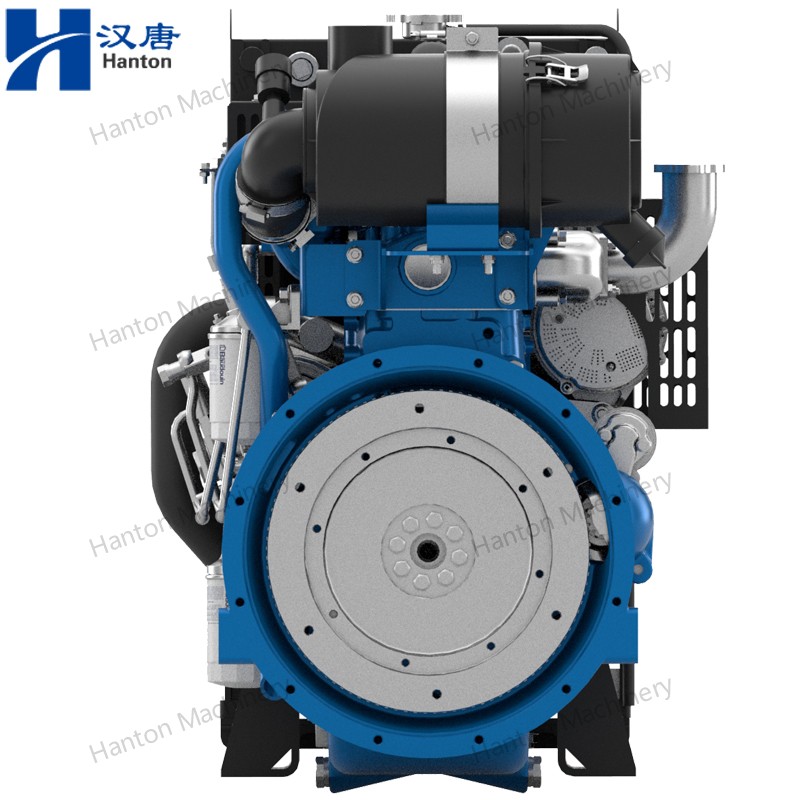

4M06G 800X800 watermark -001 4M06G 800X800 watermark -002 4M06G 800X800 watermark -003 4M06G 800X800 watermark -004 4M06G 800X800 watermark -005 4M06G 800X800 watermark -006

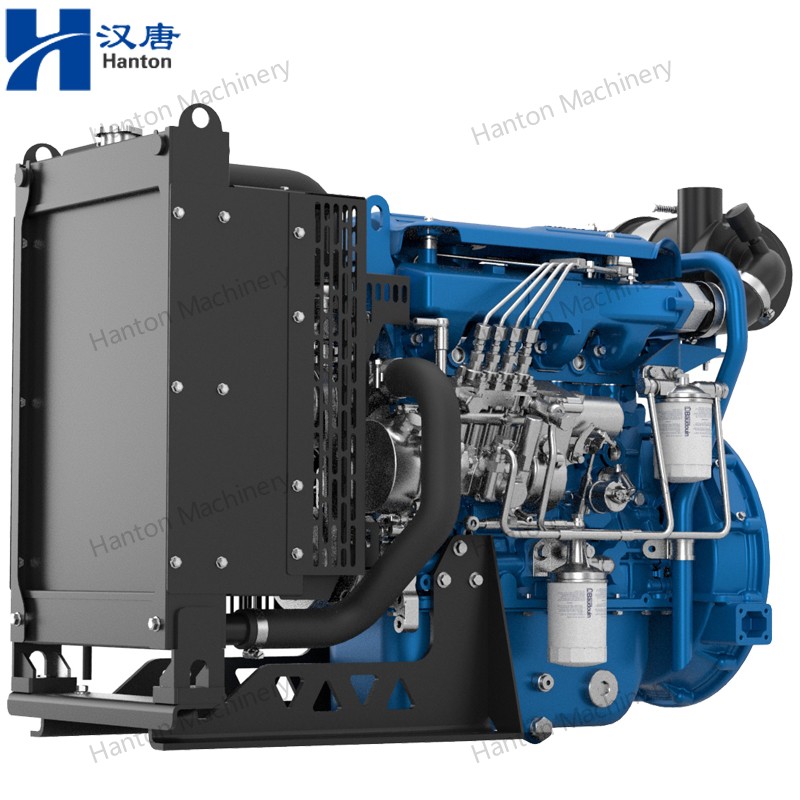

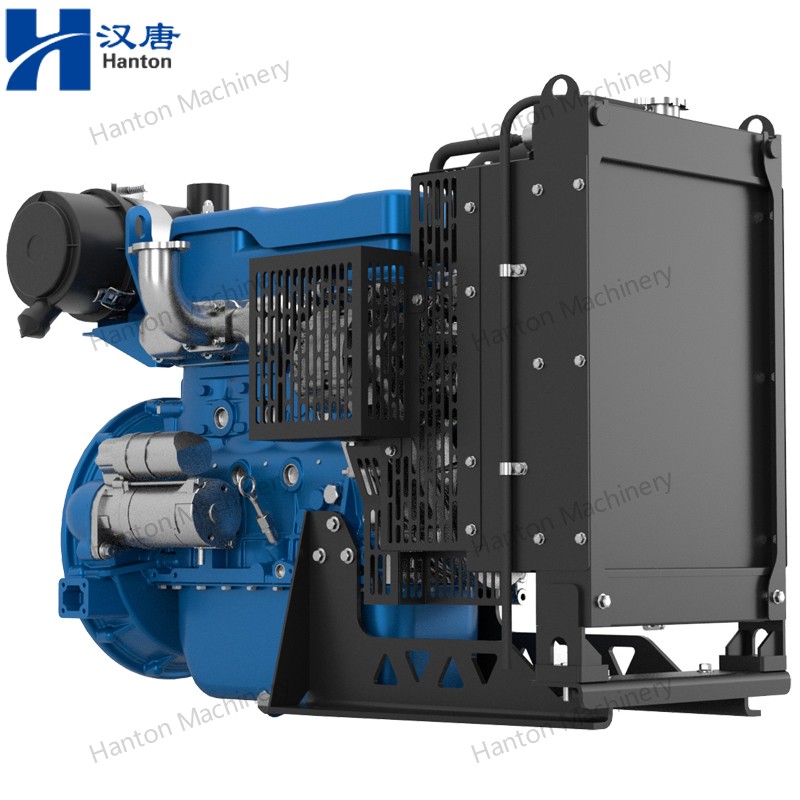

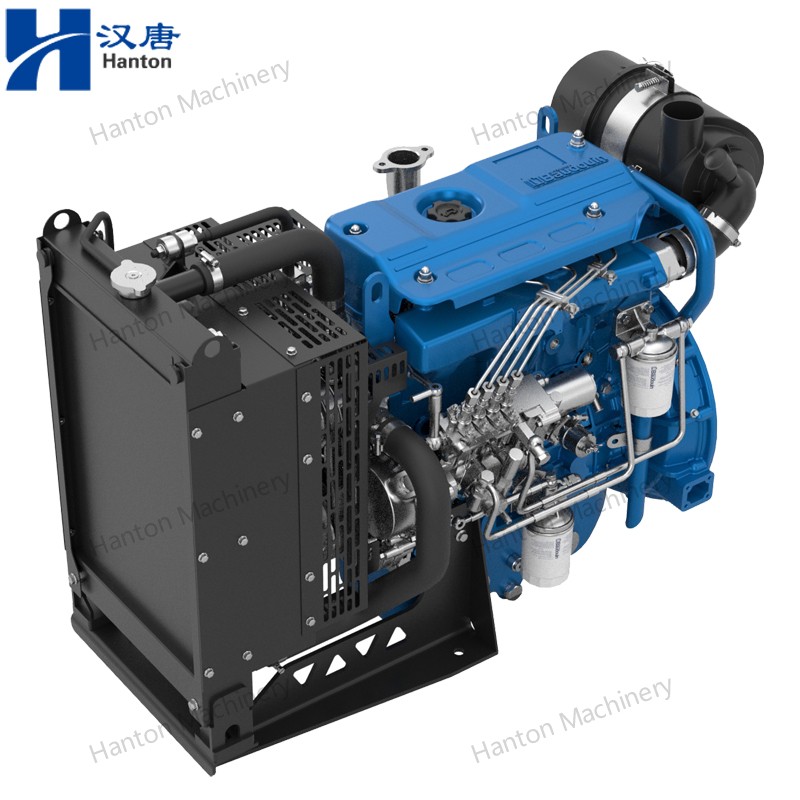

4M06G 800X800 watermark -007 4M06G 800X800 watermark -008 4M06G 800X800 watermark -009 4M06G 800X800 watermark -010
