Perkins Diesel Engine 404D-22T for Agriculture Tractor

Perkins Diesel Engine 404D-22T for Agriculture Tractor, GP83622R, 44.7kw 2800rpm.

Model:
404D-22T
Brand:
Perkins
Code:
HM404D22T

Availability:

Quantity:



Inquire Add to Basket

Product Description

Perkins Diesel Engine 404D-22T for Agriculture Tractor, with main specifications of Perkins 404D-22 and 404D-22T, in below:

Description
Model	404D-22		404D-22T
Aspiration	Natural aspiration		Turbocharged
Arrangement	Water cooled, 4 cylinders in line
Displacement	2.216L
Bore * Stroke	84 * 100mm
Compression Ratio	23.3:1
Oil Capacity	10.6L
Weight	194kg		218kg
Overall Dimension	839462787mm		854558787mm
Generator Application
Frequency (Hz)	50	60	50	60
Rated Speed (RPM)	1500	1800	1500	1800
Prime Power (KW)	18	21	24	28
Standby Power (KW)	20	23	26	31
Fuel Consumption Rate (g/kw.h)	244	244	239	239
Industrial Application
Rated Speed (RPM)	2800	3000	2800	3000
Rated Power (KW)	32	34	44	45
Peak Torque Speed (RPM)	1800	1800	1800	1800
Peak Torque (N.m)	130	130	185	185
Fuel Consumption Rate (g/kw.h)	240	240	238	238
Idle Speed (RPM)	750

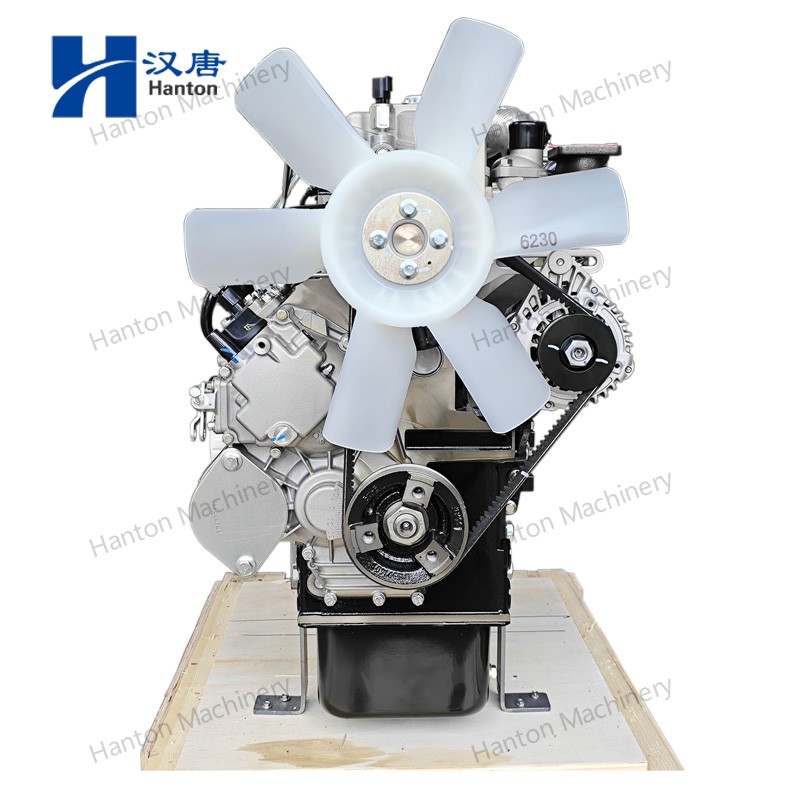

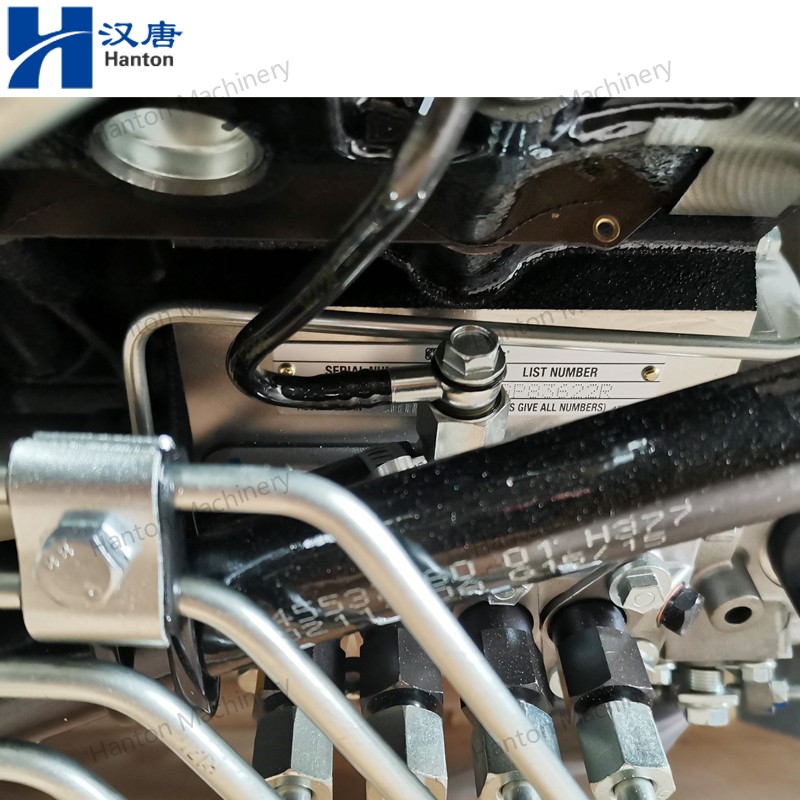

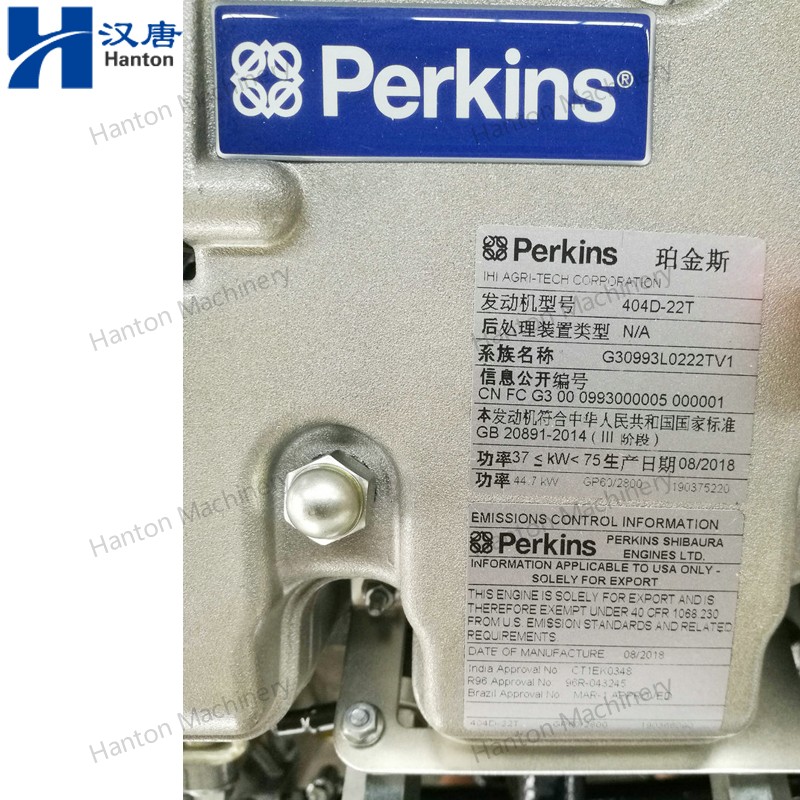

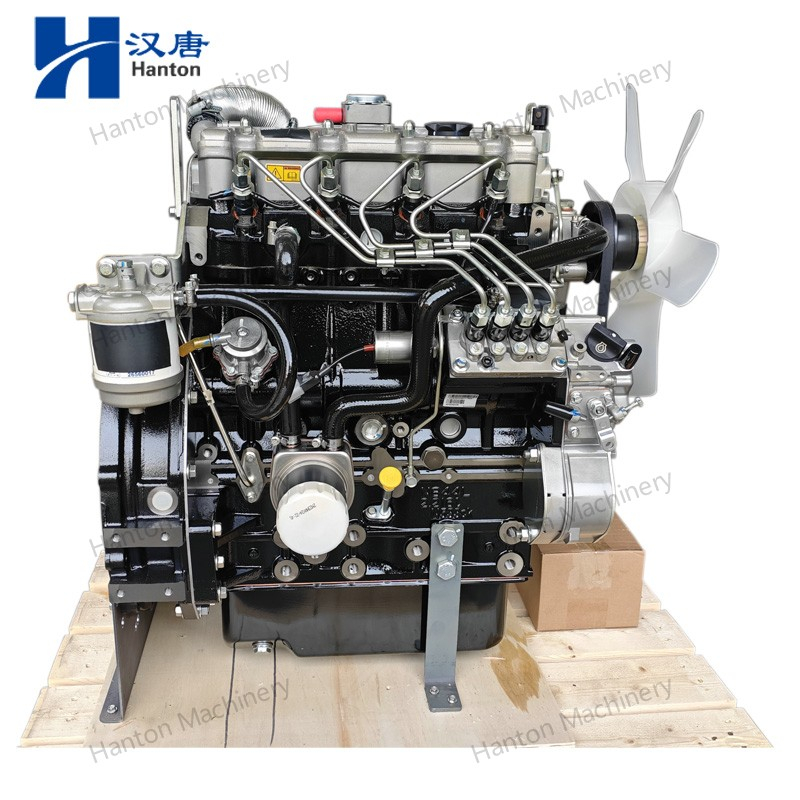

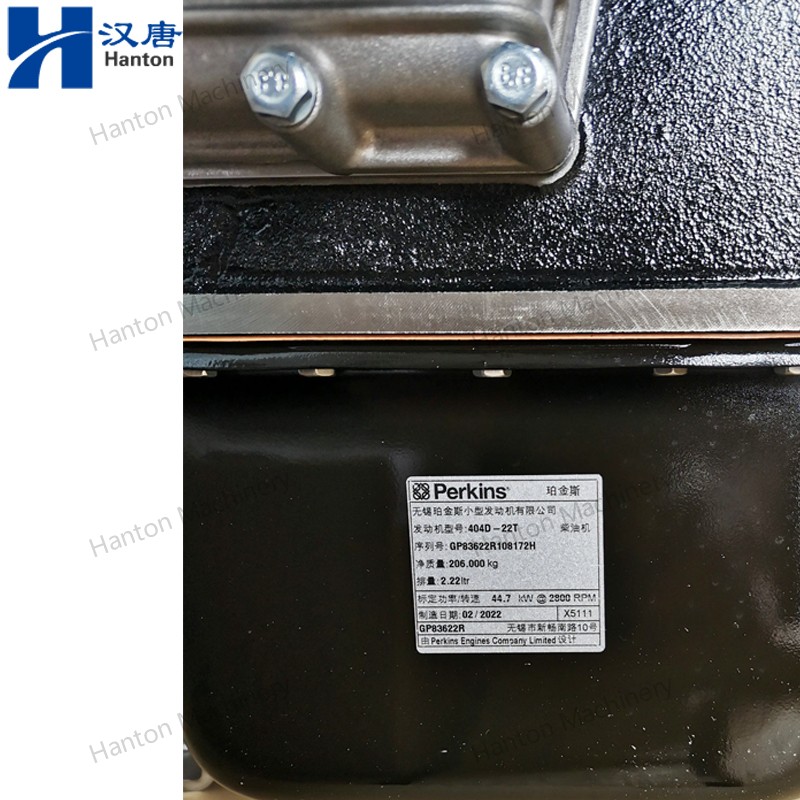

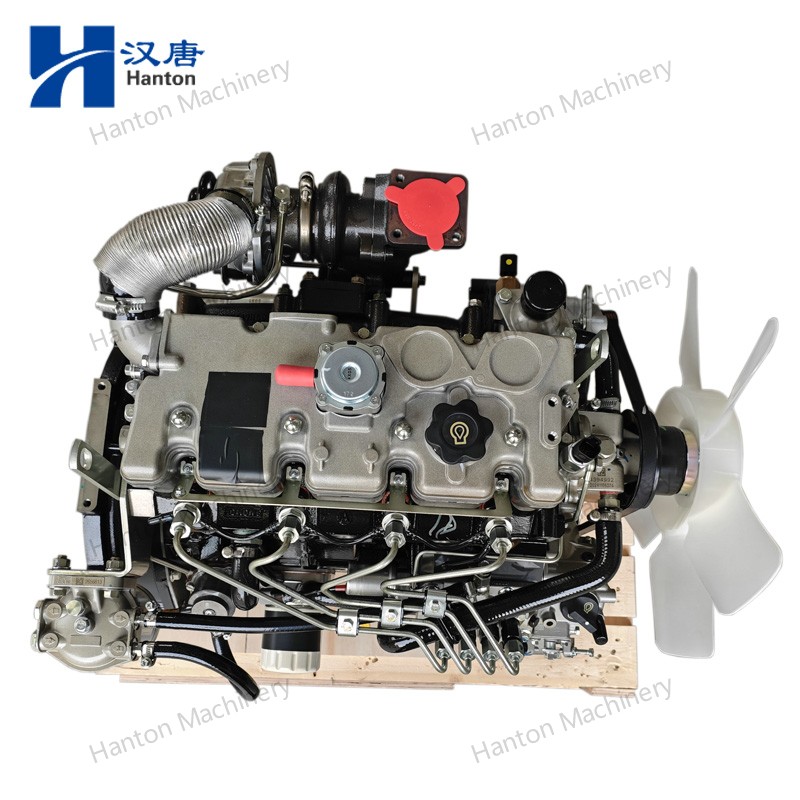

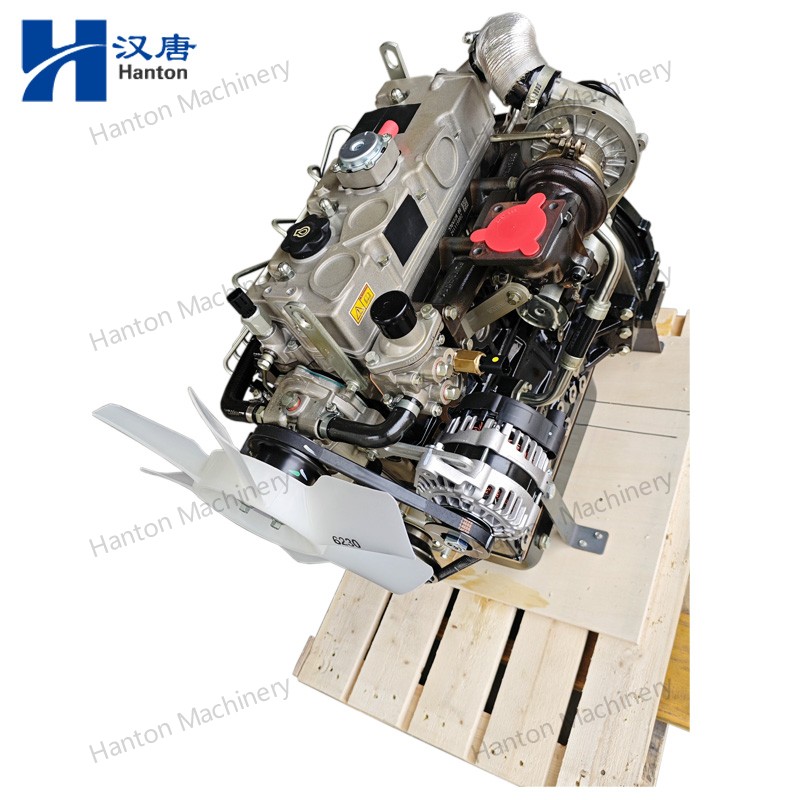

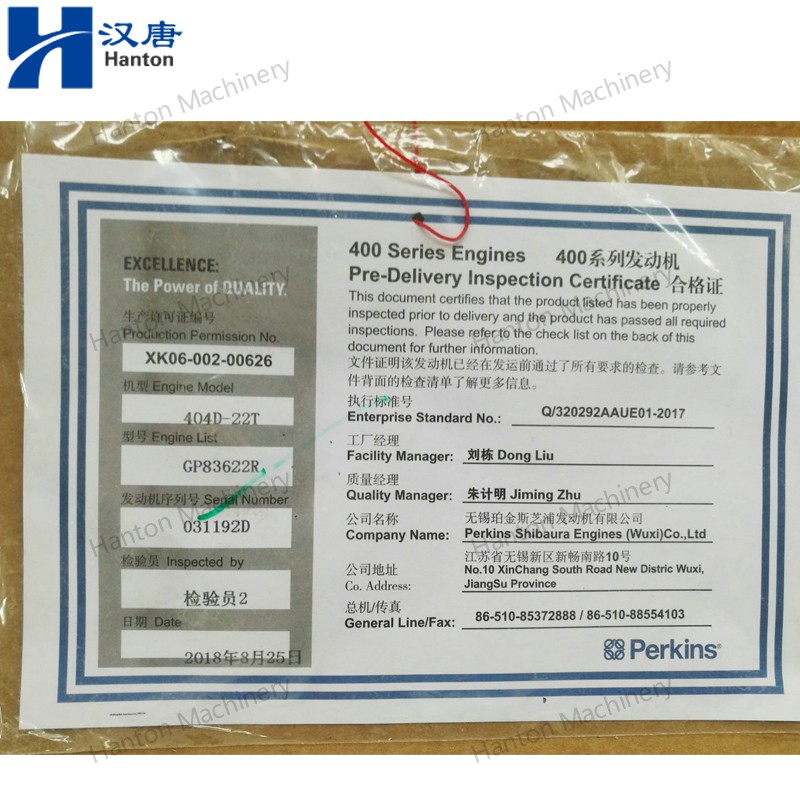

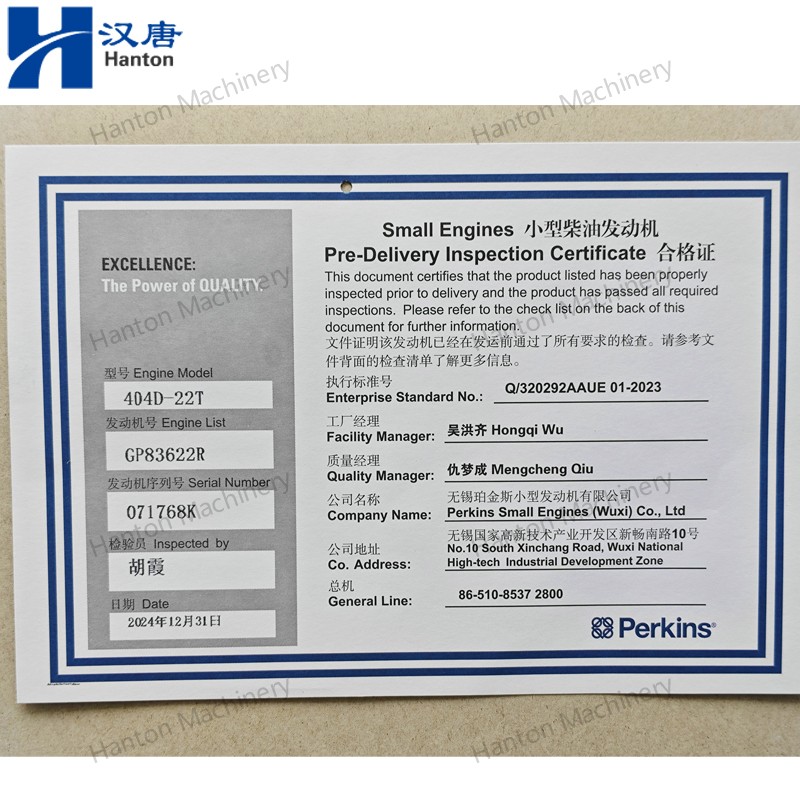

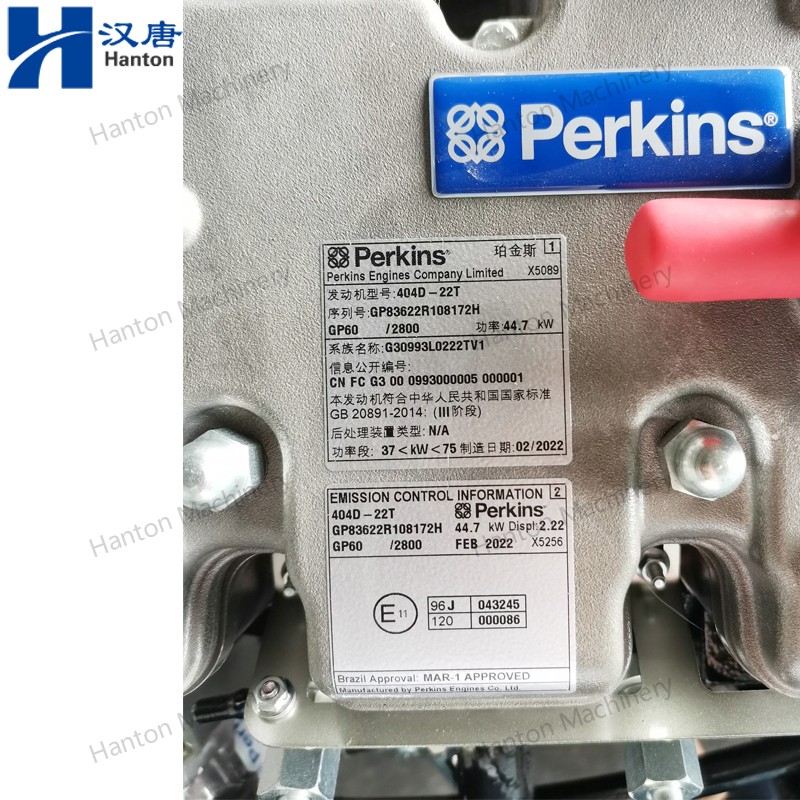

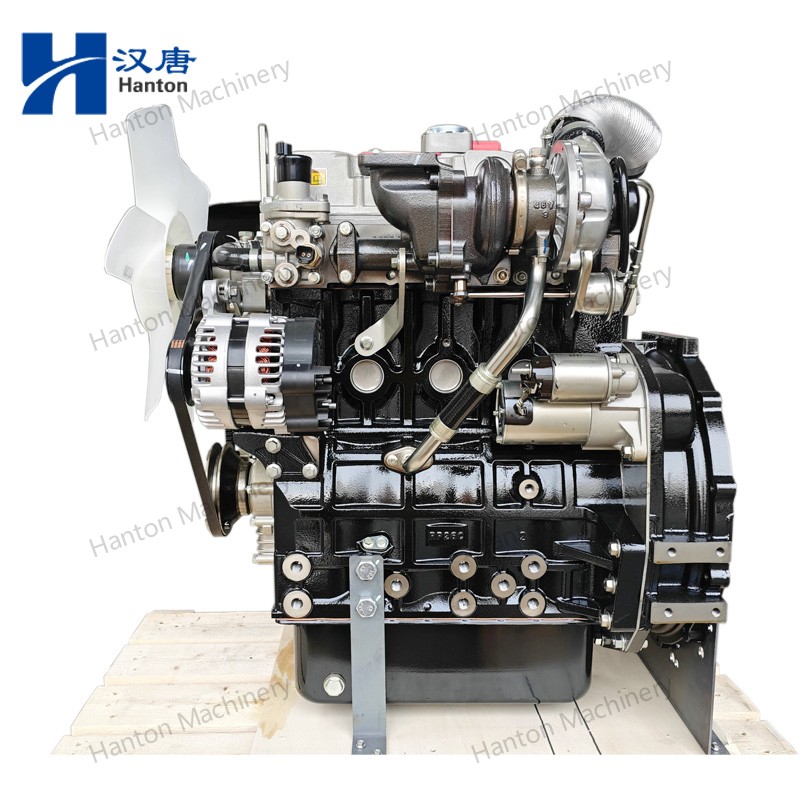

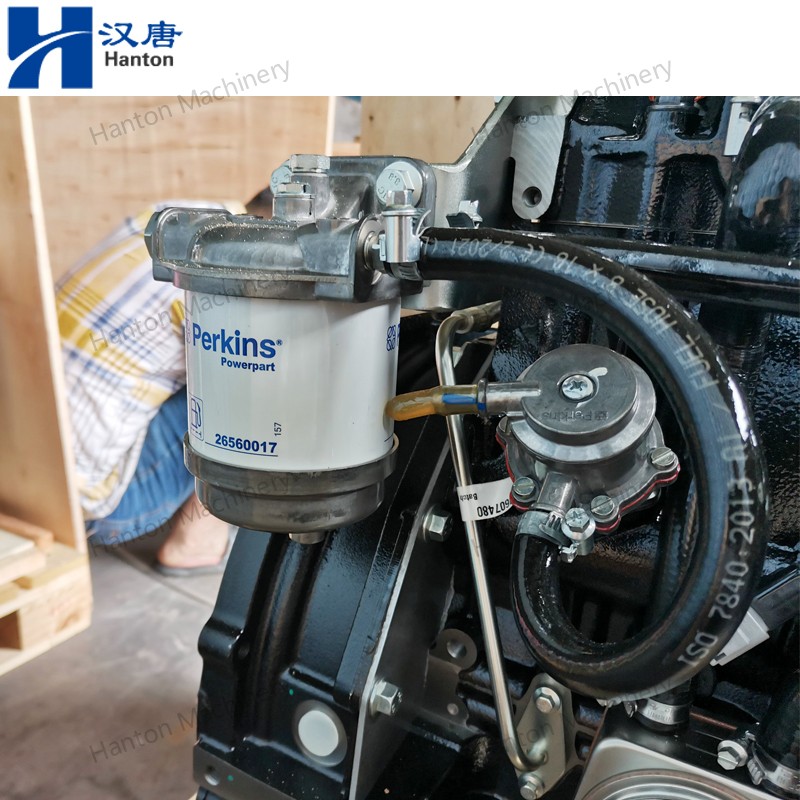

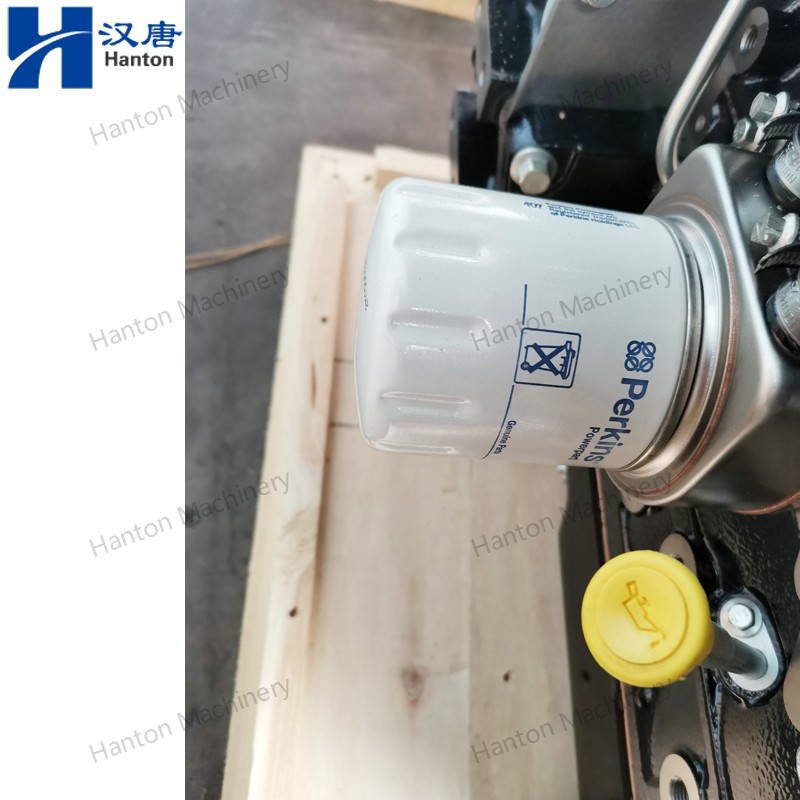

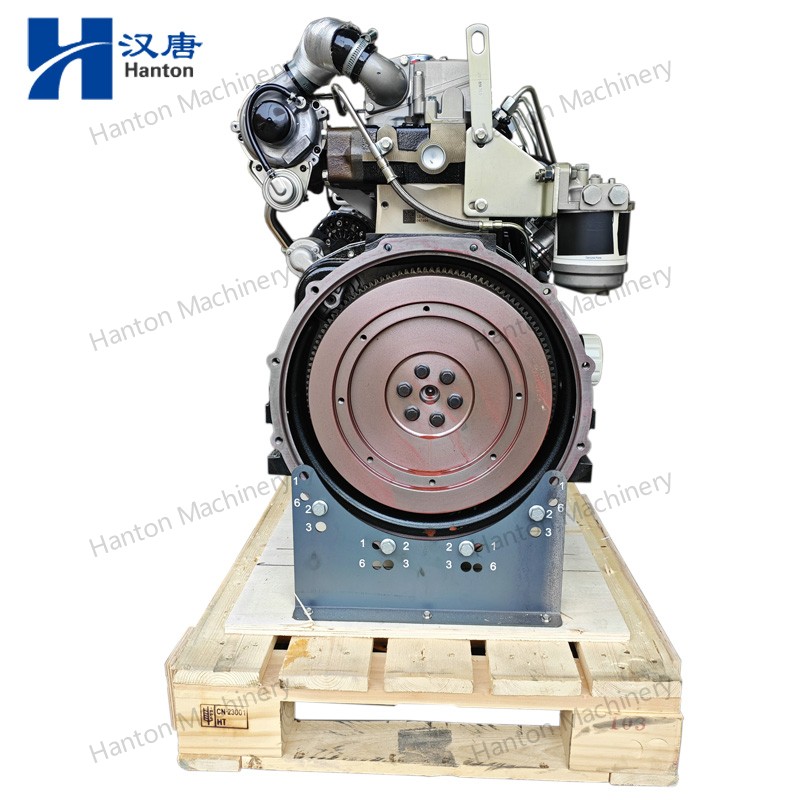

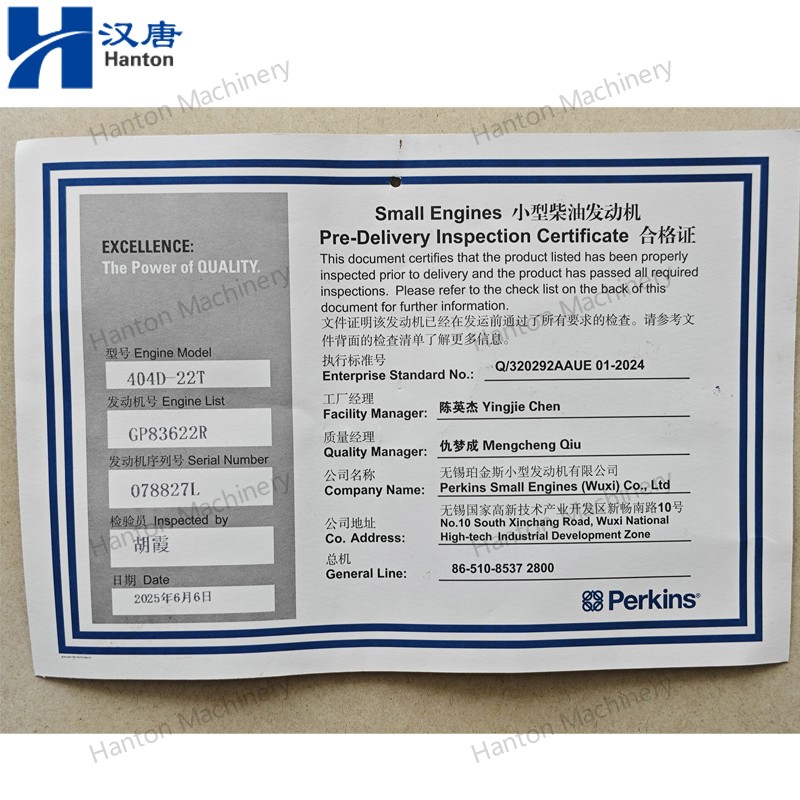

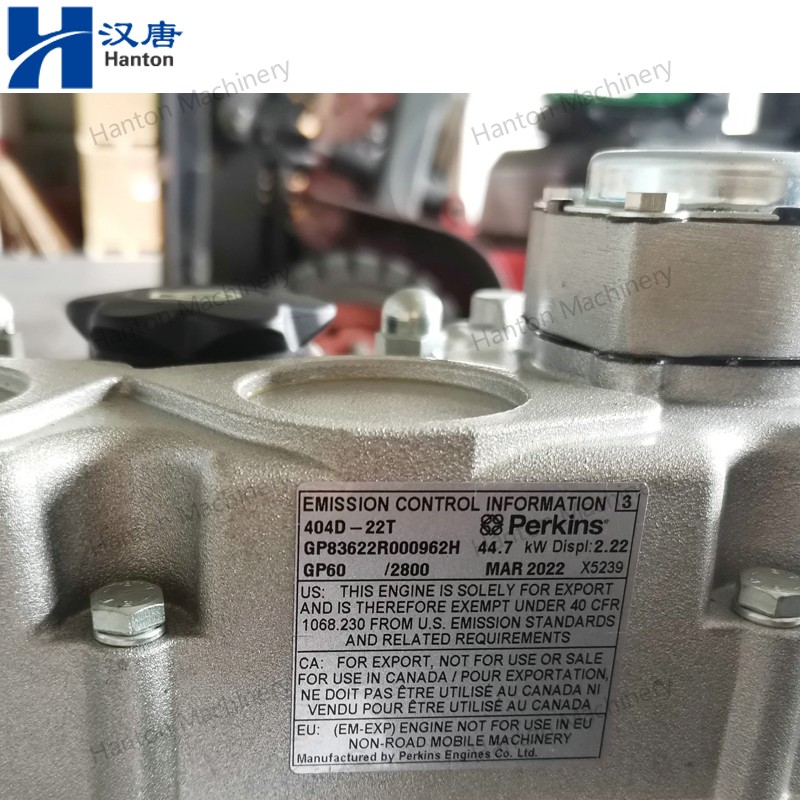

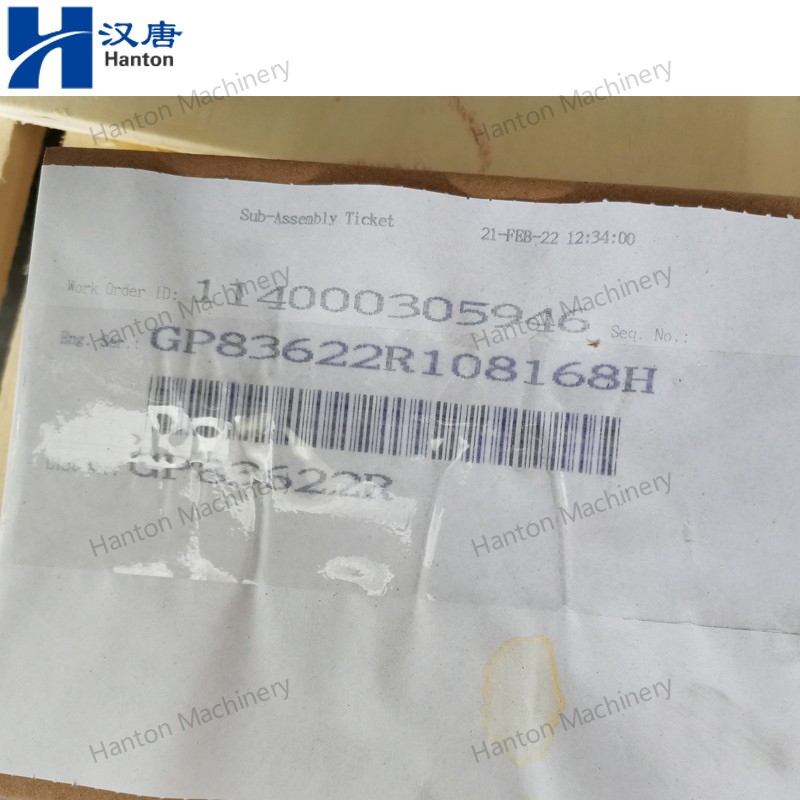

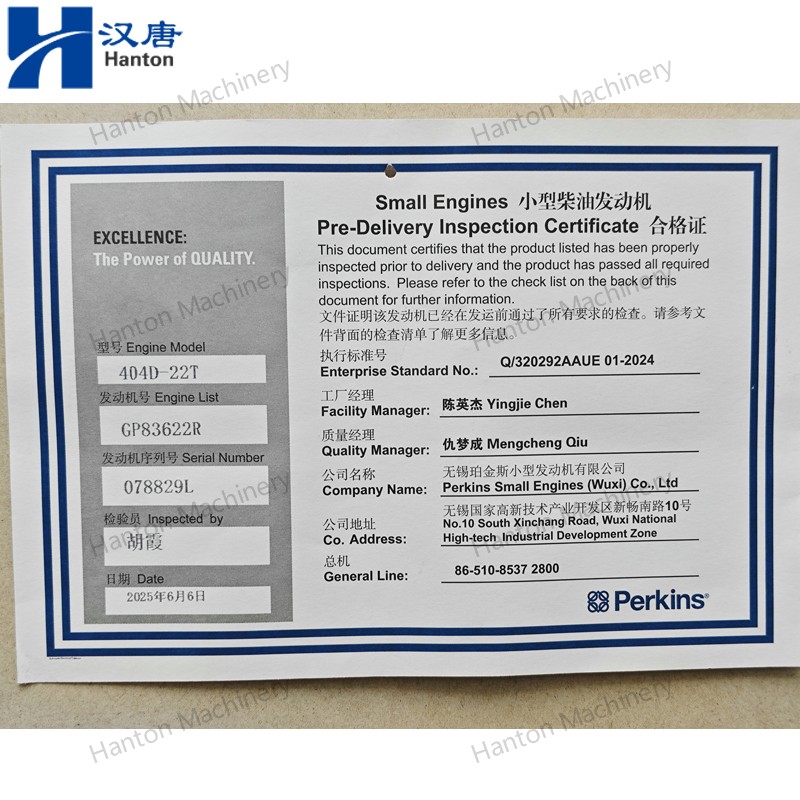

404D22T 800X800 watermark -008 404D22T 800X800 watermark -001 404D22T 800X800 watermark -002 404D22T 800X800 watermark -003 404D22T 800X800 watermark -004 404D22T 800X800 watermark -005
