4JB1T
JMC Isuzu
HM4JB1T
| Quantity: | |
|---|---|

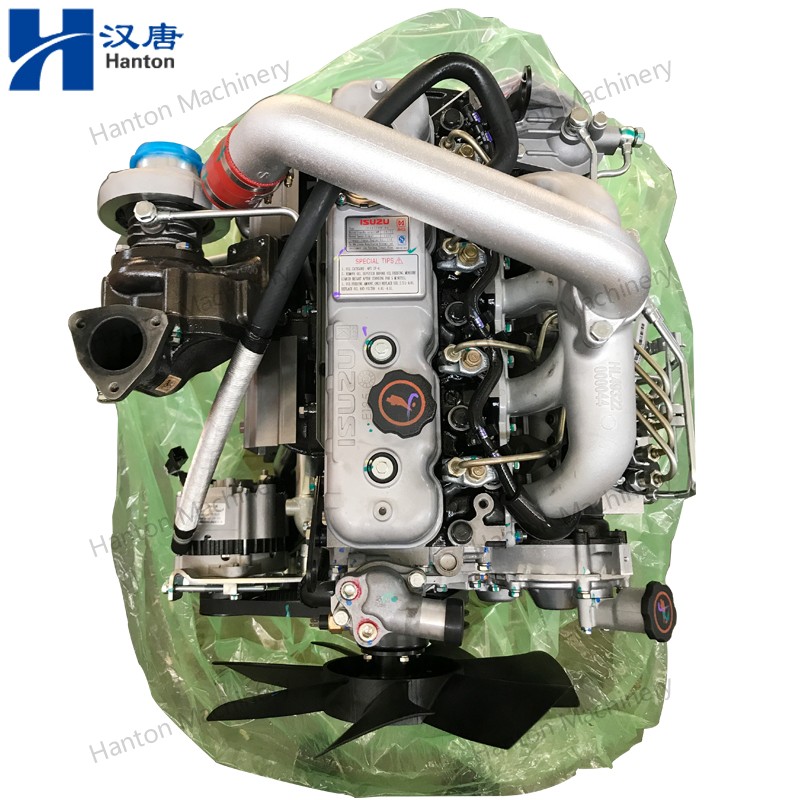

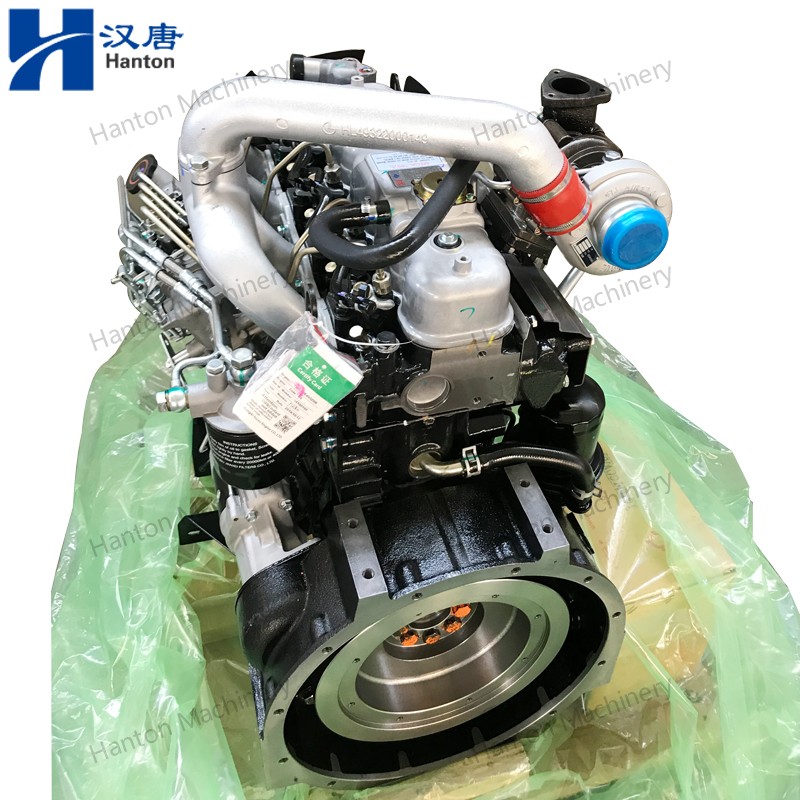

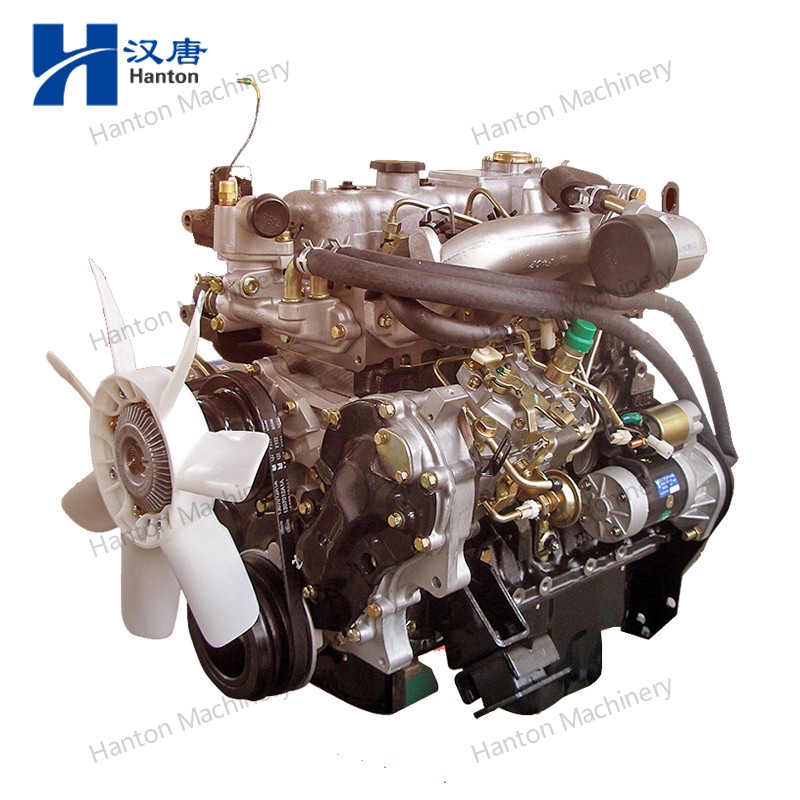

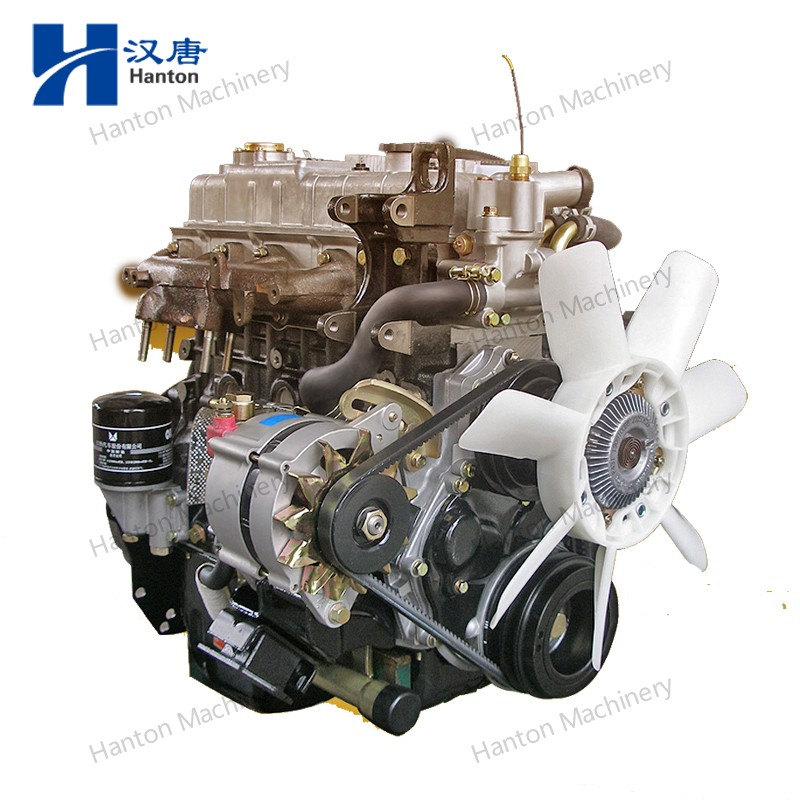

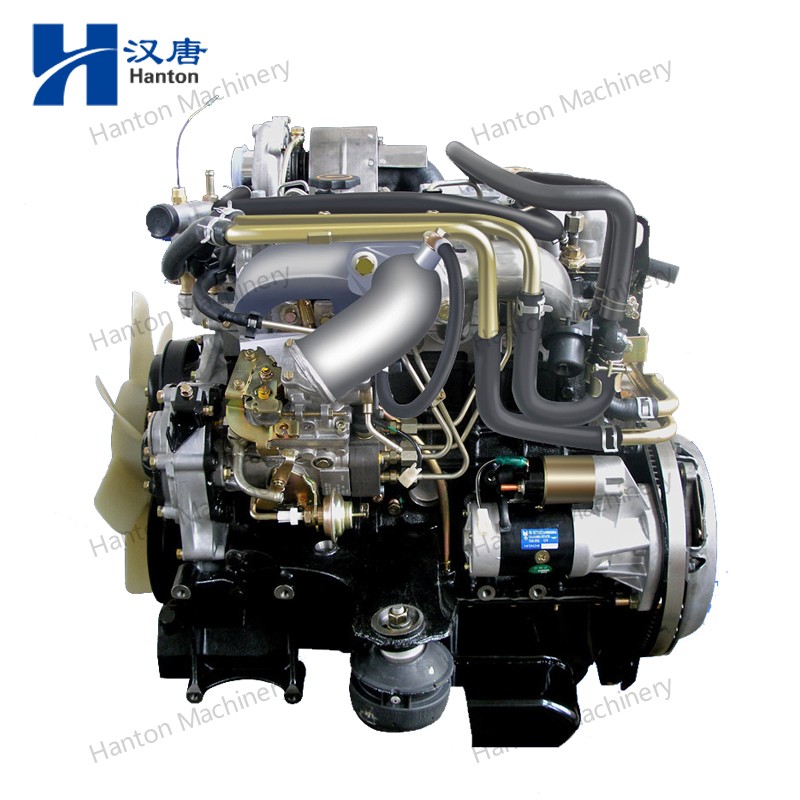

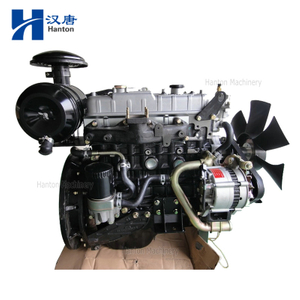

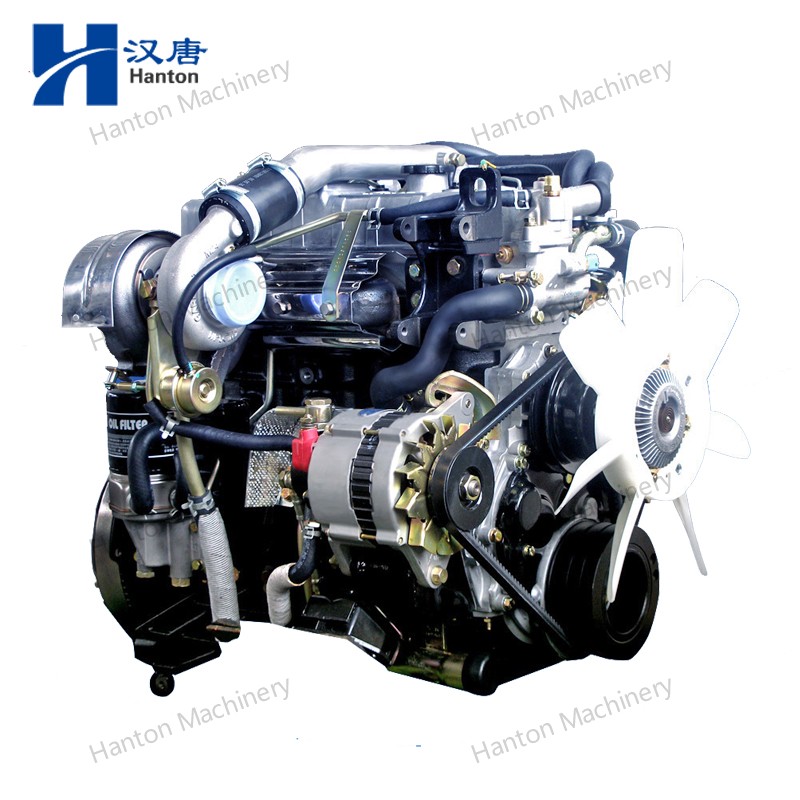

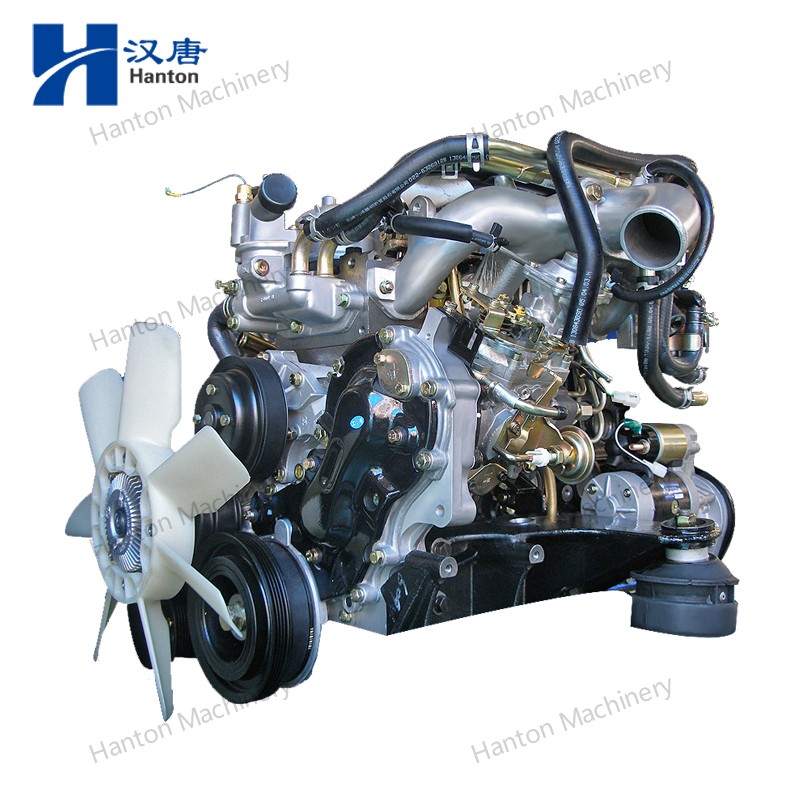

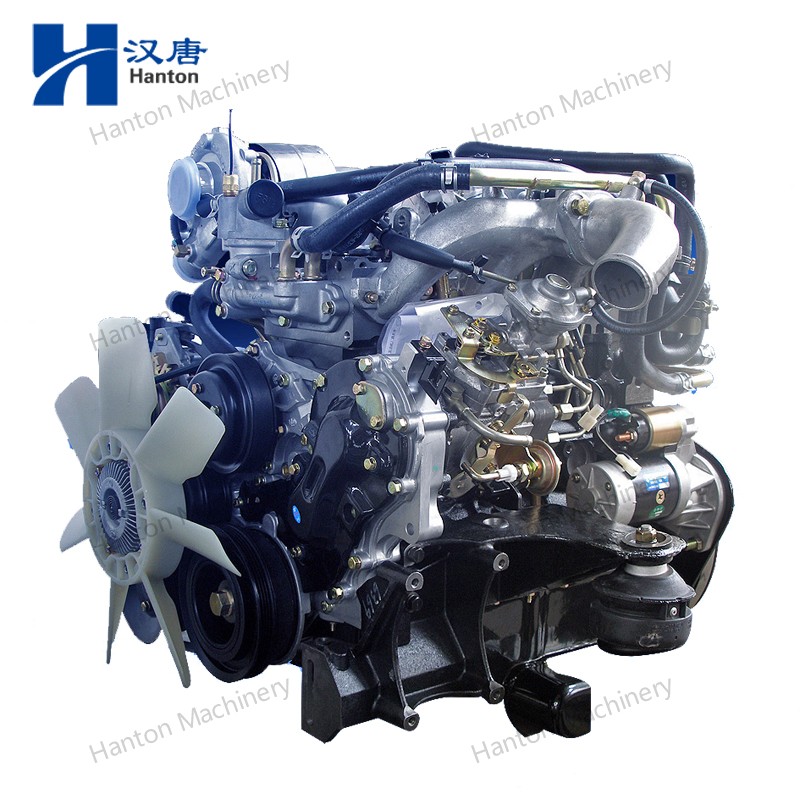

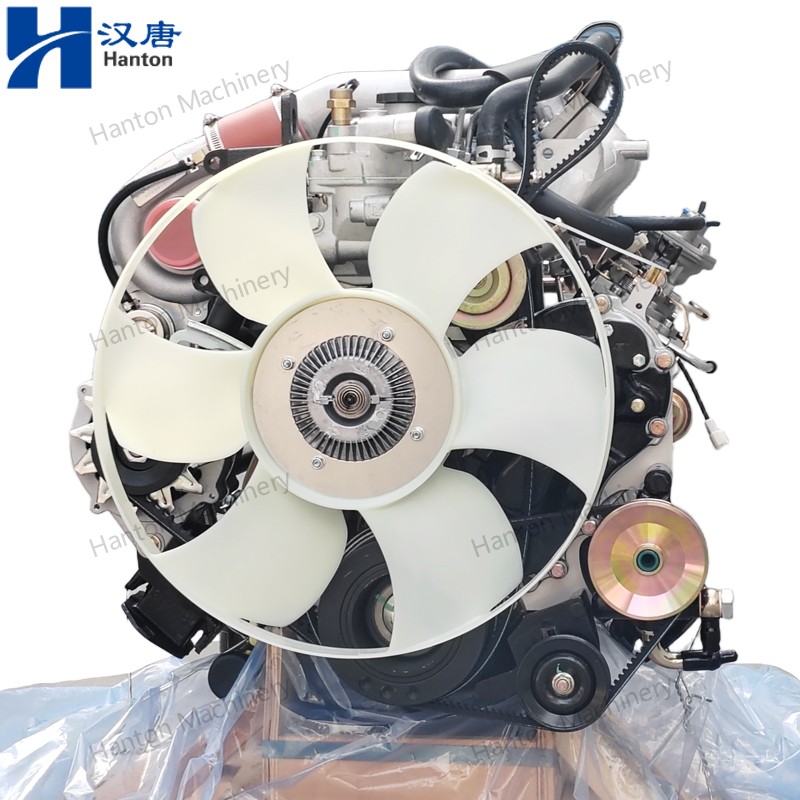

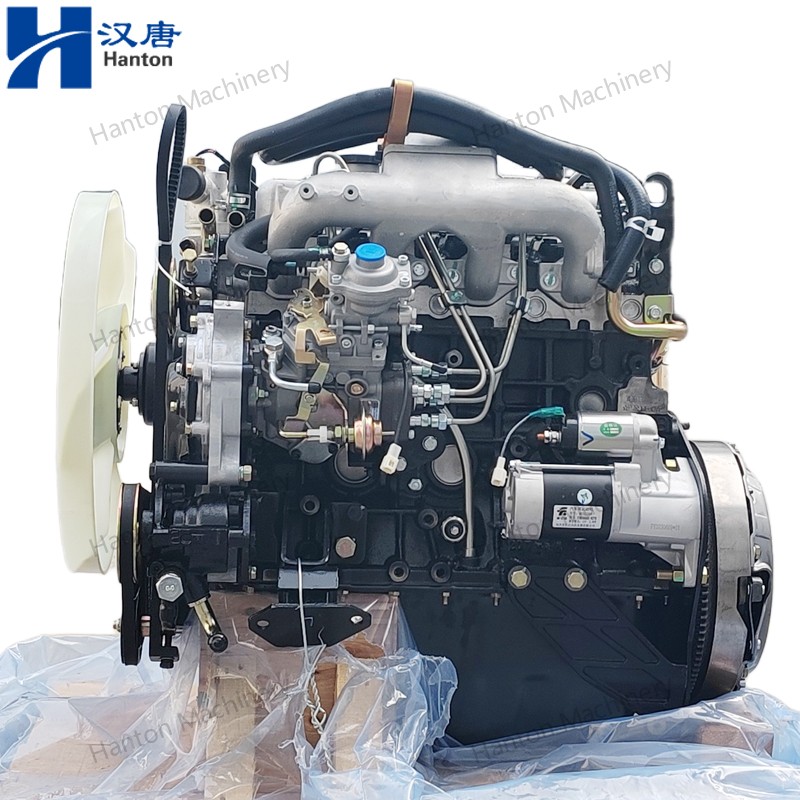

JMC Isuzu JX493 4JB1T Series Diesel Engine for Auto And Truck, with main specifications of Isuzu 4JB1 series, in below:
Model | 4JB1 | 4JB1T | 4JB1TC |
Engine type | 4 cylinders in line, water cooled, direct injection | ||
Aspiration | natural aspiration | turbocharged | turbocharged, aftercooled |
Bore * stroke | 93mm * 102mm | ||
Displacement | 2.771 Liter (169 in3 ) | ||
Compression ratio | 18.2 : 1 | 17.2 : 1 | |
Ignition order | 1-3-4-2 | ||
Power rating | 57kw/77.5hp 3600rpm | 68kw/93hp 3600rpm | 85kw/116hp 3600rpm |
Peak torque | 174N.m 2000rpm | 230N.m 1600-2600rpm | 290N.m 1900-2100rpm |
Idle speed | 850 ± 50rpm | 800 ± 30rpm | 760 ± 50rpm |
Net dry weight | 229kg | 240kg | 250kg |
Overall dimension | 738 * 601 * 682mm | 655 * 571 * 781mm | 760 * 607 * 730mm |
Emission level | Euro II | Euro II | Euro III |
Engine voltage | standard 12V, optionally 24V | ||
