4016-61TRG3
OEM
HM4016-61TRG3
| Quantity: | |
|---|---|

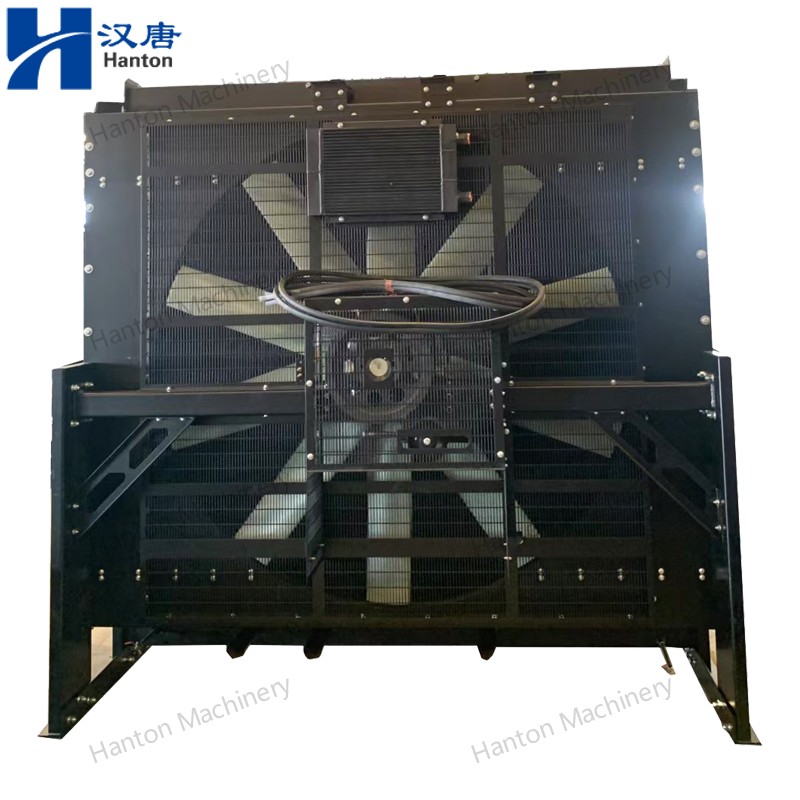

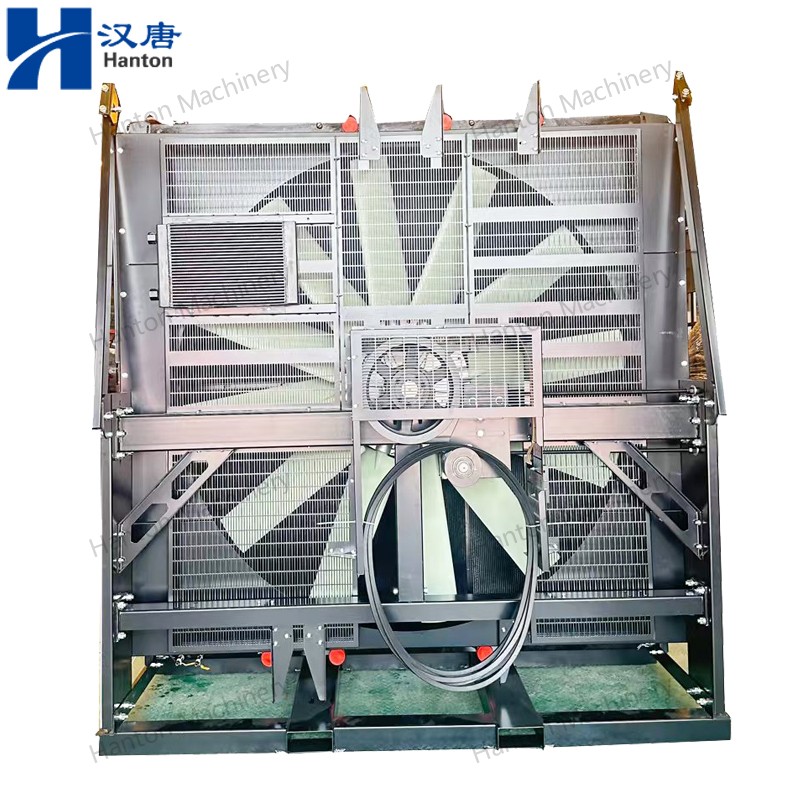

High Quality OEM Radiator for Perkins Engine 4016-61TRG3, with main list of Perkins engine radiators, in below:
SN | Engine | Power | Installation Sizes | Overall Dimension | Water | Weight | Cooling Capacity |
Kw/rpm | mm | Mm | L | kg | m2 | ||
1 | 403D-15G | 12.2kw 1500rpm | Φ350*395 | 689*432*293 | 4.1 | 21 | 11.6 |
2 | 404D-22G | 20.6kw 1500rpm | Φ470*388 | 731*603*295 | 6 | 28 | 14.8 |
3 | 1006TAG2A | 95kw 1500rpm | Φ635*439 | 992*860*365 | 13.8 | 57 | 34.5 |
4 | 1104C-44TA | 79kw 1500rpm | Φ586*414 | 842*716*439 | 12.2 | 56 | 25.3 |
5 | 2206C-E13TAG3 | 368kw 1500rpm | Φ960*818 | 1550*1136*850 | 50.5 | 145 | 126.2 |
6 | 2806C-E16TAG2 | 445kw 1500rpm | Φ1010*818 | 1550*1136*650 | 50.5 | 157 | 126.2 |
7 | 4006-23TAG3A | 658kw 1500rpm | Φ1400*1050 | 2060*1719*1105 | 93.9 | 537 | 258 |
8 | 4006-23TAG3A | 658kw 1500rpm | Φ1400*1050 | 2060*1719*1105 | 93.9 | 540 | 258 |
9 | 4008-30TAG3 | 997kw 1500rpm | Φ1630*1140 | 2210*2119*1107 | 124.5 | 680 | 347.7 |
10 | 4008TAG2A | 899kw 1500rpm | Φ1470*1090 | 2120*2019*1107 | 111.7 | 658 | 246 |
11 | 4008TAG2A | 899kw 1500rpm | Φ1470*1090 | 2120*2019*1107 | 116.4 | 658 | 309.7 |
12 | 4012-46TAG2A | 1331kw 1500rpm | Φ1730*1190 | 2310*2219*1122 | 126.9 | 682 | 308.1 |
13 | 4012-46TAG3A | 1500kw 1500rpm | Φ1730*1190 | 2310*2219*1122 | 132.9 | 685 | 387.9 |
14 | 4012-46TWG2A | 1113kw 1500rpm | Φ1630*1070 | 2130*1919*932 | 87.8 | 496 | 246.7 |
15 | 4012-46TWG3A | 1207kw 1500rpm | Φ1630*1070 | 2130*1919*932 | 92.5 | 500 | 310.7 |
16 | 4016TAG2A | 1766kw 1500rpm | Φ2020*1340 | 2620*2269*1146 | 134.9 | 730 | 368.8 |
17 | 1006TAGE | 128kw 1500rpm | Φ648*448 | 935*765*400 | 14.2 | 65 | 39.5 |
18 | 2806A-E18TAG2 | 584kw 1500rpm | Φ980*865 | 1785*1478*794 | 46.6 | 180 | 157 |
19 | 2506C-E15TAG1 | 412kw 1500rpm | Φ980*818 | 1545*1136*850 | 50.5 | 157 | 126.2 |
20 | 4016-61TRG3 | 1975kw 1500rpm | Φ2020*1350 | 2674*2619*1147 | 291.7 | 980 | 570.7 |
