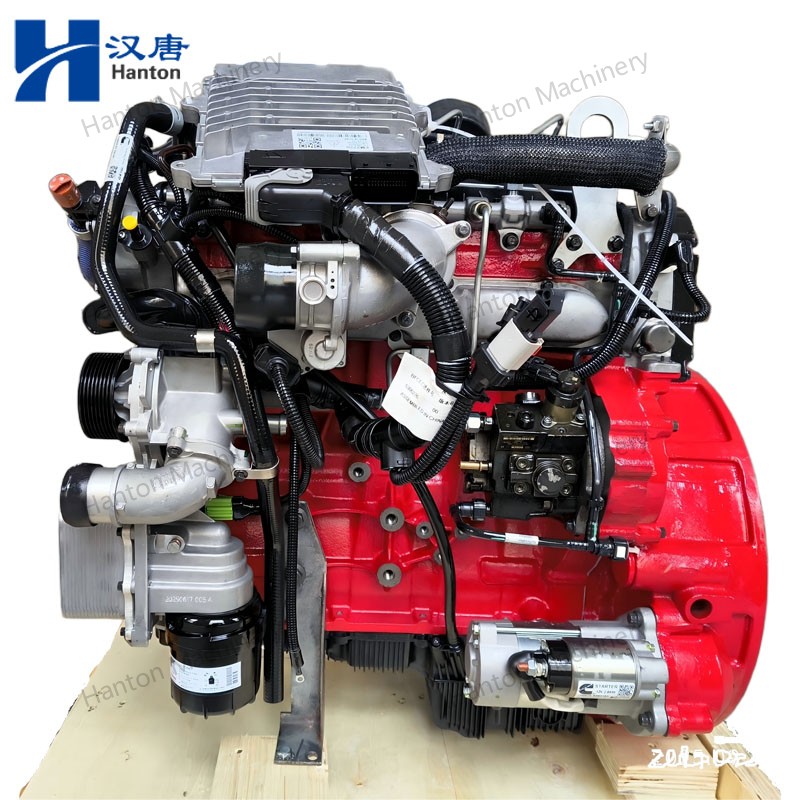

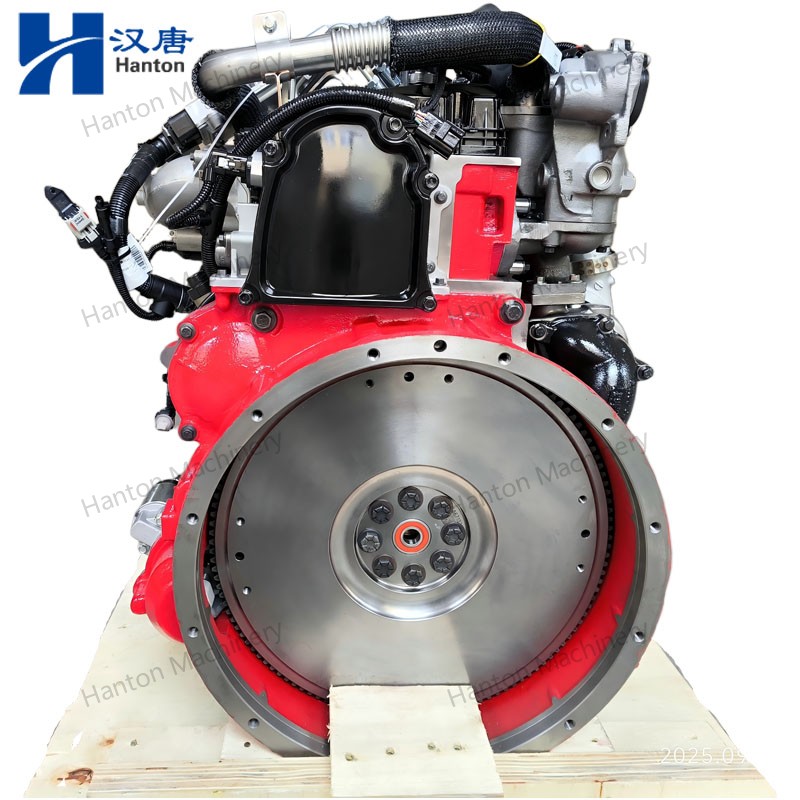

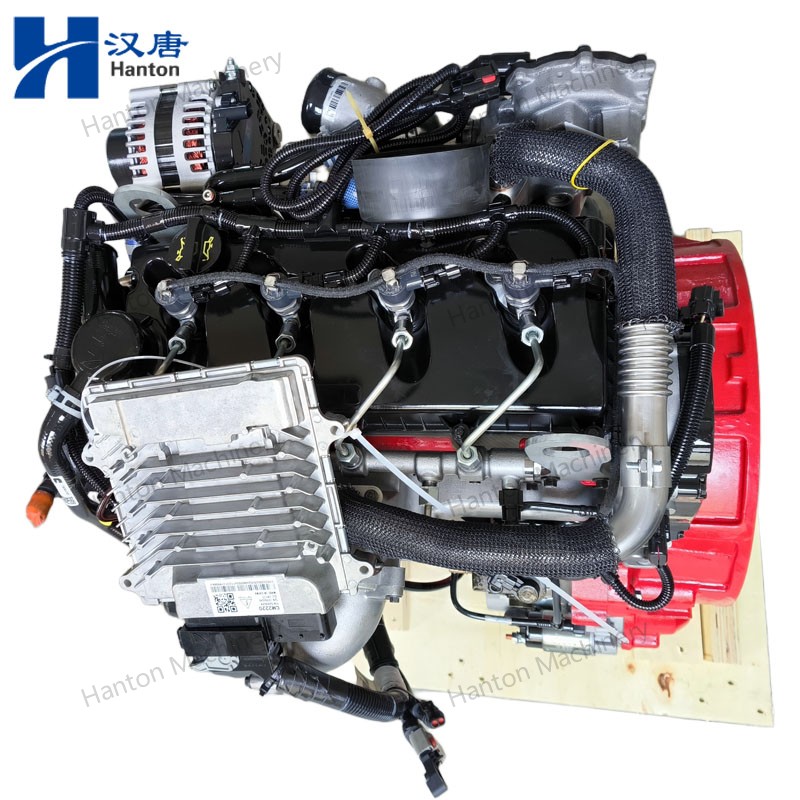

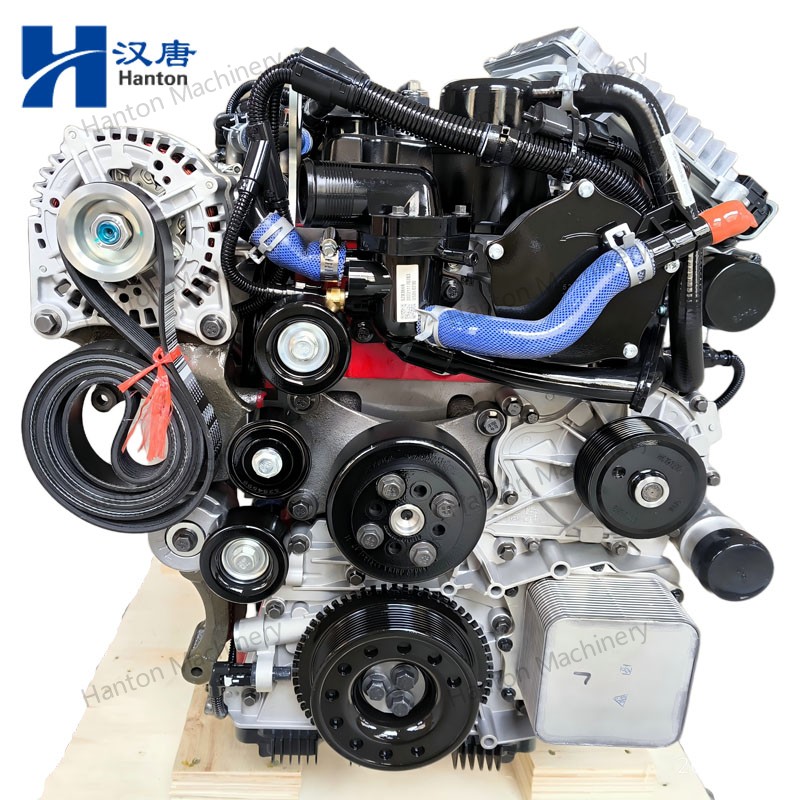

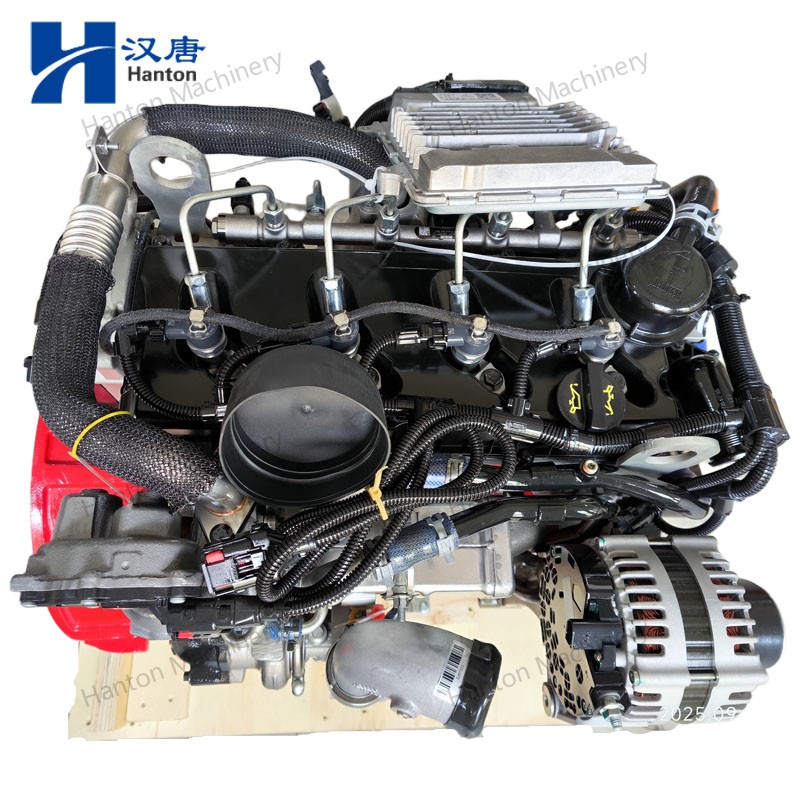

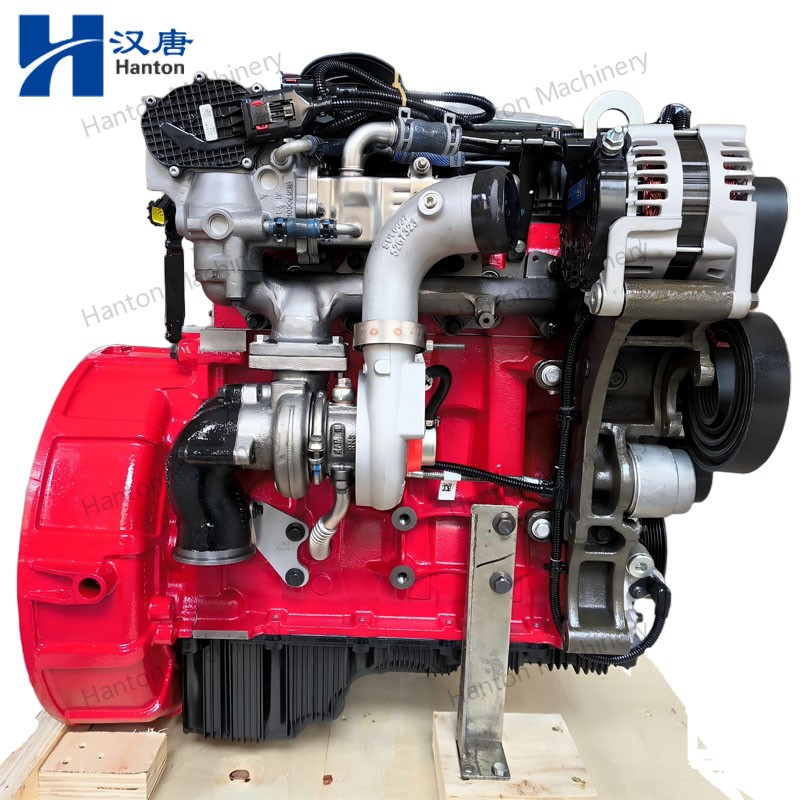

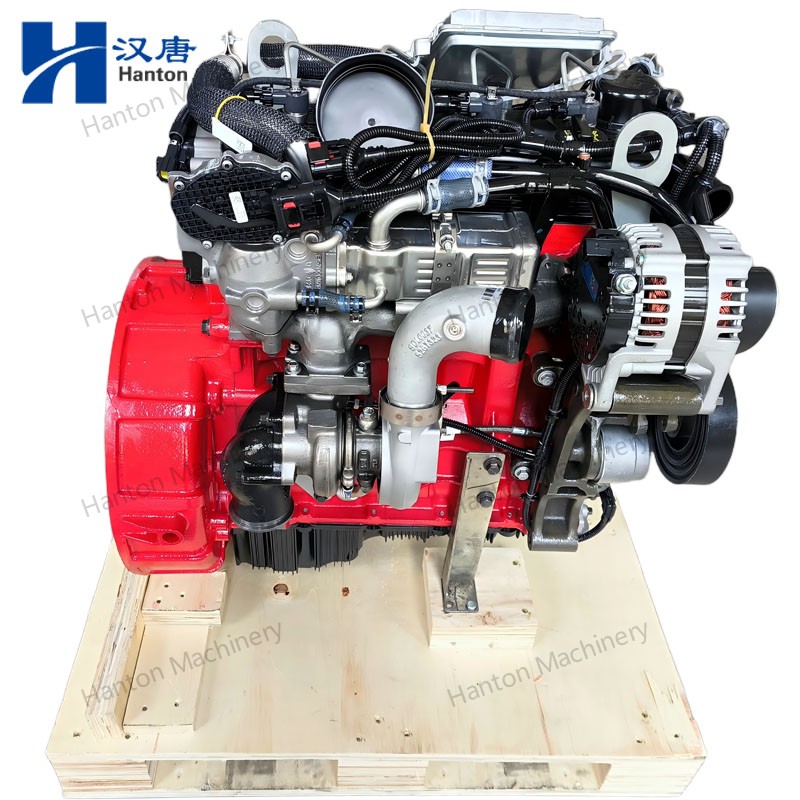

Assembled ISF2.8 Series Diesel Engine For Cummins Light Truck And Bus

Assembled ISF2.8 Series Diesel Engine For Cummins Light Truck And Bus, emission Euro 3, 4, 5, 2.8L, 4 cylinders inline, 94mm x 100mm, with after-treatments EGR, DOC, DPF, SCR, etc, 214kg, dimension 632*659*723mm, MOQ/MPQ = 1 set, most parts from Cummins original, high quality, low price, robust performance, neutral without Cummins nameplate.

Model:
ISF2.8ASSEMBLE
Brand:
None
Code:
HMISF2.8ASSEMBLE

Availability:

Quantity:



Inquire Add to Basket

Product Description

Assembled ISF2.8 Series Diesel Engine For Cummins Light Truck And Bus, with main specification of Cummins ISF series engines and main list of Cummins auto engines, as below:

Model	ISF2.8	ISF3.8
Cylinders	4 cylinders, in line, turbocharged, aftercooled
Bore * stroke	94mm * 100mm	102mm * 115mm
Compression ratio	17.2 : 1

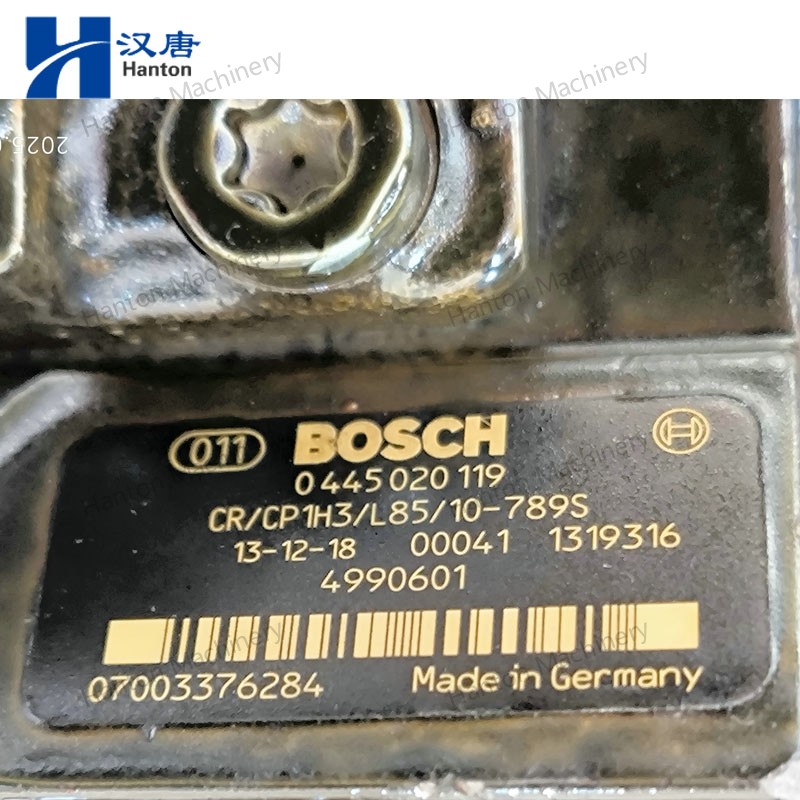

Fuel Injection system	BOSCH high pressure common rail system
Displacement	2.78L ( 170 in³ )	3.78L (231 in³)
Peak torque	360 N.m ( 265.70 lb.ft )	600N.m (442.8 lbf.ft)
Maximum power	161hp (120kw)	168hp (125kw)
Net dry weight	214 kg	280 kg
Overall dimension	632mm * 659mm * 723mm	818mm * 728mm * 786mm
Emission level	Euro III, Euro IV, Euro V
Exhaust treatment	EGR, DOC, SCR

Model	Liter	KW/HP/RPM	KW/HP/RPM	KW/HP/RPM	KW/HP/RPM
ISB3.9	3.9	92/125/2500	103/140/2500	116/160/2500
4ISBE/4ISDE	4.5	103/140/2500	118/160/2500	136/180/2500	140/190/2500
4ISBE/4ISDE	4.5	147/200/2500	152/207/2500
6ISBE/6ISDE	6.7	136/185/2500	155/210/2500	169/230/2500	180/245/2500
6ISBE/6ISDE	6.7	198/270/2500	210/285/2500	221/300/2500	155/210/2300
6ISBE/6ISDE	6.7	169/230/2300	180/245/2300	198/270/2300
ISLE8.9	8.9	201/275/2100	213/290/2100	221/301/2100	228/310/2100
ISLE8.9	8.9	239/325/2100	250/340/2100	258/350/2100	265/360/2100
ISLE8.9	8.9	275/375/2100	294/400/2100
ISL9.5	9.5	215/292/1900	232/315/1900	251/340/1900	268/360/1900
ISL9.5	9.5	282/385/1900	295/400/1900
ISZ	13	392/533/2100
EQB (4BTAA)	3.9	92/125/2800	103/140/2700
EQB (6BTAA)	5.9	118/160/2500	125/170/2500	132/180/2500	140/190/2800
EQB (6BTAA)	5.9	155/210/2500	173/235/2500
6CTAA	8.3	162/220/2200	169/230/2200	180/245/2200	191/260/2200
6CTAA	8.3	206/280/2200	221/300/2200	239/325/2200
6LTAA	8.9	206/280/2200	221/300/2200	239/325/2200	250/340/2200
6LTAA	8.9	264/360/2200	276/375/2200
ISB3.9	3.9	92/125/2500	103/140/2500	116/160/2500
ISF2.8	2.8	80/107/3600	96/129/3600	120/161/3600	96/129/3200
ISF2.8	2.8	110/148/3200
ISF3.8	3.8	104/141/2600	115/154/2600	125/168/2600
ISME	11	226/305/1900	250/340/1900	254/345/1900	269/360/1900
ISME	11	280/380/1900	284/385/1900	283/385/1900	298/400/1900
ISME	11	301/410/1900	306/420/1900	318/430/1900	324/435/1900
